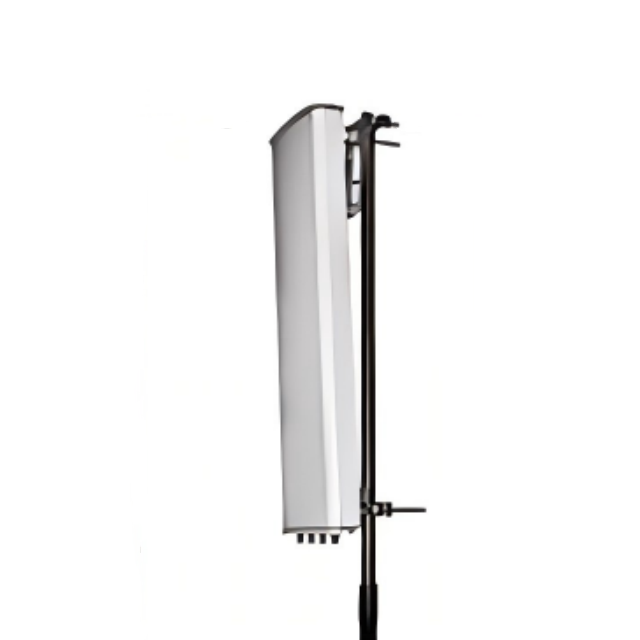

20dBi Dual-Beam 4 Ports 1710-2690MHz Panel Antenna

Product Introduction

① Dual-Beam Intelligent Coverage

Adopting a unique horizontal dual-beam design with beam directions of -30° and +30°, it can simultaneously cover two adjacent areas, effectively improving network capacity and coverage efficiency, making it particularly suitable for high-density user scenarios.

② Four-Port High-Isolation Design

Equipped with four 4.3-10 female ports, port isolation ≥28dB effectively reduces signal interference, ensuring maximum MIMO performance, and improving data transmission rates and network stability.

③ Precision Narrow Beam Technology

An 8°±2° vertical beamwidth combined with a 32°±5° horizontal beamwidth enables precise signal focusing, achieving upper sidelobe suppression ≥16dB and a front-to-back ratio ≥25dB, significantly reducing neighboring cell interference.

④ High-Reliability Structural Design

Adopting a gray FRP radome, the device is weather-resistant, operates in temperatures ranging from -30°C to 65°C, and withstands wind speeds of 36.9m/s, making it suitable for a variety of harsh outdoor environments.

⑤ Convenient Installation and Flexible Adjustment

Supports Φ35-Φ90mm pole mounting, with a mechanically adjustable downtilt angle of 0-10°. Measuring 1200×500×200mm and weighing only 12.5kg, it's quick and easy to install.

Application Scenarios

●Stadiums and Large Events: The dual-beam design provides simultaneous coverage of the stands and the field, providing high-capacity communication services.

●Urban Hotspots: Suitable for capacity offloading in high-density scenarios such as commercial areas and transportation hubs.

●Highway Coverage: The narrow beam characteristics enable directional coverage along the highway, reducing signal crosstalk.

●Rural Wide Coverage: High gain enables long-distance signal transmission, and the dual beams can cover two villages.

●5G Network Deployment: Supports the 2.6GHz frequency band, making it suitable for 5G NR base station deployment.

FAQ

Q: What are the unique beam characteristics of this antenna?

A: The horizontal dual-beam design, with two beams oriented at -30° and +30°, can simultaneously cover two adjacent areas, increasing network capacity.

Q: What network standards does the antenna support?

A: It supports the 1710-2690MHz frequency band and is fully compatible with 4G LTE and 5G NR networks.

Q: What are the connector types? Do I need an adapter?

A: It uses four 4.3-10 female Connectors. If your device's connector doesn't match, you'll need to use the appropriate adapter.

Q: What is the antenna's protection performance?

A: The FRP radome provides excellent protection, operating in temperatures from -30°C to 65°C, and withstanding wind speeds of 36.9m/s, making it suitable for harsh environments.

Q: What precautions should be taken during installation?

A: It supports Φ35-Φ90mm pole mounting. Ensure it is securely mounted. The mechanical downtilt angle is adjustable from 0-10°.

Q: Does it have lightning protection?

A: It supports DC grounding for lightning protection, enhancing safety for outdoor use.
