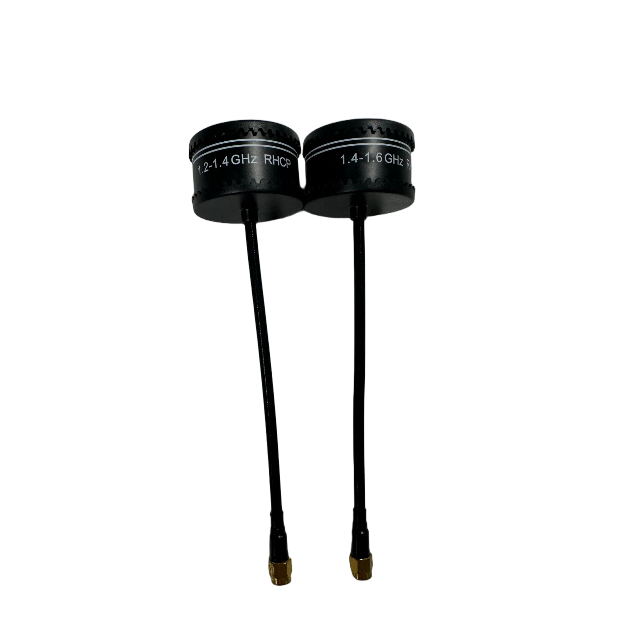

1400-1600MHz 2dBi RHCP drone antenna

Product Introduction

1.The 1400-1600MHz dedicated frequency band is designed to meet the high-frequency communication needs of drones. This band is the preferred frequency for remote control and image transmission for mid-to-high-end drones (such as those used for industrial inspection and professional aerial photography). Compared to lower frequency bands, it offers higher signal transmission rates (supporting 4K HD image transmission) and is less susceptible to interference from consumer wireless devices (such as Wi-Fi and Bluetooth).

2.RHCP circular polarization technology ensures stable signal reception in complex environments. The RHCP design perfectly matches the polarization of drone image transmission and remote control signals. Compared to traditional linearly polarized antennas, it effectively reduces signal reflection, obstruction, and loss, improving signal reception efficiency by over 30%. Even in strong electromagnetic interference or highly dynamic flight scenarios, it maintains a stable connection, resolving the pain point of linearly polarized antennas, which often experience disconnection due to angle deviation.

3.Low VSWR + high impedance matching ensures lossless and efficient signal transmission: VSWR <1.5, far exceeding the industry standard of ≤2.0, significantly reduces signal reflection loss, ensuring over 90% transmission efficiency of 1.6GHz high-frequency signals from the antenna to the drone terminal. The standard 50Ω impedance precisely matches the drone's communication module, further reducing energy waste. Combined with 2dBi gain, it ensures stable coverage of 1.5-3 km while avoiding the narrow beam problem caused by high gain. This balance of coverage and signal strength makes it suitable for medium- and long-range drone operations.

4.Vibration-resistant and weather-resistant, environmentally compliant, reliable in harsh environments: Passing rigorous vibration testing at 10-55Hz, 1.5mm amplitude, and 2 hours, it withstands high-speed drone flight (≤80km/h), takeoff and landing shock, and air turbulence, preventing performance failure caused by loose internal components. Operating temperature range: -40°C to +85°C, with a humidity range of 5% to 95%, it operates stably in high-altitude, freezing mountainous areas, and humid coastal and rainy environments.

5.Compact size and easy installation adapt to drone space constraints: Measuring only ⊘40.5×168mm, it is lightweight and only one-third the size of a typical mineral water bottle. It can be easily installed on the drone's fuselage, wings, or gimbal without affecting the drone's aerodynamic layout or flight maneuverability.

Application Scenarios

●Professional Aerial Photography Drone: Suitable for film and television aerial photography and urban mapping.

●Industrial Inspection Drone: Suitable for power line, oil pipeline, bridge inspection, and other industrial applications.

●Emergency Rescue Drones: Ensure signal connectivity in extreme environments at disaster sites such as earthquakes, floods, and forest fires, transmitting real-time on-site images.

●Agricultural Plant Protection Drones: Suitable for large agricultural plant protection drones. The 1.6GHz frequency band supports signal transmission for multi-drone collaboration, simultaneously receiving route planning instructions from ground base stations and crop growth monitoring data.

●Police Security Drones: Used for urban security patrols and large-scale event security. The 1.6GHz high-frequency band supports long-range (up to 3 km) high-definition surveillance image transmission, and low latency ensures rapid response to emergencies.

FAQ

Q: What frequency range does GL1600-168 cover?

A: It supports the 1400-1600MHz (1.6G) frequency range, ideal for professional drone communication.

Q: What polarization does GL1600-168 use, and why is it important?

A: It uses RHCP polarization, which matches drone signals and reduces signal loss by over 30% in complex environments.

Q: What connector type does GL1600-168 have?

A: It uses an SMA male connector, widely compatible with most professional drone communication modules.

Q: Is GL1600-168 resistant to vibration?

A: Yes, it passes a 2-hour vibration test (10-55Hz, 1.5mm amplitude) to stand drone flight vibration.

Q: What is the VSWR of GL1600-168, and how does it help?

A: Its VSWR is <1.5, minimizing signal reflection loss and ensuring efficient 1.6G signal transmission.

Q: What is the operating temperature range of GL1600-168?

A: It normally operates from -40℃ to +85℃, adapting to extreme cold, heat, and high-humidity environments.

Q: What are the dimensions of GL1600-168?

A: It has compact dimensions of ⊘40.5×168mm, lightweight and easy to install on drones without affecting flight.
