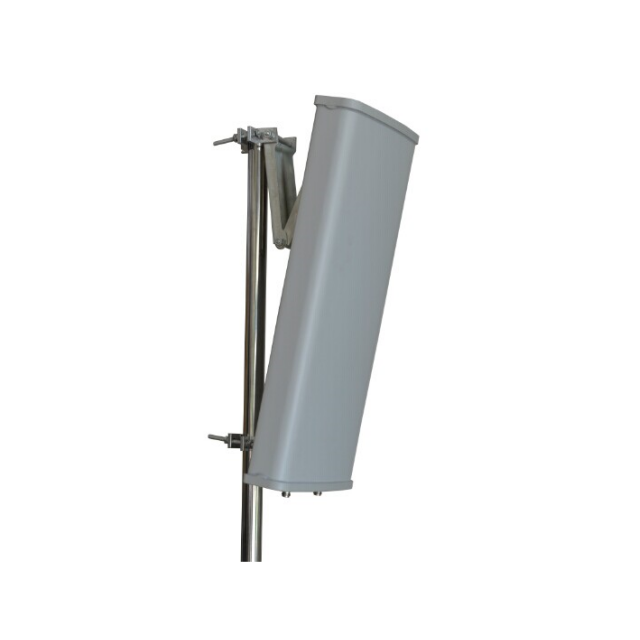

120° Wide Angle Dual polarization panel Antenna for 150-400MHz Systems

Frequency Range：150～400MHz
Gain：5dBi
Vertical polarization antenna
panel antenna
Product description: Ultra-wide coverage angle, multi-purpose tower: With a wide beam design of 120° horizontally and 65° vertically, a single antenna can cover a wide area, reducing the number of base station antennas an
INQUIRY

P/N	GL120DP05
Freq-MHz	150～400
Band Width-MHz	20
Gain -dBi	5
Beam Width-°	E:65 H:120
F/B Ratio-dB	≥15
V.S.W.R	≤2.0
Impedance-Ω	50
Polarization	Vertical
Isolation－dB	--
Max Power-W	100
Lighting Protection	DC Ground
Connector	N female
Dimensions-mm	600*280×125
Weight-Kg	11
Pole Diameter-mm	ф40-90

Product Introduction

1. Ultra-wide Coverage Angle, Multi-purpose Tower: A wide beamwidth design with 120° horizontal and 65° vertical coverage allows a single antenna to cover a wide area, reducing the number of base station antennas and construction costs.

2. Dual Polarization Technology, More Stable Signal: Utilizing a dual polarization design, it effectively suppresses signal interference, improves communication quality, and is suitable for complex environments with multipath propagation.

3. Strong Corrosion Resistance, Long-Term Outdoor Use: The shell and structure have excellent corrosion resistance, making it suitable for highly corrosive environments such as coastal areas and industrial zones, extending its service life.

4. Integrated N-type Female Connector, Easy Installation: Standard N-K type connector, reliable interface, suitable for high-frequency signal transmission, and easier installation and maintenance.

5. Adjustable Bracket Design, Flexible Adaptability: Equipped with an adjustable mounting bracket, supporting pole diameters from φ40-90mm, adapting to various installation scenarios and angle requirements.

Application Scenarios

CDMA450 Rural Communication System

Village Connectivity Project Wireless Coverage Project

Signal Relay and Extension in Remote Areas

Dedicated Communication Networks for Mining Areas, Farms, and Mountainous Areas

Emergency Communication Vehicles and Mobile Base Station Antenna Deployment

FAQ

Q: What is the coverage angle of this antenna?

A: It has a 120° coverage in the horizontal plane and a 65° coverage in the vertical plane.

Q: Can it be used for CDMA450 systems?

A: Yes, it is specifically designed for CDMA450 and similar rural communication systems.

Q: What connector does it use?
