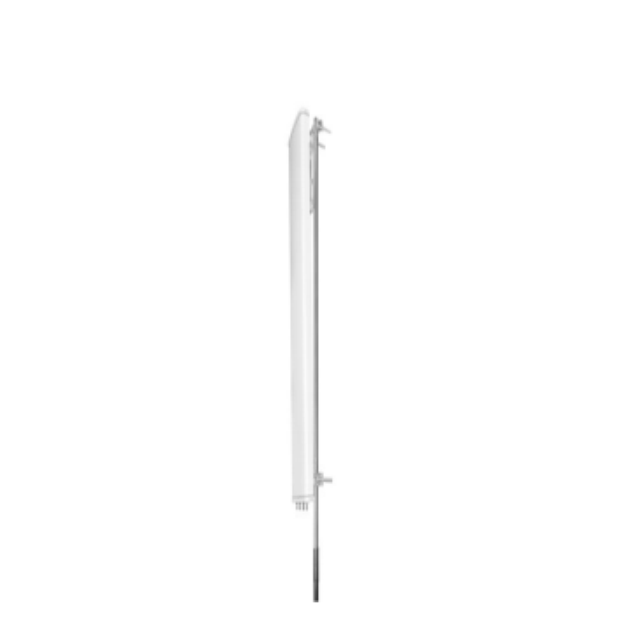

High gain 20dBi 4 ports dual polarization panel antenna

Product Introduction

① Narrow Beam, High-Precision Coverage

A unique 8°±2° vertical beamwidth combined with a 32°±5° horizontal beamwidth enables precise signal focusing, effectively reducing neighboring cell interference and improving network capacity and quality.

② Four-Port Dual-Polarization Design

Supporting 2x1710-2690MHz frequency bands, with ±45° dual polarization, the four ports provide flexible MIMO applications, significantly improving channel capacity and data transmission stability.

③ Excellent Electrical Performance

Gain up to 20.5dBi, front-to-back ratio ≥25dB, isolation ≥28dB, and voltage standing wave ratio ≤1.5 ensure efficient signal transmission and excellent system compatibility.

④ High Power and Reliability

Supporting a maximum input power of 300W per port, third-order intermodulation ≤-107dBm, and utilizing an FRP radome, it can withstand extreme temperatures from -30°C to +65°C.

⑤ Convenient Installation and Adjustment

Designed for pole mounting (accommodating pole diameters from Ø35-Ø90mm), it offers 0-10° mechanical downtilt adjustment for rapid deployment and network optimization.

Application Scenarios

●Capacity Enhancement in High-Density Urban Areas: The narrow beam characteristics effectively control coverage and reduce inter-cell interference, making it ideal for urban capacity enhancement.

●Transportation Arterial Coverage: Along highways and railways, the narrow beam provides long-range, directional coverage.

●Stadiums and Large Venues: Precise coverage of spectator areas, providing high-quality, high-capacity mobile communication services.

●Wide Coverage in Rural and Remote Areas: High gain enables longer-range signal propagation.

●5G Network Deployment: Supports the 2.6 GHz frequency band, suitable for 5G NR network base station deployment.

FAQ

Q: What network standards does this antenna support?

A: It supports the 1710-2690 MHz frequency band, covering LTE, 4G, and some 5G NR bands, making it suitable for most mobile communication networks.

Q: What is the antenna's beamwidth? What are the advantages?

A: The horizontal beamwidth is 32°, and the vertical beamwidth is only 8°. The narrow beam enables more precise coverage control, reduces interference, and improves signal quality.

Q: Does it support MIMO technology?

A: Yes, the four-port design supports MIMO applications, effectively increasing channel capacity and data transmission rates.

Q: What is the antenna's protection level?

A: It uses an FRP radome and operates in temperatures from -30°C to +65°C, ensuring stable operation in a variety of harsh outdoor environments.

Q: What accessories are required for installation?

A: It is suitable for mounting on poles with diameters ranging from 35 to 90 mm and can be secured using standard mounting hardware. The mechanical downtilt angle is adjustable from 0 to 10°.

Q: What are the dimensions and weight of the antenna?

A: It measures 1600 × 450 × 200 mm and weighs approximately 12.5 kg, making it relatively lightweight and easy to install.
