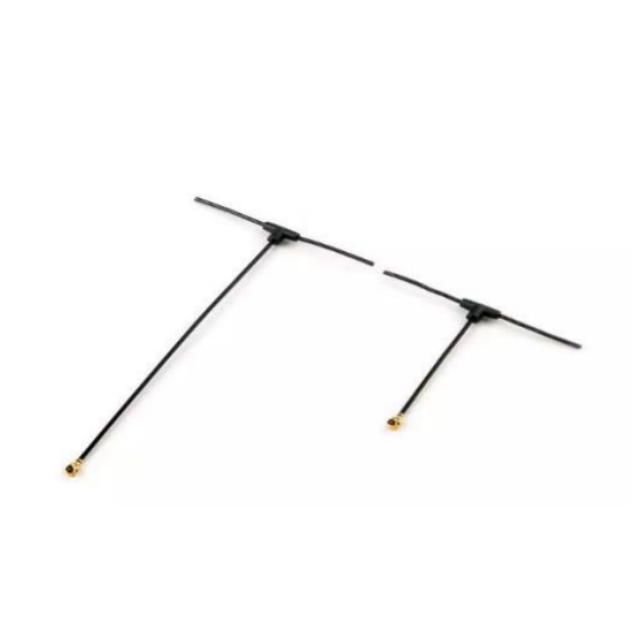

2.4GHz T-Shaped WiFi Omni Antenna with IPEX Connector

2.4GHz WiFi antenna
IPEX connector internal WiFi antenna
2dBi gain antenna for router
Low loss
Product description: Precise single-band coverage, compatible with mainstream Wi-Fi: Designed specifically for the 2400MHz Wi-Fi band, it perfectly matches most home and commercial Wi-Fi devices. Its >2dBi gain combined w
INQUIRY

Main technical specifications
Frequency Range (MHZ)	2400
Gain(dBi)	>2
Connector	IPEX/IPX/U.FL
Efficiency (dBi)	-0.89
Efficiency (%)	81.46
Directivity (dB)	5.12
Peak Gain Position (Theta)	180.00
Peak Gain Position (Phi)	330.00
Efficiency ThetaPol (%)	20.90
Efficiency PhiPol (%)	60.56
OUpper Hem. Efficiency (%)	39.93
Lower Hem. Efficiency(%)	41.54
Antenna width	52mm
Antenna length	130mm

Product Introduction

1. Compact and Efficient Design: Featuring a T-shaped structure measuring only 130x52mm, it boasts an efficiency of up to 81.46%, making it ideal for space-constrained embedded devices.

2. Omnidirectional Coverage: Featuring an omnidirectional radiation pattern and dual polarizations (Theta and Phi) (efficiencies of 20.9% and 60.56%, respectively), it enables multi-angle signal reception.

3. Plug-and-Play Compatibility: Standard IPEX/IPX/U.FL Connectors ensure compatibility with routers, WiFi modules, IoT devices, and industrial control equipment.

4. Stable Performance: Gain > 2dBi, balanced efficiency in the upper and lower hemispheres (39.93% in the upper hemisphere and 41.54% in the lower hemisphere), ensuring signal stability and uniform coverage.

5. Easy Installation: Lightweight design connects directly to the motherboard interface, eliminating the need for additional debugging, making it suitable for quick replacement or integrated development.

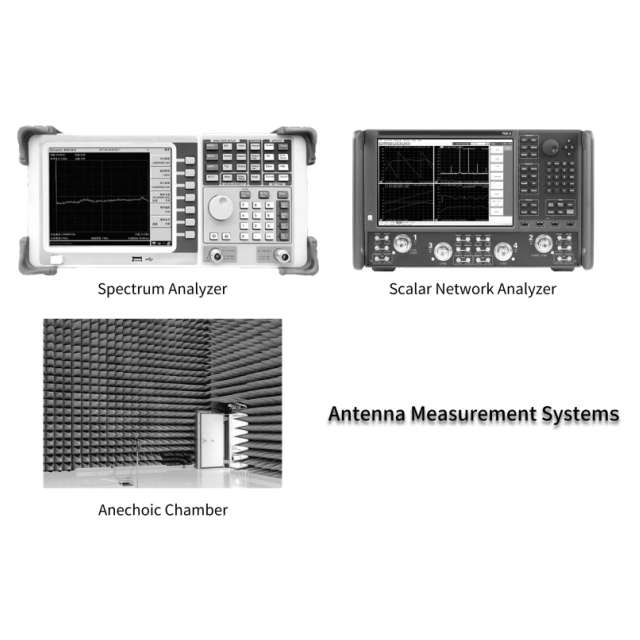

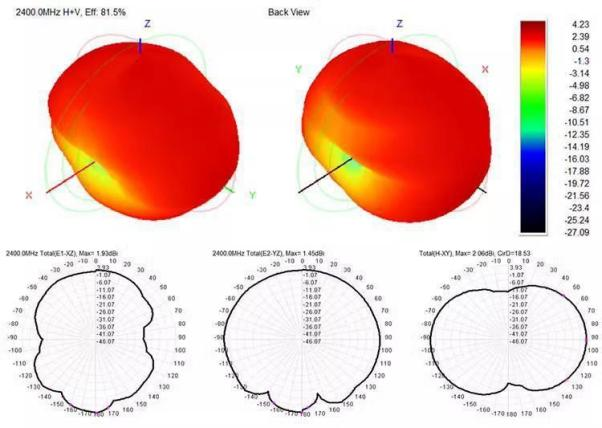

testing
