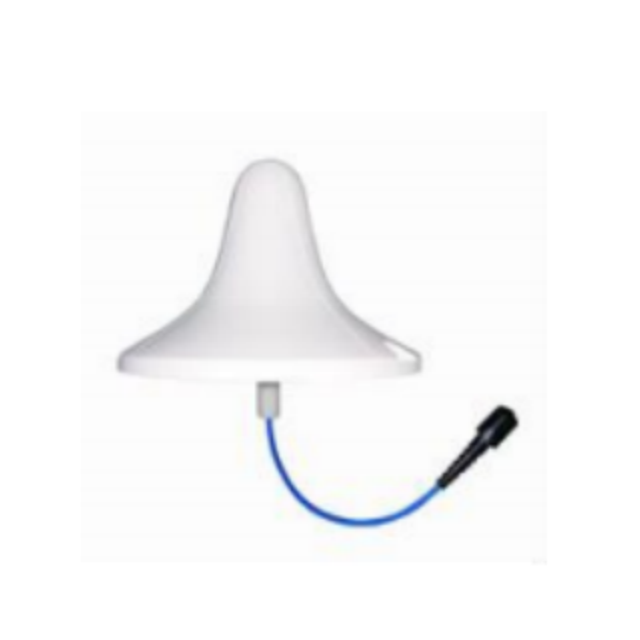

Multi-band ABS radome Omni ceiling mount antenna for indoor

Product Introduction

1.Wide Frequency Coverage – Supports 380–6000 MHz, compatible with 4G, 5G, WiFi, and public safety bands.

2.Omnidirectional Coverage – Provides 360° horizontal coverage for uniform signal distribution.

3.Low PIM Design – IM3 ≤ -150 dBc, ideal for multi-operator and high-traffic environments.

4.Durable & Lightweight – Features an anti-UV ABS radome, aluminum radiating elements, and weighs only 0.9 kg.

5.Easy Ceiling Installation – Includes N-type female connector and DC grounding for lightning protection.

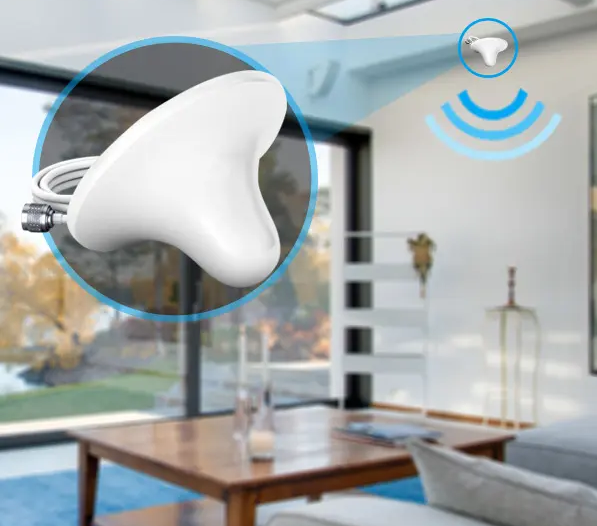

Application Scenarios

Shopping malls, airports, hospitals, and office buildings

Indoor Distributed Antenna Systems (DAS)

Multi-operator cellular coverage systems

Public safety and enterprise communication networks

Hotels, conference centers, and underground parking garages

FAQ

Q: What frequency bands does this antenna support?

A: It supports 380–520 MHz, 698–960 MHz, and 1710–6000 MHz.

Q: Is this antenna suitable for 5G systems?**

A: Yes, it covers key 5G bands within the 1710–6000 MHz range.

Q: What is the gain of this antenna?

A: Gain ranges from 2.0 dBi at lower bands to 4.0 dBi in higher frequencies.

Q: Can it be used outdoors?

A: No, it is designed for indoor use with an ABS radome that is UV-resistant but not waterproof.

Q: What connector type does it use?

A: It comes with an N-type female connector.

Q: What is the maximum power input?

A: It supports up to 50W input power.
