GSM Rubber Antenna SMA R/A male 27.5mm Long GL401

Product description: inside Sma Connector Rubber Antenna 3G 27.5mm Long The GL401 is a 3G rubber antenna with an SMA connector, measuring 27.5mm in length. This antenna is specifically designed to provide reliable and e
INQUIRY

GSM Rubber Antenna
GL401
Electrical Index
Frequency-MHz	890-960/1710-2170
Gain -dBi	2.0
VSWR	＜2.0
Normal Impedance -Ω	50
Polarization	Linear
Mechanical Index
Connector	SMA R/A male
Antenna Dimension-mm	Ø9.7*27.5
Environmentally Friendly	ROHS Compliant
Temperature-℃	-40～＋85
Humidity-﹪	5～95

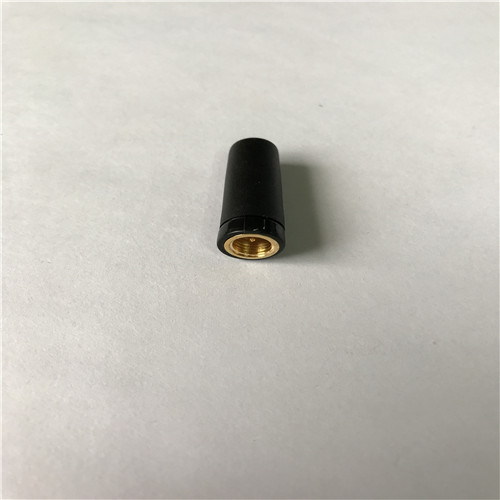

GSM rubber antenna GL401 27.5mm long

The GL401 GSM rubber antenna with SMA connector is a universal solution for wireless communication needs. Such as public safety, smart home systems, medical devices, wireless sensors and alarm systems. The antenna's rubber construction provides flexibility and durability, allowing for reliable signal transmission in both indoor and outdoor environments. SMA Connectors ensure easy installation and compatibility with a wide range of devices, enhancing the overall functionality of modern wireless technology

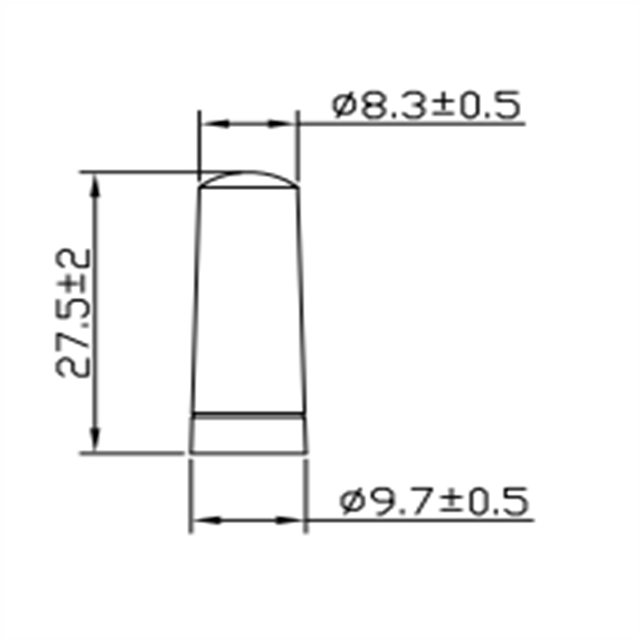

GL401-28图纸
