Magnet Antenna

  • 3G Magnet Antenna Height  Alertive Connector Choice GL-DYG861
3G Magnet Antenna Height  Alertive Connector Choice GL-DYG861

3G Magnet Antenna Height Alertive Connector Choice GL-DYG861

  • Product description: 3G Magnet Antenna is a high-performance antenna designed for magnet mounting, with a diameter of 30mm and a height of 178mm. Its strong magnetic force ensures a secure attachment, providing a stable
  • INQUIRY

2.4G/3G Magnet Antenna

GL-DYG861

Electrical Index

Frequency-MHz

824-960/1710-2170/2400-2500

VSWR

1.5

Normal Impedance-Ω

50

Polarization

Liner

Mechanical Index

Cable Length

RG174,3m

Connector

SMA male

Antenna Dimension-mm

φ30*178

Installation Way

Magnet

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant

Temperature-℃

-40~85

Humidity-

5~95

Product Introduction

●Main indicators:The 3G Magnet Antenna GL-DY861 is designed for frequencies ranging from 698MHz to 2170MHz with a VSWR of less than 1.5. It has a normal impedance of 50 ohms and features linear polarization.

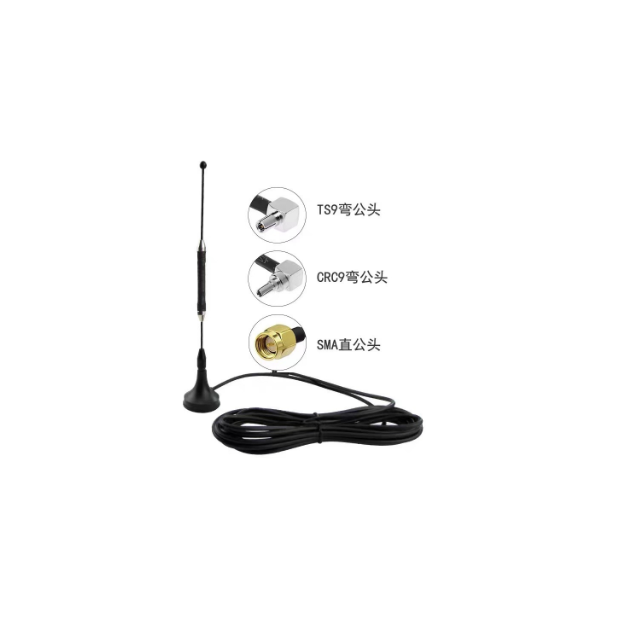

●Flexible connector selection: The antenna supports a variety of connector options, including TS9 R/A male, CRC9 R/A male, and SMA right-angle male. Users can choose the appropriate connector according to their needs to achieve optimal compatibility.


●Signal enhancement function: The GL-DY861 antenna is designed to enhance signal reception and transmission capabilities. It is very suitable for use in industrial, commercial or residential environments, effectively improving network connection performance and meeting diverse application needs.


●Easy installation and durable design: This product has a simple installation process and durable material composition, which enables it to adapt to various environmental conditions and provide users with long-term and stable wireless communication support.Similar 3G magnet antenna Click to view GL-DYG859


●Custom length options: In addition to the standard length, the magnetic antenna can also provide 3-meter or 5-meter cables according to customer requirements to meet the needs of deployment distance in different scenarios, making it a multi-purpose solution.
