Magnet Antenna

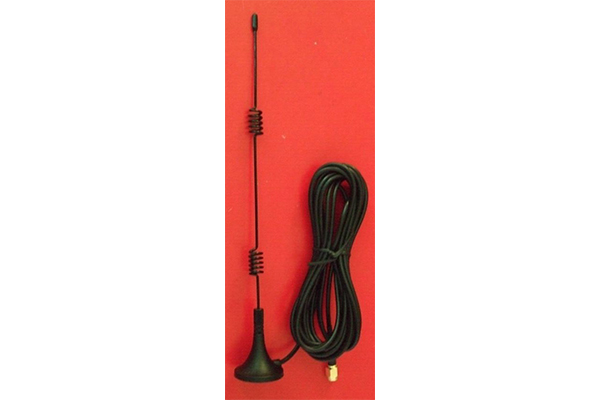

3G magnet antenna SMA male 7dbi with RG174 cable 3m long GL-DYG826

Product description: Enhance your network signal strength with this high-performance 3G magnet antenna. Equipped with an SMA male connector and a 3m RG174 cable, it ensures reliable connectivity for your device. Boost yo
INQUIRY

3G Magnet Antenna
GL-DYG826
Electrical Index
Frequency-MHz	824-960/1710-2170
VSWR	＜1.5
Normal Impedance-Ω	50
Gain-dBi	7
Polarization	RHCP
Mechanical Index
Cable Length	RG174,3m
Connector	SMA male
Antenna Dimension-mm	29.4*245
Installation Way	Magnet
Vibration	10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly	ROHS Compliant
Temperature-℃	-40～＋85
Humidity-﹪	5～95

3G magnet antennas are also widely used as a type of mobile communication system antenna, mainly for indoor signal coverage. In the 3G era, indoor voice, data, and high-speed multimedia services are densely distributed, and indoor distribution systems play an important role in the construction and optimization of 3G networks. Therefore, 3G magnet antennas are not only suitable for personal use, but also for enterprises or public places, such as offices, conference rooms, hotels, and other places where indoor signal coverage needs to be improved.
