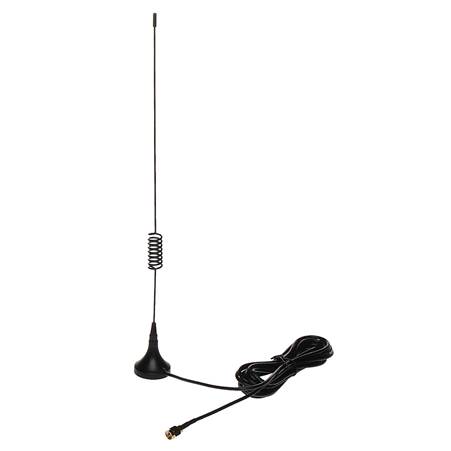

280mm Height Magnet Mounting Way GSM Antenna GL-DYG859

Frequency-MHz:800-900-1800-2100
SMA Male connector
Product description: The 3G Magnet Antenna GL-DY859 is designed for frequencies ranging from 698MHz to 2170MHz with a VSWR of less than 1.5. It has a normal impedance of 50 ohms and features linear polarization.
INQUIRY

3G Magnet Antenna
GL-DYG859
Electrical Index
Frequency-MHz	800-900-1800-2100
Gain-dBi	5
VSWR	＜2.0
Normal Impedance-Ω	50
Max Power-W	50
Polarization	Vertical
Mechanical Index
Cable Length	RG174,3m
Connector	SMA male
Antenna Dimension-mm	31*280
Installation Way	Magnet
Vibration	10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly	ROHS Compliant
Temperature-℃	-40～＋85
Humidity-﹪	5～95

The 3G Magnet Antenna GL-DY859 is designed for frequencies ranging from 698MHz to 2170MHz with a VSWR of less than 1.5. It has a normal impedance of 50 ohms and features linear polarization. The antenna comes with a 3m RG174 cable and can be connected using either an SMA male or SMA R/A male connector. With dimensions of Φ31*280mm, it is designed for easy installation using a magnet. The antenna can withstand vibrations from 10 to 55Hz with a 1.5mm amplitude for 2 hours. It is environmentally friendly and compliant with ROHS standards, operating in temperatures ranging from -40℃ to +85℃ and humidity levels from 5% to 95%.
