GL228LM - A high-performance integrated combination antenna for simultaneous GNSS surveying and LTE MIMO data connectivity.
This integrated antenna solution combines a multi-constellation high-precision GNSS antenna with a dual-port LTE MIMO Antenna in a compact design. Engineered for professional surveying, mapping, telematics, and IoT applications requiring robust positioning and cellular data transmission.
Key Features | |
High-Precision Multi-GNSS Supports GPS L1/L2, GLONASS G1/G2, COMPASS B1/B2/B3, and Galileo E1/L1/E2/E5b/E6 for global, high-accuracy positioning with ±2mm phase center error. | Integrated LTE MIMO Combines GNSS with a dual-port LTE antenna covering 698-960MHz and 1710-2690MHz, enabling robust cellular data connectivity alongside positioning. |
High-Gain LNA Performance Integrated GNSS LNA provides 40±2 dB gain with a low noise figure (≤1.5dB) and operates on a wide 3-12V DC supply for superior signal reception. | Robust Electrical Design Features excellent VSWR (≤1.5 for GNSS,<3.0 for LTE), 50Ω impedance, and utilizes high-quality RG316 and RG178 cables for signal integrity. |
Flexible Integration Standard Fakra Connectors (or alternatives) and separate cables for GNSS and LTE systems facilitate easy installation in various equipment and vehicles. | 360° Horizontal Coverage The GNSS antenna provides omnidirectional coverage, ensuring reliable satellite signal reception regardless of orientation. |
| System | Parameter | Specification |
|---|---|---|
| GNSS Antenna | Frequency | GPS L1/L2, GLONASS G1/G2, COMPASS B1/B2/B3, Galileo E1/L1/E2/E5b/E6 |
| Polarization | RHCP | |
| Axial Ratio | ≤ 3 dB | |
| V.S.W.R | ≤ 1.5 | |
| Peak Gain | ≥ 5 dBi | |
| Impedance | 50 Ω | |
| Phase Center Error | ± 2 mm | |
| Horizontal Coverage Angle | 360° | |
| GNSS Antenna LNA | Gain | 40 ± 2 dB |
| Noise Figure | ≤ 1.5 dB | |
| Passband Fluctuation | ± 1 dB | |
| Supply Voltage | 3 ~ 12 V DC | |
| Current Consumption | ≤ 45 mA | |
| V.S.W.R | ≤ 2.0 | |
| LTE Antenna MIMO | Frequency Range | 698 ~ 960 MHz / 1710 ~ 2690 MHz |
| Polarization | Linear | |
| Gain | MAIN: 2.5 dBi (Zenith) AUX: 2.0 dBi (Zenith) | |
| V.S.W.R | < 3.0 | |
| Impedance | 50 Ω | |
| Mechanical | Connector | Fakra or others |
| Cable | GNSS Antenna: RG316 LTE Antenna: RG178 * 2 | |
| |

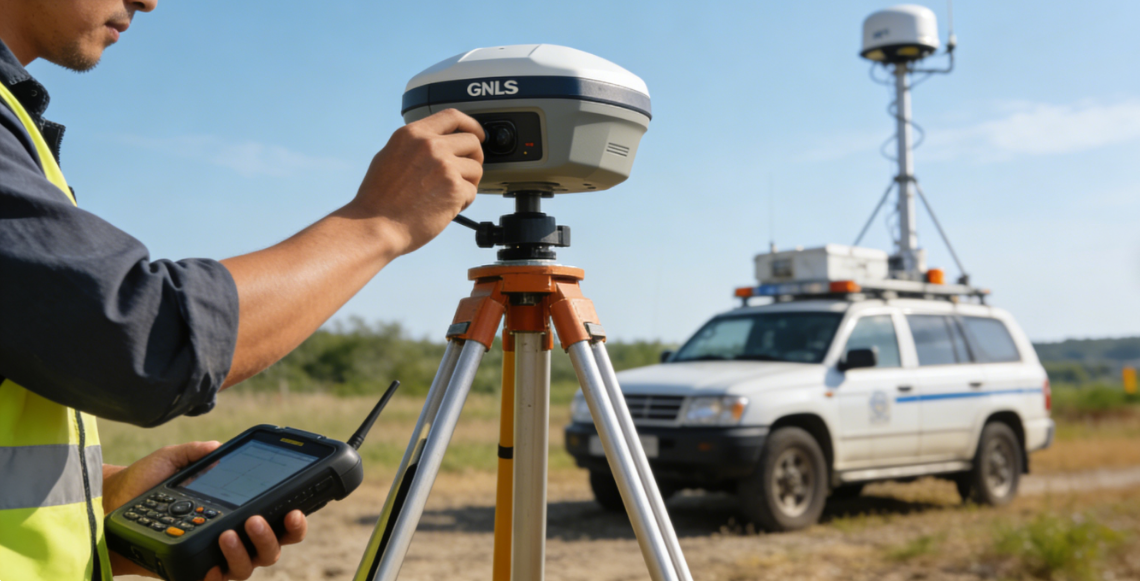

Precision Surveying & MappingIdeal for RTK GNSS receivers and mobile mapping systems used in land surveying, construction layout, and topographic surveys. The integrated LTE ensures real-time correction data and field data upload. | Autonomous & Smart AgricultureProvides reliable positioning and cellular connectivity for autonomous tractors, harvesters, and drones used in precision agriculture for guidance, variable rate application, and fleet management. |
| |

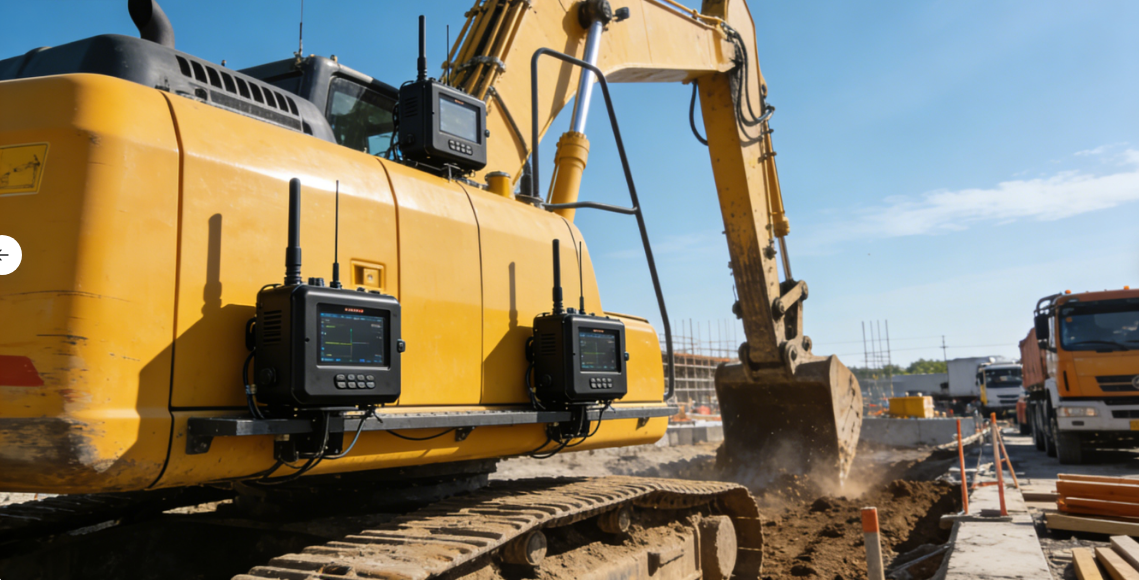

Industrial IoT & Asset TrackingEnables precise location tracking and remote data communication for industrial IoT gateways, logistics containers, utility assets, and environmental monitoring stations. | Construction & Heavy Equipment TelematicsSuited for vehicle-mounted terminals on excavators, cranes, and haul trucks, providing machine location, utilization data, and remote diagnostic capabilities via cellular networks. |
Request Quote Request Sample Download PDF
Part Number GL228LM | Customization Connector type, cable length | Lead Time Please confirm with sales |
Datasheet: Available upon request.
3D Drawing / Mechanical Drawing: Available upon request.
Installation Guide: Available upon request.
The antenna supports all major global navigation satellite systems: GPS (L1 and L2 bands), GLONASS (G1 and G2), COMPASS/BeiDou (B1, B2, B3), and Galileo (E1, L1, E2, E5b, E6). This multi-frequency, multi-constellation support ensures high availability and accuracy worldwide.
For modern surveying, real-time kinematic (RTK) correction data is typically delivered via cellular networks (NTRIP). The integrated LTE MIMO antenna provides a stable, high-speed data link for receiving these corrections while simultaneously transmitting collected field data, eliminating the need for a separate cellular modem or antenna.
Yes. The standard configuration uses Fakra connectors, but other connector types can be accommodated. Cable lengths for both the GNSS (RG316) and LTE (dual RG178) cables can also be customized to fit your specific installation requirements. Please specify your needs when requesting a quote.
The phase center is the electrical reference point of the antenna. A low, stable phase center error (±2mm) means this point remains consistent regardless of the satellite's direction. This is critical for high-precision (<1cm) surveying and mapping, as it minimizes positioning errors introduced by the antenna itself.
The integrated Low Noise Amplifier (LNA) operates on a wide DC voltage range of 3 to 12 volts, with a typical current consumption of ≤45 mA. This makes it compatible with most survey equipment, vehicle power systems, and battery-powered devices.
The specified frequency range is 698-960 MHz and 1710-2690 MHz, which covers mainstream 4G LTE bands globally. For specific 5G NR band support, please inquire as custom design options may be available depending on your requirements.
Sample units can typically be provided for evaluation. Standard production lead time varies based on order quantity and customization level. Please contact our sales team for the most accurate lead time information for your specific project.
The antenna is designed for professional outdoor use. For detailed environmental specifications such as ingress protection (IP) rating, operating temperature range, and resistance to vibration, please confirm with our sales team as these may be defined based on your customization choices.
For detailed technical consultations, volume pricing, customization requests, or to discuss your specific application, please use the Request Quote or Request Sample buttons above to get in touch with our sales engineering team.
Note: All specifications are based on standard testing conditions and are subject to change without notice. Performance may vary based on installation and environmental factors. Ensure compatibility with your host system before integration.
