FOB Port: Shanghai or Shenzhen
MOQ: 1000PCS
Supply ability:10000PCS/DAY
Payment: TT,Paypal,Westen Union before shipment
Download Info: here
|
Item |
Specifications |
|
|
Antenna |
Frequency |
GPS L1/L2/L5 GLONASS G1/G2/G3 COMPASS B1/B2/B3 Galileo E1/L1/E2/E5a/E5b/E6 |
|
Polarization |
RHCP |
|
|
Axial Ratio |
≤3dB |
|
|
V.S.W.R |
≤1.5 |
|
|
Peak Gain |
≥5dBi |
|
|
Impedance |
50Ω |
|
|
Phase Center Error |
±2mm |
|
|
Horizontal coverage angle |
360° |
|
|
LNA |
Gain |
40±2dB |
|
Noise Figure |
2.0dB |
|
|
Passband fluctuation |
±2.0dB |
|
|
Supply Voltage |
3~ 12V DC |
|
|
Current Consumption |
≤50mA |
|
|
V.S.W.R |
≤2.0 |
|
|

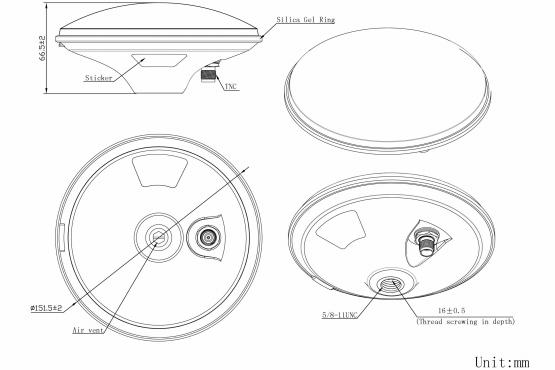

Mechanical |
Connector |
TNC female |
|
Radome Material |
ASA |
|
|
Mounting Method |
Screw |
|
|
Environmental |
Operating Temperature |
-40℃~+85℃ |
|
Relative Humidity |
Up to 95% |
|
|
Ingress Protection |
IP67 (exclude Air vent in screw hole) |
|
|
Environmentally Friendly |
ROHS Compliant |
|
Contact: Diana Xie
Phone: 86-15815571536
E-mail: sales@global-antenna.com
Whatsapp:8615815571536
Add: Room826, Floor 8,BLDG 13, University Science Park(East), Zhengzhou City, P.R.Henan, China.Zip Code: 450000
