FOB Port: Shanghai or Shenzhen
MOQ: 1000PCS
Supply ability:10000PCS/DAY
Payment: TT,Paypal,Westen Union before shipment
Download Info: here
|
Item |
Specifications |
|
|
Antenna |
Frequency |
GPS L1/L2 GLONASS G1/G2/G3 COMPASS B1/B2/B3 Galileo E1/L1/E2/E5b |
|
Polarization |
RHCP |
|
|
Axial Ratio(min) |
≤3dB |
|
|
V.S.W.R |
≤2.0 |
|
|
Peak Gain |
≥2dBi |
|
|
Impedance |
50Ω |
|
|
Horizontal coverage angle |
360° |
|
|
LNA |
Gain |
28±2dB |
|
Noise Figure |
≤1.5dB |
|
|
Pass band fluctuation |
±1.5dB |
|
|
Supply Voltage |
3~12V DC |
|
|
Current Consumption |
≤50mA |
|
|
V.S.W.R |
≤2.0 |
|
|

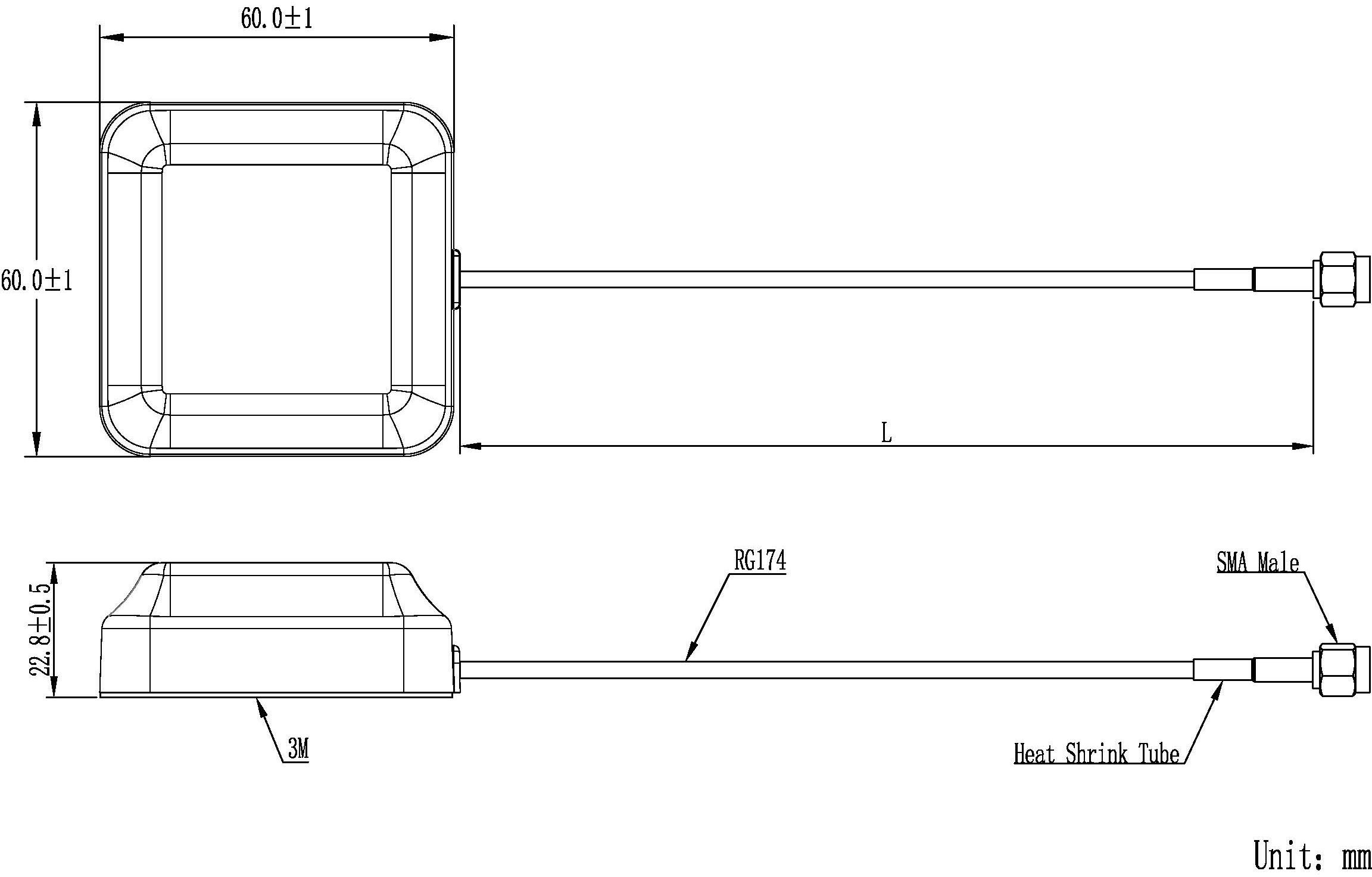

Mechanical |
Connector |
SMA or others |
|
Cable |
RG174 or others |
|
|
Mounting Method |
Magnet/Adhesive |
|
|
Environmental |
Operating Temperature |
-40℃~+85℃ |
|
Relative Humidity |
Up to 95% |
|
|
Ingress Protection |
IP66 |
|
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
|
Environmentally Friendly |
ROHS Compliant |
|
