5G Ceiling Antennas

  • MIMO Omni Ceiling Mount Antenna 4*4
  • MIMO Omni Ceiling Mount Antenna 4*4
  • MIMO Omni Ceiling Mount Antenna 4*4
  • MIMO Omni Ceiling Mount Antenna 4*4
  • MIMO Omni Ceiling Mount Antenna 4*4
MIMO Omni Ceiling Mount Antenna 4*4 MIMO Omni Ceiling Mount Antenna 4*4 MIMO Omni Ceiling Mount Antenna 4*4 MIMO Omni Ceiling Mount Antenna 4*4 MIMO Omni Ceiling Mount Antenna 4*4

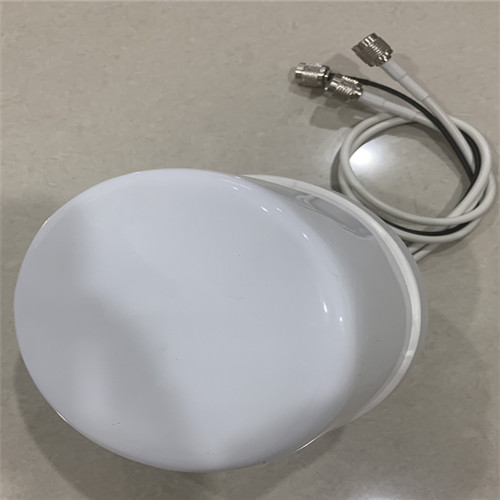

MIMO Omni Ceiling Mount Antenna 4*4

  • P/N:GLCB400W5G
  • Gain:3-5dBi
  • TNC male
  • Freq:617-960 / 1690-3800 / 5150-5925MHz
  • Product description: Application: MIMO 4*4G/5G System
  • INQUIRY


FOB Port: Guangzhou or Shenzhen

MOQ: 100PCS

Supply ability:500PCS/DAY

Payment: TT,Paypal,Western Union before shipment


Download Info: here

Electrical Specifications

Cable Leads Number

Cable 1 to 4 (LTE/CBRS/WiFi)

Frequency (MHz)

617-960 / 1690-3800 / 5150-5925

Horizontal Half-power Beamwidth (°)

360

Vertical Half-power Beamwidth (°)

55

Gain (dBi)

3 / 4 / 5

Polarization

Vertical

VSWR*

≤2.0

Average Power, Maximum (W)

10

Impedance (Ω)

50


Mechanical Specifications

Dimensions (mm)

Φ148×60 (5.55” Dia. × 2.4” High)

Net Weight (kg)

0.8

Radome Material

UV Stabilized Fiberglass

Radome Color

White

Cable Length (M)

5 (17ft)

Connector

SMA Male (4×) or Customized

*Measured on 1’ ground with 17’ cable


Environmental Specifications

Application

Indoor / Outdoor

Operating Temperature (℃)

-40 to +70 (-40 to 158℉)

Humidity (%)

5 to 95

Water Ingress Rating

IP67

Mounting Specifications

MOUNTING ACCESSORIES ARE INCLUDED UNLESS OTHERWISE SPECIFIED

Mounting Accessories

Surface Mount Nut and Washer




FAQ


Q: Can I get one sample?

A: Yes, sample is available.


Q: Have GNSS antenna 100% assembles well in stock?

A: No, all GNSS antenna will be newly assembled according to your orders including the samples.


Q: What's the delivery time?

A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.


Q: Could i use my own LOGO or design on goods?

A: Yes, customized logo and design on mass production are available.


Q: What's the payment term?

A:  T/T, Paypal, western union etc.


Q:  May I visit your company?

A:  Sure, welcome any time.


Q: How long is the warranty?

A: 1 year for antennas and half a year for assembly cables and Connectors
