Combo Antennas

  • GPS+LTE+Wifi Combo Antenna GL-DYE58
  • GPS+LTE+Wifi Combo Antenna GL-DYE58
  • GPS+LTE+Wifi Combo Antenna GL-DYE58
GPS+LTE+Wifi Combo Antenna GL-DYE58GPS+LTE+Wifi Combo Antenna GL-DYE58GPS+LTE+Wifi Combo Antenna GL-DYE58

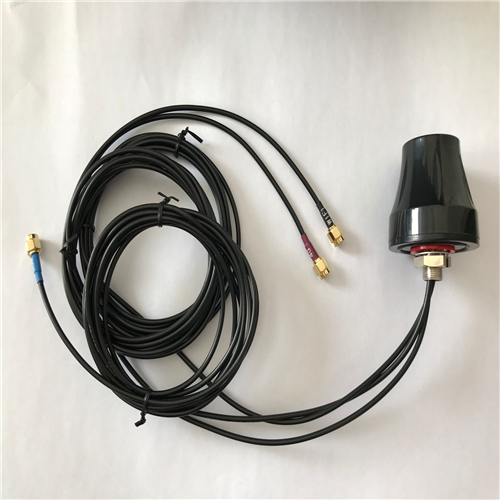

GPS+LTE+Wifi Combo Antenna GL-DYE58

  • P/N: GL-DYE58
  • Size:50*48mm
  • Connector: SMA male
  • Mounting: Screw
  • Product description: This application shall apply for antenna unit which shall be used with an engine for an automobile
  • INQUIRY


FOB Port: Shanghai or Shenzhen
MOQ: 100PCS
Supply ability:5000PCS/DAY
Payment: TT,Paypal,Westen Union before shipment

Download Info: here


Item

Specifications

GPS Antenna

Dielectric Antenna

Center Frequency

1575.42±1MHz

Band Width

CF±5MHz

Polarization

RHCP

Gain

2dBicZenith

V.S.W.R

1.5

Impendance

50Ω

Axial Ratio

3dBmax

LNA

Gain

28±2dB

Noise Figure

1.5

Ex-band Attenuation

12dB@CF+50MHz/16dB@CF-50MHz

V.S.W.R

2.0

Supply Voltage

2.2~5V DC

Current Consumption

5~15mA

WIFI Antenna*2

Frequency Range

2400~2483.5MHz

Band Width

83.5MHz

Polarization

Linear

Gain

3dBi

V.S.W.R

2.0

Impendance

50Ω

Mechanical

Cable

RG174

Connector

SMA/MCX/FAKRA or others

Material

ABS

Mounting Method

Screw

Environmental

Operating Temperature

-40~+85

Relative Humidity

Up to 95%

Ingress Protection

IP67 (exclude cable outlet)

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant



FAQ

Q: Can I get one sample?

A: Yes, sample is available.


Q: Have GNSS antenna 100% assembles well in stock?

A: No, all GNSS antenna will be newly assembled according to your orders including the samples.


Q: What's the delivery time?

A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.

Q: Could i use my own LOGO or design on goods?

A: Yes, customized logo and design on mass production are available.


Q: What's the payment term?

A:T/T, Paypal, western union etc.


Q:May I visit your company?

A: Sure, welcome any time.


Q: How long of the warranty?

A: one year for antennas and half a year for assembly cables and Connectors
