5G Ceiling Antennas

  • GL-DY7040V4   5G Ceiling Mount antenna

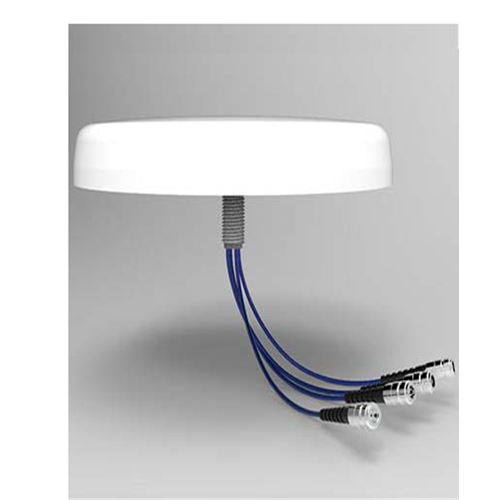

GL-DY7040V4   5G Ceiling Mount antenna

GL-DY7040V4 5G Ceiling Mount antenna

  • P/N: GL-DY7040V4
  • Connector: N female
  • Dim: 350*40mm
  • Freq: 698-3800MHz
  • Product description: GL-DY7040V4 5G antenna
  • INQUIRY

FOB Port: Shanghai or Shenzhen

MOQ: 500PCS

Supply Ability:5000 Pcs/Day

Payment: TT,Paypal,Westen Union before shipment

Download Info: here


Packing information: single packing, 20PCS/CTN


Download Info:

Electrical Specifications

Frequency Range

698-960MHz

1710-2700MHz

3400-4000MHz

VSWR

2.0

2.0

2.0

Gain

2.5dBi

3dBi

4dBi

Horizontal beam width

360°

360°

360°

Vertical beam width

65°

55°

50°

Polarization

Horizontal

Input Impedance

50Ω

Isolation between ports

18dB

15dB

≥25dB

Intermodulation IM3 (2x33dBm)

≤-150dBc

Maximum input power

50W

Lightning protection

DC Ground

Mechanical Specifications

Input connector type

4×N-K

Dimensions

Φ350×40mm

Antenna weight

1.2kg

Radiating Element Material

PCB

Radome material

ABS

Radome color

White

Operating temperature

- 40°C to +65 °C


FAQ

Q: Can I get one sample?

A: Yes, sample is available.


Q: Have GNSS antenna 100% assembles well in stock?

A: No, all GNSS antenna will be newly assembled according to your orders including the samples.


Q: What's the delivery time?

A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.


Q: Could i use my own LOGO or design on goods?

A: Yes, customized logo and design on mass production are available.


Q: What's the payment term?

A: T/T, Paypal, western union etc.


Q:May I visit your company?

A: Sure, welcome any time.


Q: How long is the warranty?

A: 1 year for antennas and half a year for assembly cables and Connectors
