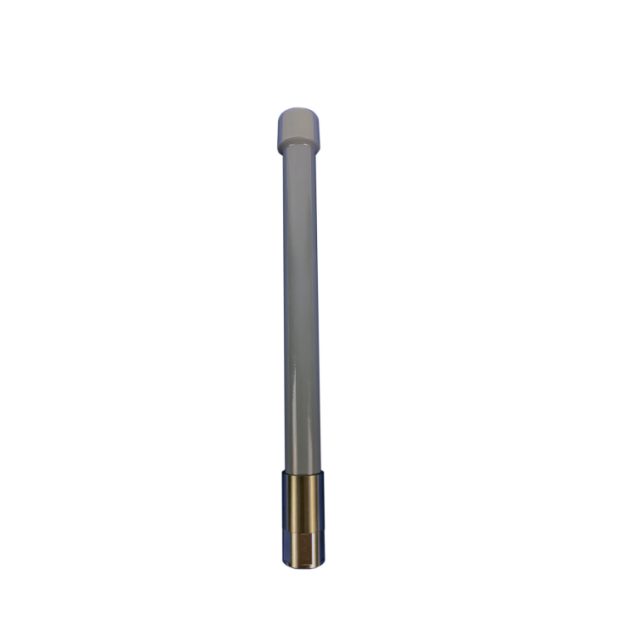

5.8GHZ 8dBi omnidirectional fiberglass outdoor antenna for base station

Frequency Range：5700-5850MHz
Gain：8dBi
base station antenna
Product description: 5.8GHz high frequency and high gain, strong signal and anti-interference: Designed specifically for the 5700-5850MHz (5.8GHz) frequency band, 8dBi ultra-high gain significantly improves signal transmi
INQUIRY

Electrical Specifications
Frequency Range (MHz)	5700-5850
Horizontal beam width(°)	360
Vertical beam width (°)	15
Gain (dBi)	8
Polarization	Vertical
VSWR	≤2.0
Maximum input power (W)	100
Impedance (Ω)	50
Mechanical Specifications
Dimensions (mm)		Φ20*300
Antenna weight (Kg)		0.2
Radome material		fiberglass
Radome color		grey
Input connector type		N-K
Environmental indicators
Usage scenarios			Outdoor
Operating temperature (℃)			-40 to +70
Humidity range (%)			5 to 95
Maximum wind speed (km/h)			200
Installing the Hardware
Installation			Connector fixing

Product Introduction

1. Professional 5.8GHz Band Optimization

Designed specifically for the 5700-5850MHz band, it's perfectly compatible with 5.8GHz WiFi and ISM band devices, providing a cleaner frequency environment.

2. High-Gain Omnidirectional Coverage

8dBi high gain combined with a 360° horizontal beamwidth delivers exceptional signal transmission and extended coverage.

3. Precision Vertical Beam Control

A narrow 15° vertical beamwidth provides a more focused signal, effectively reducing interference and increasing transmission distance and stability.

4. Industrial-Grade Protective Design

High-strength fiberglass casing is corrosion-resistant, UV-resistant, and IP-rated, making it suitable for harsh outdoor environments.

5. High-Power Stable Transmission

Supports a maximum input power of 100W, ensuring stable operation under high loads, making it suitable for professional applications.

Application Scenarios

5.8GHz WiFi base station and hotspot coverage

Long-distance point-to-point wireless transmission

UAV HD image and data transmission

Industrial wireless control systems (SCADA)

Remote monitoring and security systems

Intelligent transportation and connected vehicle systems

Outdoor wireless network deployment

Emergency rescue and temporary communication systems

FAQ

Q: What frequency bands does this antenna support?

A: Optimized for the 5700-5850MHz frequency band, it perfectly supports 5.8GHz WiFi and ISM band applications.

Q: What are the advantages of 8dBi high gain?

A: It provides longer transmission distance, stronger signal penetration, and more stable connection quality.

Q: Is the antenna waterproof? Is it suitable for outdoor use?

A: Yes, it features an industrial-grade fiberglass housing with excellent waterproof, dustproof, and weatherproof properties, designed for outdoor environments.

Q: What is the maximum supported power?

A: The maximum input power is 100W, meeting the needs of professional high-power applications.

Q: What are the dimensions and weight of the antenna?

A: The size is Φ20*300mm and the weight is only 0.2kg, which is light and easy to install and deploy.
