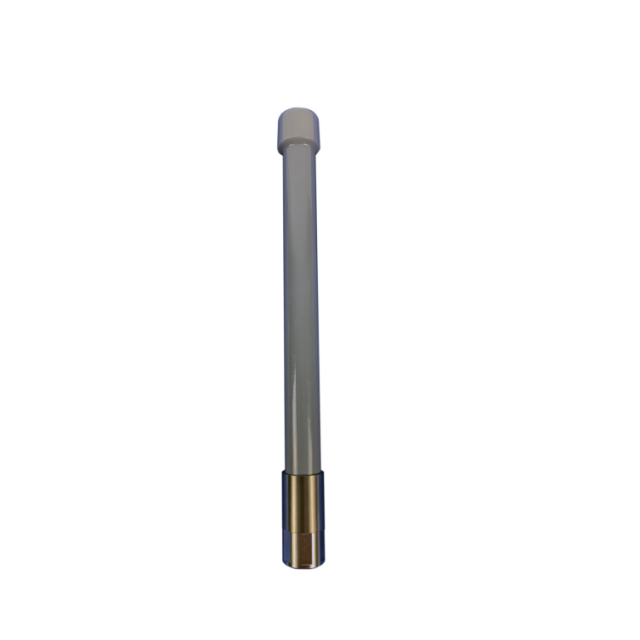

2400-2500MHz 6dBi omnidirectional fiberglass outdoor antenna

1. Professional 2.4GHz Band Optimization

Designed specifically for the 2400-2500MHz band, perfectly compatible with WiFi, Bluetooth, and ISM band devices.

2. High-Gain Omnidirectional Coverage

6dBi gain combined with a 360° horizontal beamwidth provides stronger signal and wider coverage.

3. Precision Vertical Beam Control

25° vertical beamwidth provides more focused signal, reduces interference, and improves transmission efficiency.

4. Industrial-Grade Protective Design

Fiberglass housing is corrosion-resistant, UV-resistant, and IP-rated for outdoor use.

5. High-Power Stable Transmission

Supports 100W maximum input power, ensuring stable operation under high-load conditions.

Application Scenarios

WiFi base station and hotspot coverage expansion

Industrial wireless control systems (SCADA)

UAV and image transmission data links

Remote monitoring and security systems

Internet of Things (IoT) device connectivity

Smart agriculture and environmental monitoring

Emergency rescue communication systems

FAQ

Q: What frequency bands does this antenna support?

A: Optimized for the 2400-2500MHz frequency band, it perfectly supports 2.4GHz WiFi, Bluetooth, and ISM band applications.

Q: What are the advantages of 6dBi gain?

A: Compared to standard antennas, it provides longer transmission range and stronger signal penetration.

Q: How is it installed?

A: It uses an N-K type connector for fixed installation, which is simple and convenient.

Q: What are the dimensions and weight of the antenna?

A: It measures Φ20*300mm and weighs only 0.2kg, making it lightweight and easy to install.

Q: What is the operating temperature range?

A: -40°C to +70°C, suitable for extreme weather conditions.

Q: What is the purpose of the 25° vertical beamwidth?

A: The narrower vertical beam focuses the signal, reduces ground reflection interference, and improves communication quality.
