Electrical Specifications |
|||
|
Frequency Range (MHz) |
950-1020 |
||
|
Horizontal beam width(°) |
360 |
||
|
Vertical beam width (°) |
60 |
||
|
Gain (dBi) |
3 |
||
|
Polarization |
Vertical |
||
|
VSWR |
≤2.0 |
||
|
Maximum input power (W) |
150 |
||
|
Impedance (Ω) |
50 |
||
|
Mechanical Specifications |
|||
|
Dimensions (mm) |
Φ20*300 |
||
|
Antenna weight (Kg) |
0.2 |
||
|
Radome material |
fiberglass |
||
|
Radome color |
grey |
||
|
Input connector type |
N-K |
||
|
Environmental indicators |
|||
|
Usage scenarios |
Outdoor |
||
|
Operating temperature (℃) |
-40 to +70 |
||
|
Humidity range (%) |
5 to 95 |
||
|
Maximum wind speed (km/h) |
200 |
||
|
Installing the Hardware |
|||
|
Installation |
Connector fixing |
||

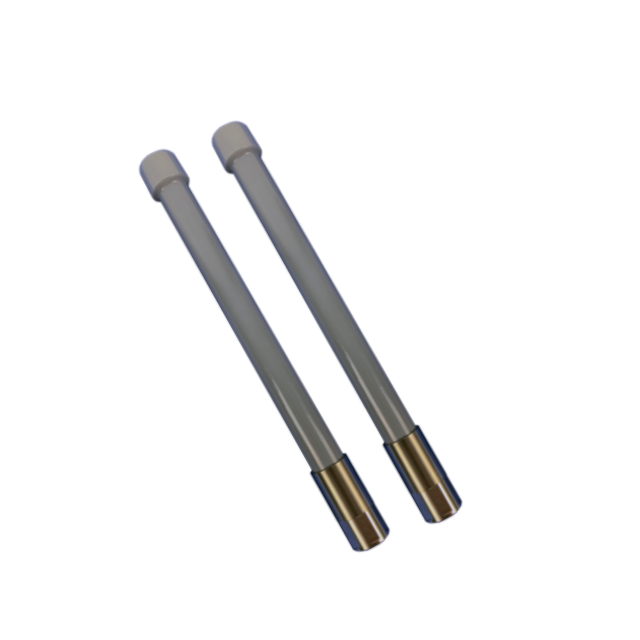

Product Introduction
1. Professional UHF Band Coverage
Specially optimized for the 950-1020MHz band, offering stable signals and suitable for professional communication systems.
2. Omnidirectional Signal Transmission
A 360° horizontal beamwidth ensures complete coverage, suitable for wide-area applications.
3. High-Strength Fiberglass Housing
Corrosion-resistant and UV-resistant, suitable for long-term outdoor use and a long service life.
4. High Power Capacity
Maximum input power of 150W, supporting high-power communication needs with stability and reliability.
5. Compact and Lightweight Design
Measuring only Φ20*300mm and weighing 0.2kg, it is easy to install and saves space.
Application Scenarios
UHF Band Communication Base Station
Industrial Remote Control and Telemetry Systems
UAV Data Link Communication
Remote Monitoring and Data Transmission
Emergency Communications and Public Safety Networks
Signal Coverage for Internet of Things (IoT) Devices
FAQ
Q: What frequency range does this antenna cover?
A: It covers the 950-1020MHz UHF band.
Q: What is the antenna's gain? What are the advantages?
A: The gain is 3dBi, providing omnidirectional coverage while providing stronger signal transmission capabilities.
Q: Is the antenna waterproof and corrosion-resistant?
A: Yes, the fiberglass housing is waterproof and corrosion-resistant, making it suitable for outdoor use.
Q: What is the maximum supported power?
A: The maximum input power is 150W.
Q: How is it mounted?
A: It is fixed via an N-K connector.
Q: What is the operating temperature range?
A: -40°C to +70°C, suitable for extreme climates.
