GL208 - A high-performance GNSS surveying antenna designed for precision applications requiring multi-band, multi-constellation support and low phase center error.
This professional-grade GNSS antenna supports GPS L1/L2/L5, GLONASS G1/G2/G3, COMPASS B1/B2/B3, and Galileo E1/E2/E5a/E5b/E6 bands. It features an integrated low-noise amplifier (LNA) with high gain, a robust IP67-rated housing with ASA radome, and is engineered for demanding environments across surveying, mapping, and geodetic applications.
Key Features | |
Multi-Constellation Support Comprehensive coverage of GPS, GLONASS, COMPASS (BeiDou), and Galileo across L1, L2, L5, E1, E5, E6 and other key bands for global high-precision positioning. | High-Performance LNA Integrated LNA with 40±2 dB gain, ≤2.0 dB noise figure, and wide supply voltage range (3~16V DC) for superior signal reception in weak-signal conditions. |
Low Phase Center Error Phase center error within ±2mm, ensuring measurement accuracy critical for surveying, RTK, and geodetic applications. | Robust Mechanical Design ASA radome material, TNC female connector, and screw mounting for durable, reliable outdoor installation. |
Wide Environmental Tolerance IP67 ingress protection (excluding air vent in screw hole), operating temperature range of -40℃ to +85℃, and up to 95% relative humidity. | Full 360° Coverage Horizontal coverage angle of 360°, providing consistent signal reception from all directions. |
| System | Parameter | Specification |
|---|---|---|
| Antenna | Frequency | GPS L1/L2/L5, GLONASS G1/G2/G3, COMPASS B1/B2/B3, Galileo E1/E2/E5a/E5b/E6 |
| Polarization | RHCP | |
| Axial Ratio | ≤3dB | |
| V.S.W.R | ≤1.5 | |
| Peak Gain | ≥4dBi | |
| Impedance | 50 Ω | |
| Phase Center Error | ±2mm | |
| Horizontal coverage angle | 360 ° | |
| LNA | Gain | 40±2dB |
| Noise Figure | ≤2.0dB | |
| Passband fluctuation | ±1.5dB | |
| Supply Voltage | 3~16V DC | |
| Current Consumption | ≤60mA | |
| V.S.W.R | ≤2.0 | |
| Mechanical | Connector | TNC female |
| Radome Material | ASA | |
| Mounting Method | Screw | |
| Environmental | Operating Temperature | -40℃~+85℃ |
| Relative Humidity | Up to 95% | |
| Ingress Protection | IP67 (exclude Air vent in screw hole) | |
| Environmentally Friendly | ROHS Compliant |

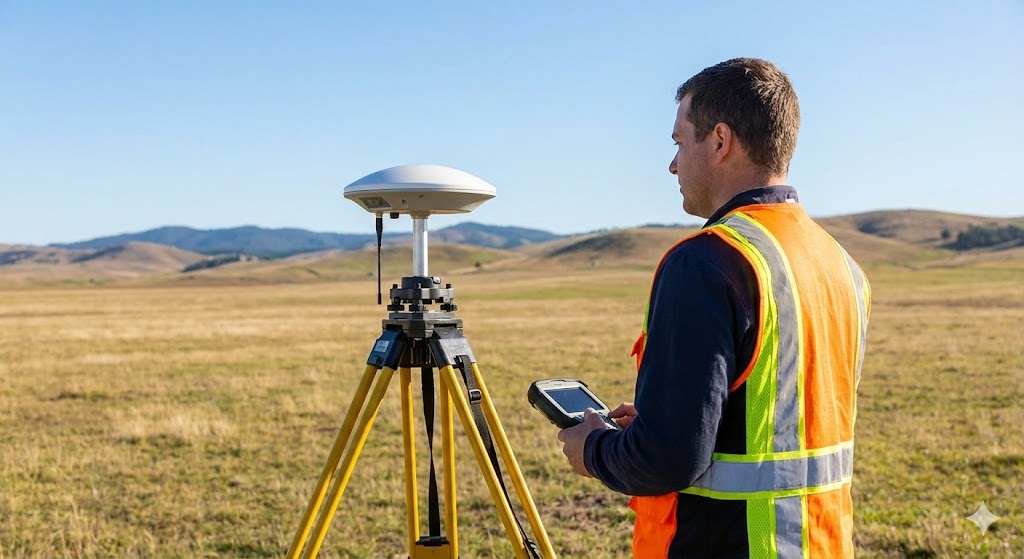

 Land Surveying & Geodesy Ideal for high-precision topographic surveys, boundary marking, and geodetic network establishment. |  RTK/PPK Base Stations Provides stable reference signals for Real-Time Kinematic (RTK) and Post-Processed Kinematic (PPK) correction networks. |

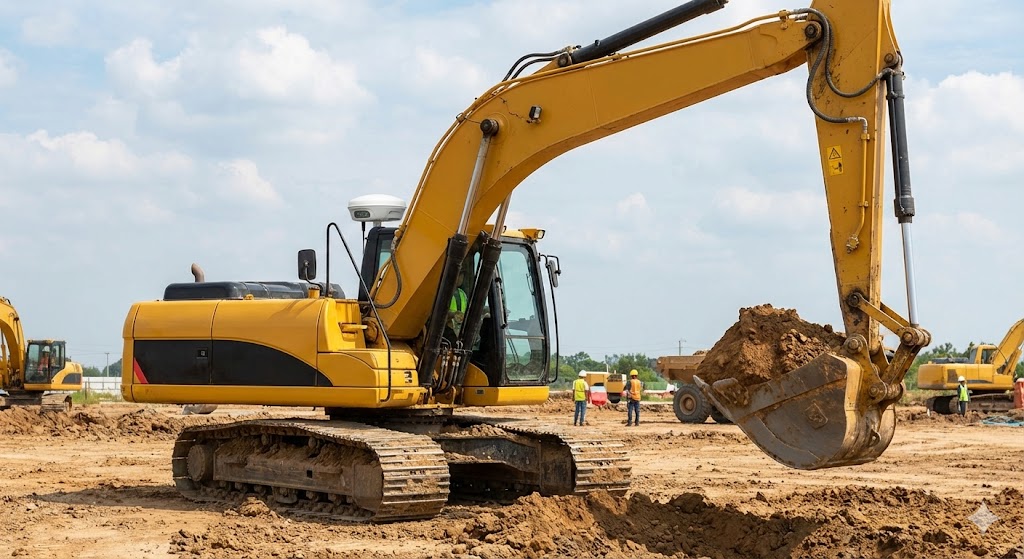

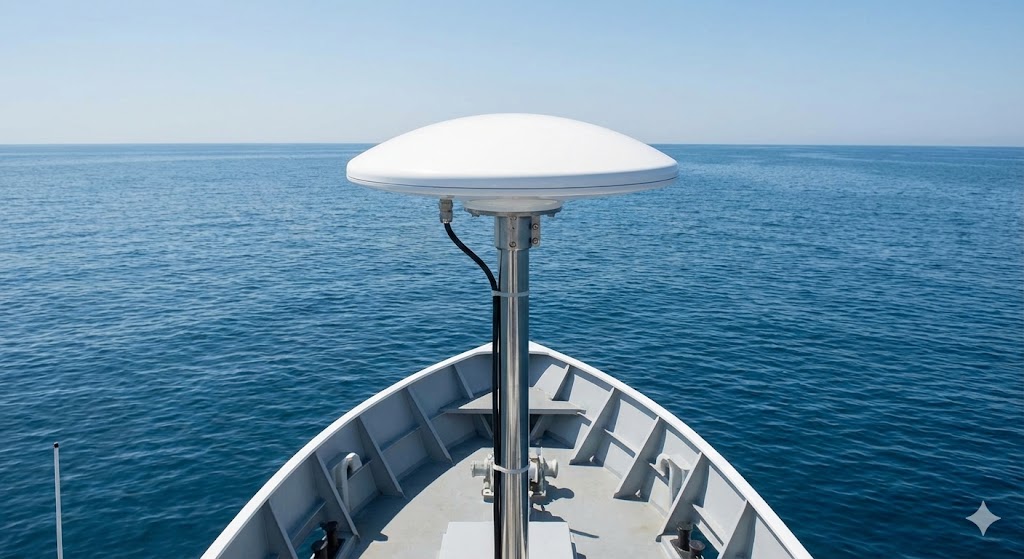

 Machine Control & Guidance Used on excavators, bulldozers, and graders for automated grade control and precision earthmoving. |  Marine & Hydrographic Survey Enables precise positioning for bathymetric surveys, dredging operations, and marine navigation systems. |
Request Quote Request Sample Download PDF
MOQ Available upon request | Lead Time Available upon request | Warranty Available upon request |
Full datasheet, installation guide, and compliance certificates are available for download or upon request. Please contact sales for specific documentation needs.
It supports GPS (L1, L2, L5), GLONASS (G1, G2, G3), COMPASS/BeiDou (B1, B2, B3), and Galileo (E1, E2, E5a, E5b, E6), covering the major signals for high-precision, multi-constellation operation.
This low phase center error is critical for surveying and RTK applications, as it minimizes position errors caused by antenna geometry, ensuring higher measurement accuracy. The exact value is guaranteed per datasheet.
The LNA operates on a wide voltage range of 3 to 16V DC, with a current consumption of ≤60mA. This flexibility allows compatibility with various survey receivers and power systems.
It uses a screw mounting method for a secure, fixed installation. The RF output is provided via a standard TNC female connector.
The antenna is rated IP67, offering protection against dust and temporary immersion. The note "excluding air vent in screw hole" indicates the IP rating is maintained when the vent in the mounting screw hole is not obstructed.
Yes, with its robust ASA radome, IP67 protection, wide operating temperature range, and low phase center stability, it is well-suited for permanent, unattended base station setups.
The antenna provides a full 360° horizontal coverage angle, ensuring signal reception from all directions.
The product is ROHS compliant, as stated in the datasheet. For other specific certifications (e.g., CE, FCC), please confirm with sales.
Yes, sample requests are possible. Please use the "Request Sample" button to initiate the process. Sample availability and terms can be confirmed with our sales team.
The datasheet does not specify cable inclusion. Please inquire with sales for cable options, lengths, and connector types based on your application needs.
Lead time varies based on order quantity and customization. Please request a quote for the most accurate timeline information.
Customization options may be available. Please contact our sales team with your specific requirements to discuss feasibility.
For technical specifications verification, customization inquiries, volume pricing, or any questions not covered above, please contact our sales team. Specifications are subject to change; refer to the latest datasheet for confirmation.
