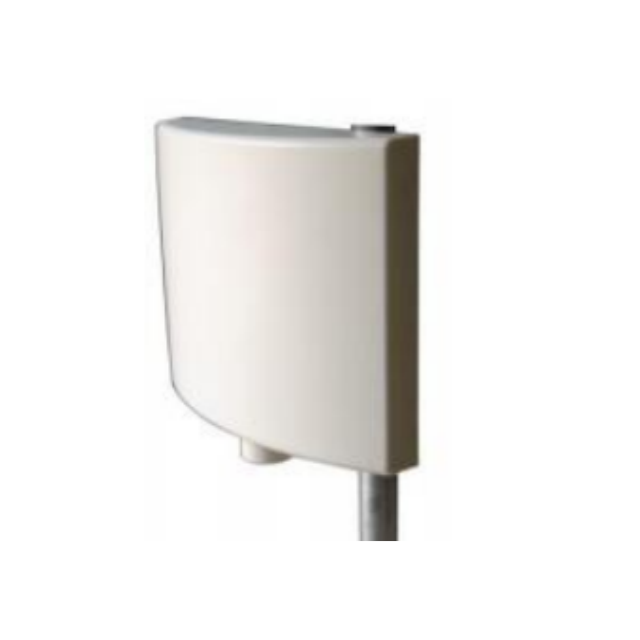

800MHz Directional panel Antenna with N Female Connector GL-DY800V7

Product Introduction

1. High Gain & Precision Beamwidth
   Delivers 6.7dBi gain with focused 60° horizontal and 50° vertical beamwidths, ensuring strong signal directionality and reduced interference.

2. Ultra-Low VSWR for Optimal Efficiency
   VSWR ≤1.5 maximizes power transfer and minimizes signal loss, ideal for high-performance communication systems.

3. Rugged Design for Harsh Environments
   Built for industrial use with DC Ground lightning protection and wall/rack mounting options. Withstands demanding outdoor conditions.

4. Supports High-Power Applications
   Handles up to 100W max power, perfect for cellular networks, public safety, and long-range communication systems.

5. Broad Frequency Compatibility
   Covers 824-896MHz, suitable for GSM, LTE, and industrial IoT applications across multiple regions.

Application Scenarios

• Cellular Network Expansion: Enhance signal coverage for mobile base stations in urban or rural areas.

• Public Safety Systems: Deploy in emergency communication towers for police/fire departments.

• Industrial IoT Hubs: Connect sensors and devices in factories or mining operations.

• Remote Telemetry: Monitor infrastructure in oil/gas pipelines or wind farms.

• Transportation Networks: Install on railway or highway communication towers.

FAQ

Q:Is this antenna waterproof?
A:While not fully waterproof, it’s designed for outdoor durability. For extreme conditions, add a protective radome .

Q:What connector type does it use?
A:Equipped with an N female connector for secure, high-frequency connections.

Q:Can it be mounted on non-metal surfaces?
A:, it supports wall or rack mounting on various surfaces using brackets (included).

Q:Is it compatible with 900MHz systems?
A:No, it’s optimized for 824-896MHz. Check our 900MHz models for other frequencies.

Q:What’s the antenna’s weight?
A:Lightweight at 0.7kg, ensuring easy installation and minimal structural load.

Q:Does it require grounding?
A:Yes, the DC Ground lightning protection feature requires proper grounding for safety.

Q:What’s the F/B Ratio?
A:The front-to-back ratio is ≥20dB, reducing interference from rear signals.

Q:Is it ROHS compliant?
A:Yes, this antenna meets ROHS environmental standards.
