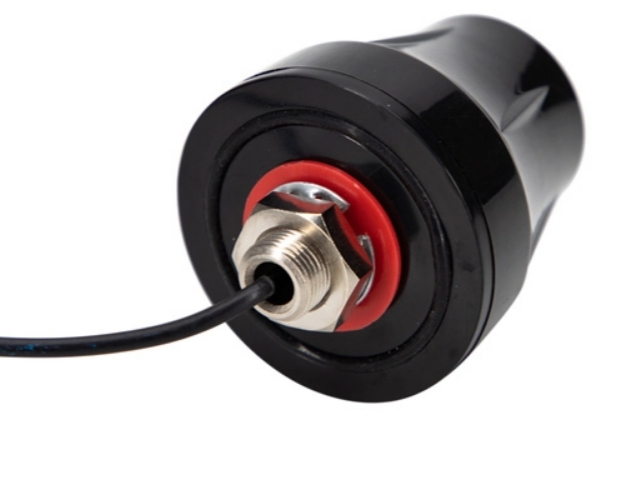

4G Screw Antenna RG174 Cable SMA connector GL-DY058

Frequency Range：824~960/1710~2670MHz
SMA connector
Product description: The 4G Screw Antenna with an RG174 cable and SMA connector, along with an ABS radome material, is a specialized component designed for outdoor wireless communication systems. Such antennas are common
INQUIRY

Item		Specifications
Antenna	Frequency Range	824~960/1710~2670MHz
	Polarization	Linear
	Gain	2dBi（Zenith）
	V.S.W.R	＜2.0
	Impedance	50Ω
Mechanical	Cable	RG174 or others
	Connector	SMA or others
	Radome Material	ABS
	Mounting Method	Screw
Environmental	Operating Temperature	-40℃~+85℃
	Relative Humidity	Up to 95%
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
	Environmentally Friendly	ROHS Compliant

This type of antenna is usually attached to the device by screws. It is designed to provide good directivity and gain to enhance signal reception and transmission capabilities.

RG174 Cable: This is a commonly used RF cable with good high-frequency performance. The small diameter of the RG174 cable makes it suitable for equipment requiring a compact design. It uses a coaxial structure, consisting of an inner conductor, an insulating layer, a shielding layer and an outer conductor, which can effectively transmit radio frequency signals.
