  • SMD Patch Antenna CA-L01 for 4G Applications

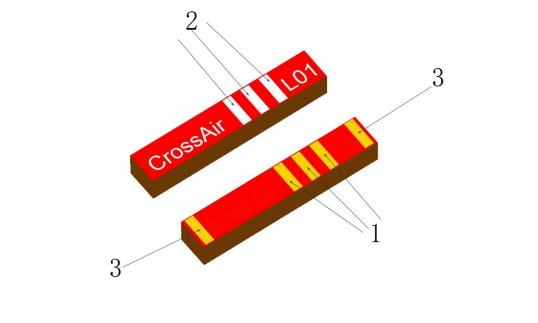

SMD Patch Antenna CA-L01 for 4G Applications

SMD Patch Antenna CA-L01 for 4G Applications

  • Product description: Features 1.Small Size 23.0 X 3.5 X 1.6mm SMD Patch Antenna 2.Low energy loss，High antenna efficiency 3.High stability under conditions of temperature and humidity changes
  • INQUIRY

GLCA-L01

Specification

Working Frequency

824M-960MHz, 1710M-2700MHz

Impedance

50Ω

Gain(dBi)



(700-960MHz)

3.3dBi（Peak）



(1710-2170MHz)

2.0dBi（Peak）



(2300-2700Mhz)

2.0dBi（Peak）

VSWR

<3.5

Operation Temperature

-40℃~+85℃

Power Capacity

4W

Features

1. Small  Size  23.0 X 3.5 X 1.6mm SMD Patch Antenna

2. Low energy loss，High antenna efficiency

3.High stability under conditions of temperature and humidity changes

Applications

LTE/4G/3G/2G/WCDMA/GSM/CDMA/NB-IoT band for internal antenna using.
