Electrical Index |
||
|
Product Name |

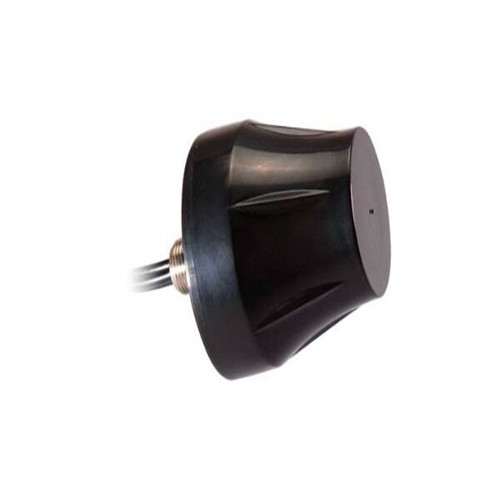

LTE+WIFI Antenna |
|
|
Product Number |
GL-DY058W |
|
|
Frequency Range-MHz |
806-960/1710-2690 |
2400-2483.5 |
|
Band Width-MHz |
154/980 |
83.5 |
|
V.S.W.R |
≤2.0 |
|
|
Gain-dBi |
2.0 |
3.0 |
|
Polarization |
Linear |
Linear |
|
Input Impedance-Ω |
50 |
|
|
Mechanical Index |
||
|
Connector |
SMA male |
|
|
Antenna Dimension-mm |
50×48 |
|
|
Installation way |
Screw |
|
|
Ingress Protection |
IP65-IP67(exclude cable outlet) |
|
|
Vibration |
10 to 55MHz with 1.5mm amplitude 2 hours |
|
|
Relative Humidity |
Up to 95% |
|
|
Environmentally Friendly |
ROHS Compliant |
|
|
Temperature-℃ |
-40-+85 |
|
Product Introduction
Dual - band Functionality：Operating in the 806 - 960/1710 - 2690MHz LTE bands and 2400 - 2483.5MHz WIFI band, the GL - DY058W offers versatile connectivity. It allows devices to access both LTE mobile networks and WIFI networks, providing users with seamless switching between the two for better coverage and speed.
Decent Signal Gain：With a 2.0 dBi gain for LTE and 3.0 dBi gain for WIFI, the antenna effectively boosts signal strength. This helps in extending the range of both LTE and WIFI signals, reducing signal dropouts and ensuring a more stable connection, whether for mobile data or local wireless networking.
Low VSWR and Standard Impedance：Featuring a V.S.W.R of ≤2.0 and an input impedance of 50Ω, the antenna ensures efficient power transfer. A low VSWR minimizes signal reflection, meaning more power is used for signal radiation. The 50 - ohm impedance is a standard in the industry, facilitating easy integration with other components in wireless devices.
Robust Protection and Durability：With an Ingress Protection rating of IP65 - IP67 (excluding cable outlet), the antenna is highly resistant to dust, water, and other environmental elements. It can withstand harsh outdoor conditions, making it suitable for a wide range of applications, including outdoor wireless access points, vehicles, and industrial setups.
Environmentally Friendly and Versatile Installation：Being ROHS compliant, it is environmentally friendly. The screw - type installation method provides a stable and secure mounting option, allowing for easy installation on various surfaces, whether it's on a building wall, a vehicle roof, or an industrial equipment rack.
Industrial IoT Gateways: Ensures stable connectivity in factories or smart grid systems.
Outdoor Wireless Routers: Withstands rain, dust, and temperature fluctuations.
Vehicle-Mounted Communication Systems: Vibration-proof for trucks, ships, or drones.
Smart City Infrastructure: IP67 rating suits traffic monitoring or public Wi-Fi hotspots.
Remote Telemetry Stations: Survives extreme climates for mining or agricultural monitoring.
Q: What networks does this antenna support?
A: It covers LTE (806-960/1710-2690MHz) and WiFi (2.4GHz), compatible with 4G/5G.
Q: Is the cable outlet IP67-rated?
A: No, IP67 protection excludes the cable outlet. Use waterproofing accessories for full sealing.
Q: Can it handle 5GHz WiFi?
A: No, it’s optimized for 2.4GHz WiFi. For 5GHz, check other models.
Q: What’s the gain for LTE vs. WiFi?
A: LTE bands have 2.0dBi gain, while WiFi reaches 3.0dBi for stronger signal coverage.
Q: Is this antenna suitable for marine use?
A: Yes, its corrosion-resistant build and humidity tolerance make it ideal for marine applications.
Q: How to install it securely?
A: Use the screw-mounting design for fixed installations on surfaces like poles or vehicle rooftops.
