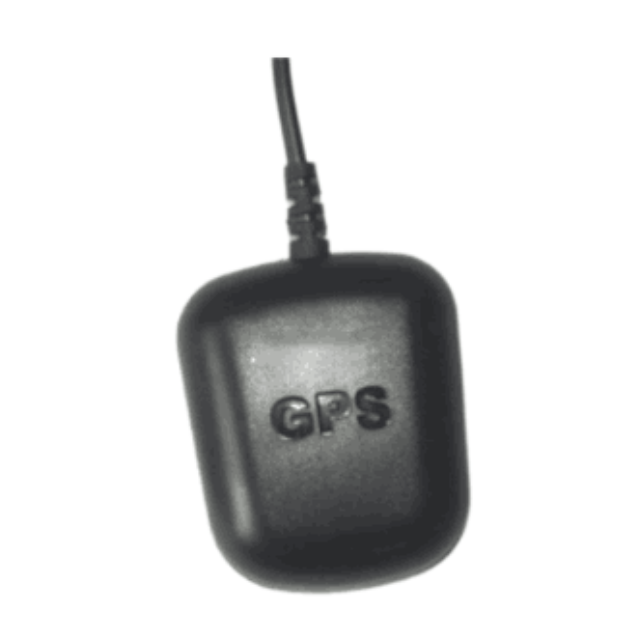

GPS Receiver Module RS232 DB9 Plug GL-DY26

Product description: GPS Receiver Module RS232 DB9 Plug GL-DY26
INQUIRY

GPS MOUSE			GL-DY26
Receiving Frequency band	L1: 1575.42MHz	Receiving channel			56CH
Direction	<0.5 Degrees	Rate			<0.1m/s
Timing accuracy	30 ns	Reference coordinate system		WGS-84
Maximum altitude	50000M	Maximum speed		500 m/s
Acceleration	≦4g	Tracking sensitivity		-162dBm
Capture the sensitivity	-160dBm	Standard clock pulse		0.25Hz-1KHz
Location update rate	1Hz-10Hz(default 1Hz)	The start up time		32(typical)
UART/TTL port interface(default)	RS232 port interface(default)	Warm start time		32(typical)
Hot start	1(typical)	AGPS			3s
Output	NMEA 0183 V3.0(GGA,GSA,GSV,RMC,VTG,GLL)protocol
Electrical interface	Wide voltage range: the main power supply 3.3-5V, Owned RTC Power
Data rate	9600bps(default) (optional: 1200,2400,4800,19200,38400,57600,115200,230400,460800,921600)
Cable long	2m	C/A Code,1023MHz code stream
Positioning performance	<2.5M(Autonomous)(50%) <2M(SBAS)

Normal working conditions

Parameters	Min	Standard	Max
The power supply voltage(V)	3.3	5	5.5
Working temperature(℃)	-40	--	85
Working current(mA)	25	30	35

Extreme operating conditions

Parameters	Min	Standard	Max
The power supply voltage(V)	-0.3	--	5
The output voltage(V)	-0.3	--	3.6
Working temperature(℃)	-40	--	85
Storage temperature(℃)	-55	--	100

RTC Power supply conditions(RTC power module power,life time is about 2.5Hour)

Parameters	Min	Standard	Max
RTC the power V supply voltage	1.8	3.0	3.6
Current consumption(Working)uA	--	15	--
Current consumption(Dormancy)	--	--	--

Level digital interface

Parameters	Min	Standard	Max
High level input voltage(V)	2.0	2.8	3.3
Low level input(V)	--	--	0.8
High level output(V)	2.4	2.8	3.3
Output low level(V)	--	--	0.4

Product highlights

●High Sensitivity GPS Receiver Module: The GL-DY26 GPS Receiver Module features an industry-standard 25*25mm antenna, delivering exceptional sensitivity and reliable positioning information for various applications.

●Versatile Communication Interface: Equipped with a UART/TTL port and a DB9 plug, this GPS receiver module ensures seamless connectivity and easy integration with your devices, making it ideal for both hobbyist and professional use.

●Precision Engineering: Utilizing KDS 0.5PPM High-Precision TCXO and built-in RTC Crystal, the GL-DY26 significantly enhances start-up time and position accuracy, allowing for a faster and more reliable GPS performance.

●Enhanced Configuration Options: With built-in EEPROM and a wealth of rich configuration parameters, this module allows users to customize settings easily, ensuring optimal performance and adaptability for different environments.

●Comprehensive Support for A-GPS Services: The GL-DY26 supports both Assist Now online and offline A-GPS services, along with a location update rate of 1-5Hz, providing superior functionality in challenging conditions.

FAQ

Q: Can I get one sample?
A: Yes, sample is available.
Q: What's the delivery time?
A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, Western Union etc.
Q:May I visit your company?
A: Sure, welcome any time.
Q: How long of the warranty?
A: one year for antennas and half a year for assembly cables and Connectors
