3G Smaller Patch Antenna for 3M Tape Mounting GL-DY107

Product description: atch antennas, also known as microstrip antennas, are a popular choice for wireless communication applications due to their compact size, low profile, and ease of integration.
INQUIRY

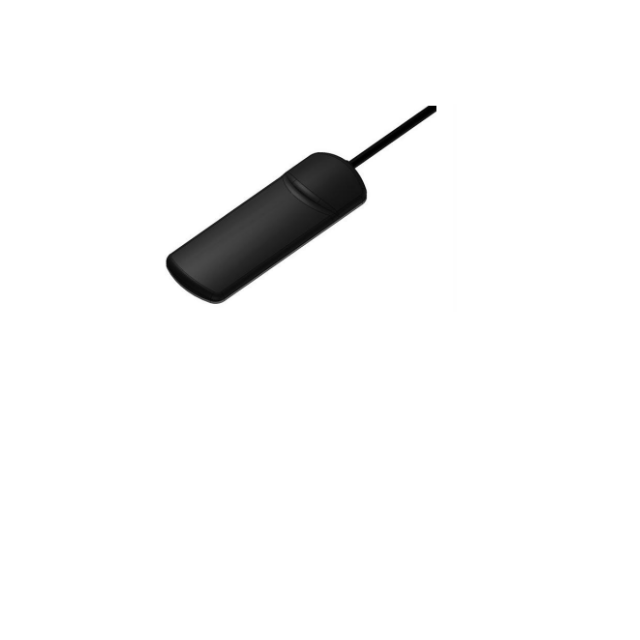

868MHz Sticky Antenna
GL-DYG107
Electrical Index
Frequency-MHz	868
VSWR	＜1.5
Nominal Impedance-Ω	50
Polarization	Vertical
Gain-dBi	2.5
Mechanical Index
Cable Length	RG174 or RG1.13
Connector	UFL
Antenna Dimension-mm	115.621.75.8
Installation Way	3M sticky
Vibration	10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly	ROHS Compliant
Temperature-℃	-40～＋85
Humidity-﹪	5～95

Patch antennas, also known as microstrip antennas, are a popular choice for wireless communication applications due to their compact size, low profile, and ease of integration.

These features make patch antennas a popular choice in wireless communication systems, including mobile devices, IoT devices, wireless routers, satellite communication, and many other applications where compact size, low profile, and reliable performance are essential.
