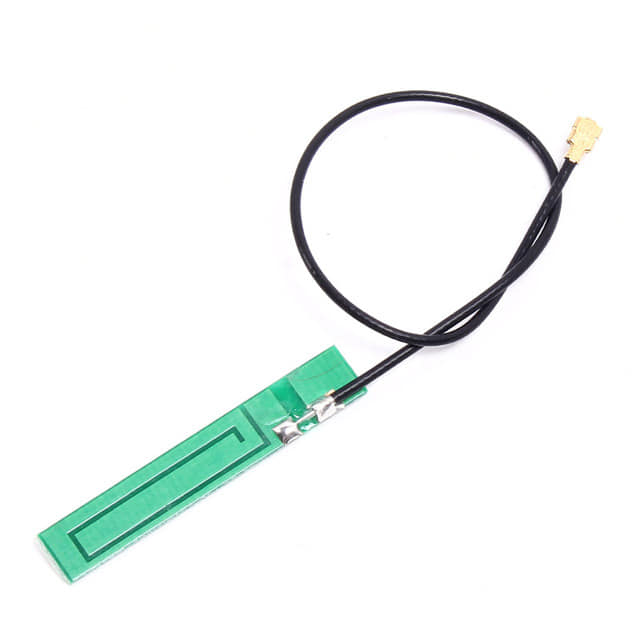

4G Internal Patch Antenna IPEX connector PCB Antenna GL-DY131

Product description: This 4G internal patch antenna is a miniaturized antenna designed for 4G communication devices, usually used in mobile phones, tablets, routers, etc. It is connected to the device motherboard through
INQUIRY

1 Electrical specifications

Frequency range（MHz）	698-960/1710-2690
Gain（dBi）	3
Polarization	Vertical
Impedance (Ω)	50
Max Power (W)	50
VSWR	≤2.0

2 Mechanical specifications

Connector

IPEX

Dimensions(mm)

35x5x0.8

Cable

RG1.13/RG1.37

Temperature (℃)

-30~60

Humidity (%)

5~95

The role of the 4G internal patch antenna through the IPEX connector is to improve the device's signal reception and transmission capabilities, support multiple frequency bands, so as to adapt to different 4G network standards and frequencies, this antenna is not only suitable for mobile phones and tablets, but also widely used in a variety of Internet of things devices and other communication devices that require built-in antennas.
