Magnet Antenna

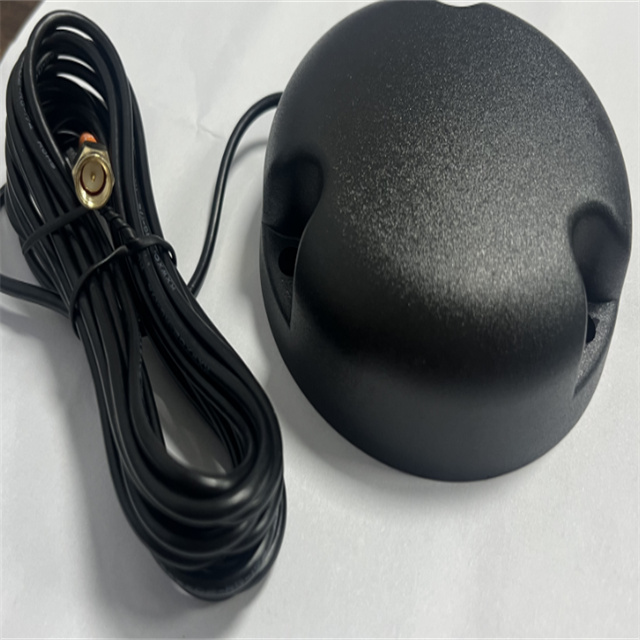

4G Magnet or Adhesive Antenna with 3m Cable And SMA Male GL088

Product description: 4g magnetic mounting antenna with 90mm diameter and 30mm thickness The 4G magnetic mounting antenna with 90mm diameter and 30mm thickness provides a strong and stable signal reception for high-speed
INQUIRY

Electrical Properties
Frequency	704-880;960-1710;1880-1990;2100-2700MHz
Impedance	50 0hm Nominal
VSWR	3.0MAX
GAIN	3.5DBI
Power max.	10V
Connector	SMA PLUG
Antenna installation method:	1. 3M adhesive 2. Lock screw
Physical Properties
Antenna Material	Antenna Cover : Tpe Antenna Base : ABS
Cable Type	RG-174 CABLE
Dimension-mm	⊘90*30
Connector	SMA male
Operating Temp.	-40~ +85 C
Storage Temp.	+45 ~ +85 。C
Cable Color	BLACK

The 4G magnetic mounting antenna with 90mm diameter and 30mm thickness provides a strong and stable signal reception for high-speed internet connectivity. Its innovative design ensures optimal performance in various environments, making it an ideal choice for both indoor and outdoor use.The GSM Antenna has a frequency range of 824~960MHz/1710~2170MHz, V.S.W.R less than 2.0, linear polarization, gain of 2.0dBi, and impedance of 50Ω. It is made of ABS radome and cast aluminum base, with mounting method using screws. The antenna is environmentally friendly, operating in temperatures from -40℃ to +85℃, with up to 95% relative humidity and IP67 ingress protection. It is also ROHS compliant.
