Wideband 2332MHz Ceramic GPS Antenna GL2806B

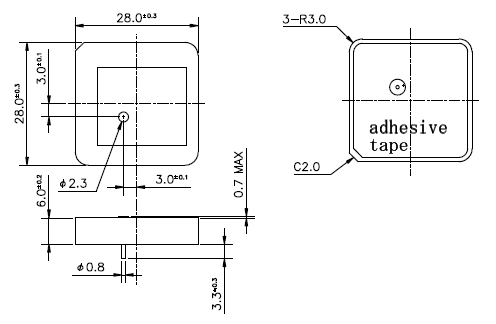

2.Dimension

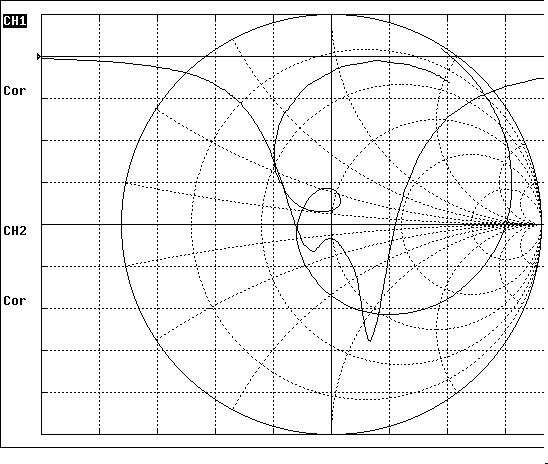

3.Impedance Characteristic

4.Product Introduction

●Ultra-Wide 120MHz Bandwidth
Delivers robust signal reception across a broad frequency range (2332.5±10MHz), ideal for multi-band GPS and satellite communication systems.

●LHCP Polarization for Precision
Left-Hand Circular Polarization (LHCP) reduces signal interference and multipath errors, ensuring reliable performance in GPS navigation and IoT applications.

●Extreme Temperature Resilience
Operates flawlessly from -40°C to +105°C and survives thermal cycling (-40°C↔105°C), perfect for harsh outdoor or industrial environments.

●Industrial-Grade Durability
Passes rigorous vibration (10–55Hz), humidity (90–95% RH), and soldering tests (260–290°C), ensuring long-term reliability in demanding setups.

●Optimized Ground Plane Compatibility
Designed for seamless integration with 60x45mm ground planes, simplifying PCB layouts for drones, telematics, and smart sensors.

Application scenarios

• GPS Navigation Systems: Ensures stable tracking in automotive, marine, or aviation GPS units.

• Industrial IoT Networks: Withstands factory vibrations and extreme temperatures for machinery monitoring.

• Satellite Communication: LHCP enhances signal clarity in satellite ground stations.

• Outdoor Asset Tracking: Resists humidity and thermal stress in logistics or agriculture sensors.

• Drone Telemetry: Lightweight design supports high-precision UAV positioning.

FAQ

Q:What is the bandwidth of this antenna?
A:It offers a minimum -10dB bandwidth of 120MHz, ensuring stable performance across varying frequencies.

Q:Does it require a specific ground plane?
A:Yes, optimal performance requires a 60x45mm ground plane (customer-provided).

Q:Can it handle high-temperature soldering?
A:Yes, terminals withstand 260–290°C soldering baths with ≥95% solder coverage.

Q:Is LHCP suitable for urban GPS use?
A:Absolutely—LHCP minimizes multipath interference in GPS-challenged environments like cities.

Q:How durable is it against vibrations?
A:Tested for 2h per axis (x/y/z) at 10–55Hz, making it ideal for automotive or industrial equipment.

Q:What’s the operating temperature range?
A:Functions reliably from -40°C to +105°C, with storage up to 105°C.
