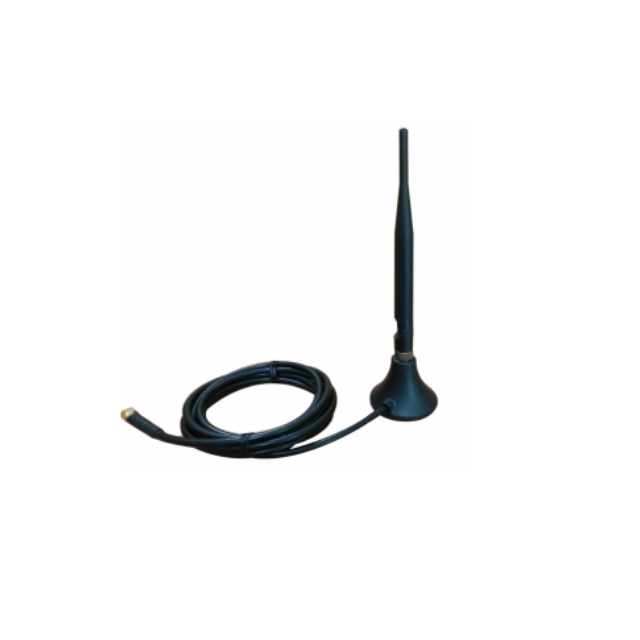

3.5G Magnet Antenna |
|
|
GL-DY091 |
|
|
Electrical Index |
|
|
Frequency-MHz |
3400-3600 |
|
VSWR |
＜1.8 |
|
Gain-dBi |
5 |
|
Normal Impedance-Ω |
50 |
|
Max Power-W |
50 |
|
Polarization |
Vertical |
|
Mechanical Index |
|
|
Cable Length |
RG174,2m |
|
Connector |
SMA male |
|
Antenna Dimension-mm |
241 |
|
Weight-g |
180 |
|
Installation Way |
Magnet |
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
Environmentally Friendly |
ROHS Compliant |
|
Temperature-℃ |
-40～＋85 |
|
Humidity-﹪ |
5～95 |
The 3.5G magnet antenna GL-DY091 is a powerful tool that enhances connectivity for a wide range of devices.
The 3.5G magnet antenna GL-DY091 is a powerful tool that enhances connectivity for a wide range of devices. It operates within a frequency range of 3400-3600MHz with a VSWR of less than 1.8, providing a gain of 5dBi. The antenna has a normal impedance of 50Ω and can handle a maximum power of 50W. Its vertical polarization ensures efficient signal transmission. With a cable length of 2m and an SMA male connector, the antenna is easy to install and use. Weighing 180g and measuring 241mm in dimension, it is designed for stability and durability. The antenna is environmentally friendly, ROHS compliant, and can operate in temperatures ranging from -40℃ to +85℃ with a humidity level of 5-95%. Its magnet base allows for easy installation and stability even under vibrations of 10 to 55Hz with 1.5mm amplitude for 2 hours.
