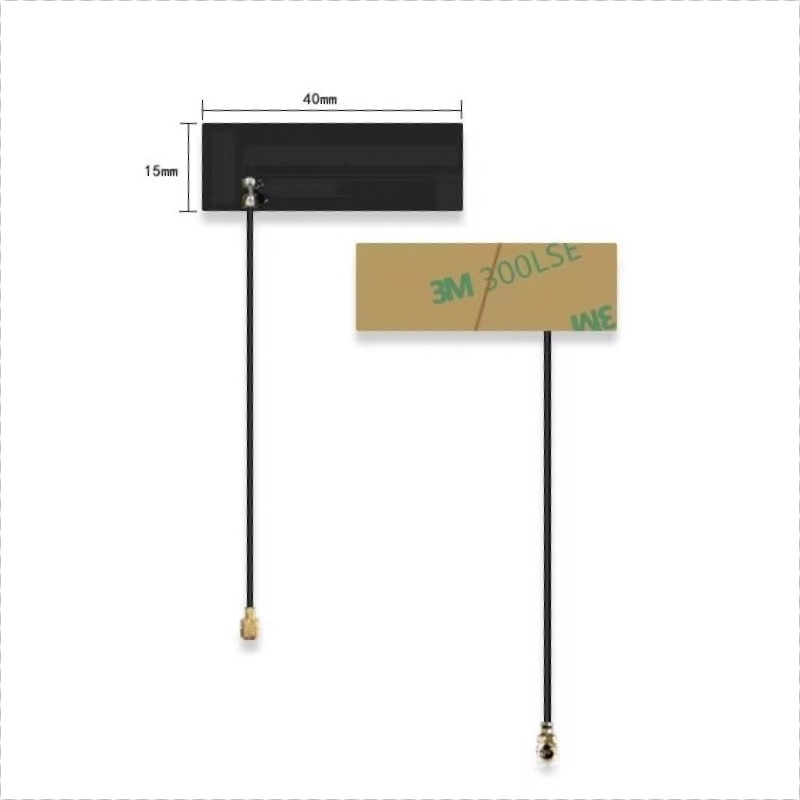

3G Internal Patch Antenna IPEX connector GL-DY146

Product description: With 3dBi gain, this 3G internal antenna is specifically designed to boost signal strength and provide reliable connections for a wide range of devices, ideal for smartphones, routers and other wirele
INQUIRY

1 Electrical specifications

Frequency range（MHz）	700-2700
Gain（dBi）	3
Polarization	Vertical
Impedance (Ω)	50
Max Power (W)	50
VSWR	≤2.0

2 Mechanical specifications

Connector

IPEX

Dimensions(mm)

40.4x15.4x0.1

Cable

RG1.13-150mm

Temperature (℃)

-30~60

Humidity (%)

5~95

The 3G Internal Patch Antenna with an IPEX connector is a compact and efficient solution designed specifically for mobile devices, routers, and various wireless applications. Leveraging high-quality PCB material, this antenna ensures reliable performance and enhanced signal reception in a wide range of environments. Its internal design allows for seamless integration within devices, making it an ideal choice for manufacturers looking to optimize space without compromising on connectivity. The IPEX connector further enhances its versatility, facilitating easy installation and maintenance. With its ability to support 3G networks, this antenna plays a crucial role in delivering fast and stable wireless communication, meeting the growing demands of modern technology.
