GLR915 is a high-performance 915MHz rubber antenna designed for 902-928MHz ISM band applications. Features 5dBi gain, RP-TNC male connector, right-angle design for space-saving installation. Ideal for LoRa gateways, IoT devices, and industrial wireless equipment. RoHS compliant, -40 to +85°C operating range.
Home > Product > Rubber Antennas > GLR915

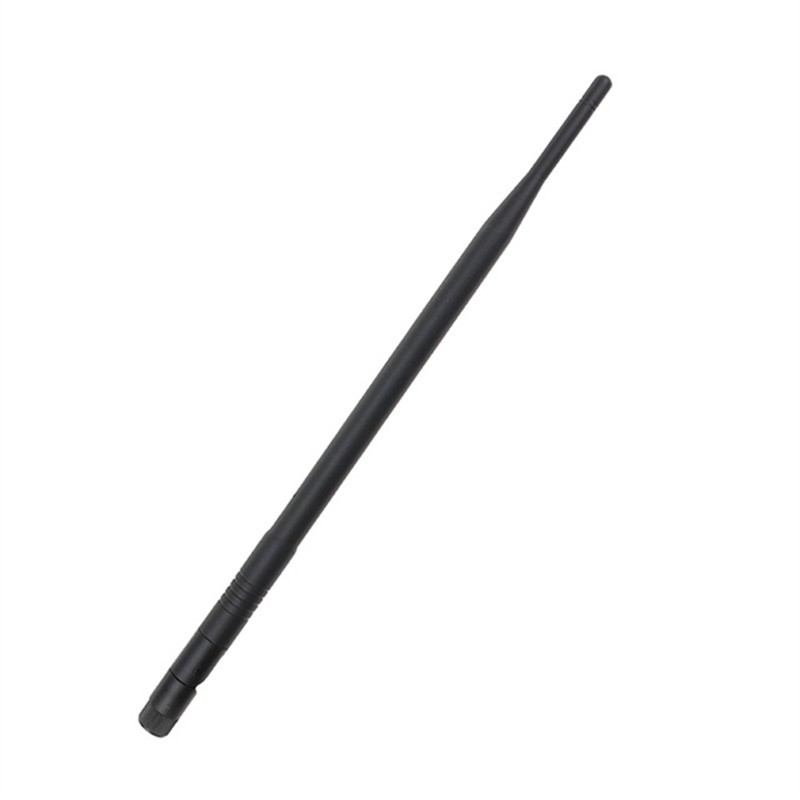

GLR915 is a 900 MHz rubber antenna for 902-928 MHz applications, designed with a long antenna body and a right-angle RP-TNC male connector.
Based on the attached GLR915 datasheet, this model covers 902-928 MHz, uses 50 Ohm impedance and linear polarization, and has an antenna dimension of 14 x 395 mm. The product images show a right-angle connector structure that helps when the device side has limited installation space.
The attached testing file also provides gain and efficiency reference data across 900-930 MHz, showing stable performance around the 915 MHz center frequency.
902-928 MHz frequency range for 900 MHz ISM band applications
5 dBi nominal gain according to the attached PDF
RP-TNC plug (male) connector

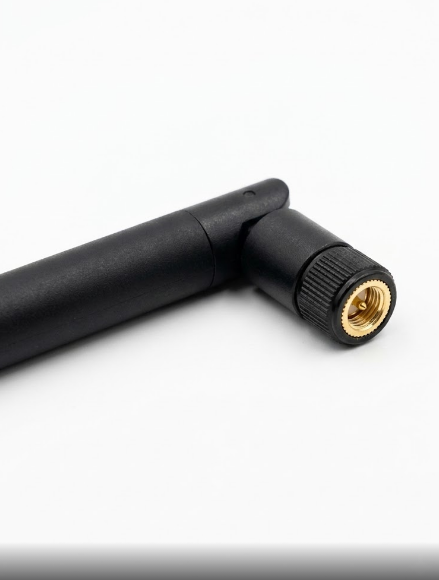

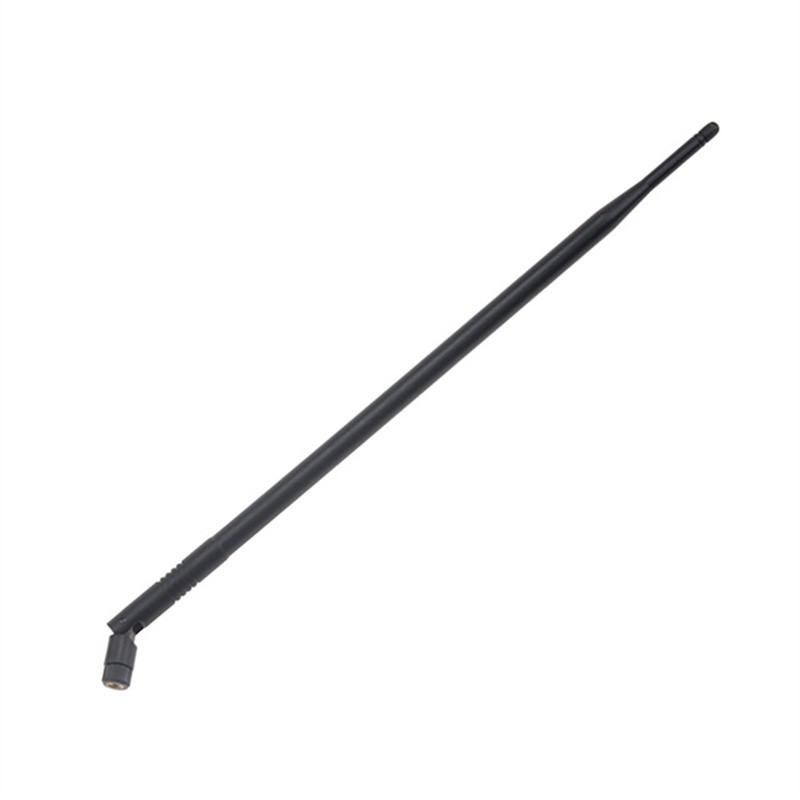

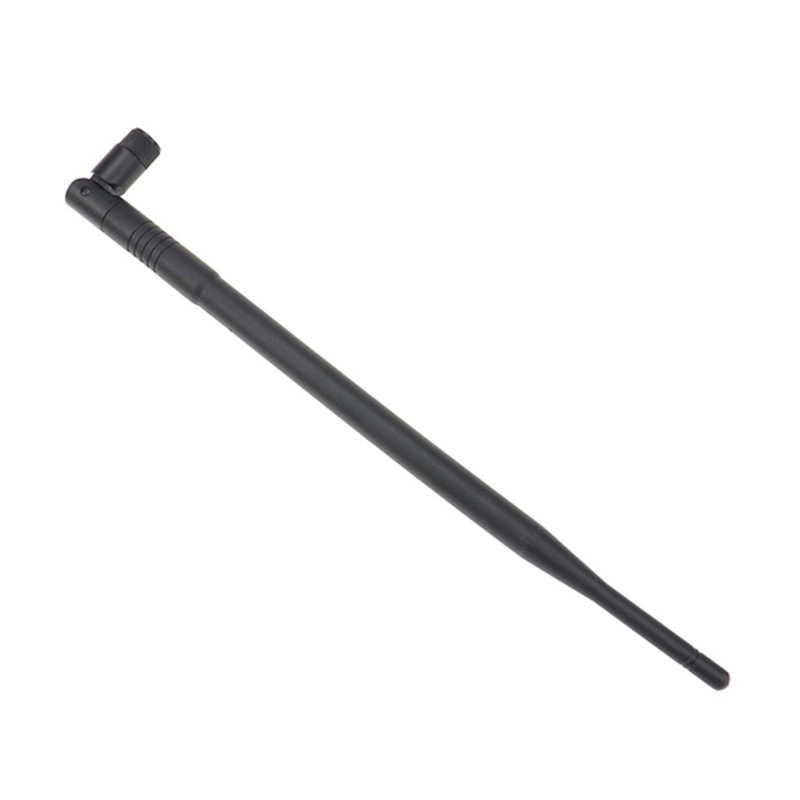

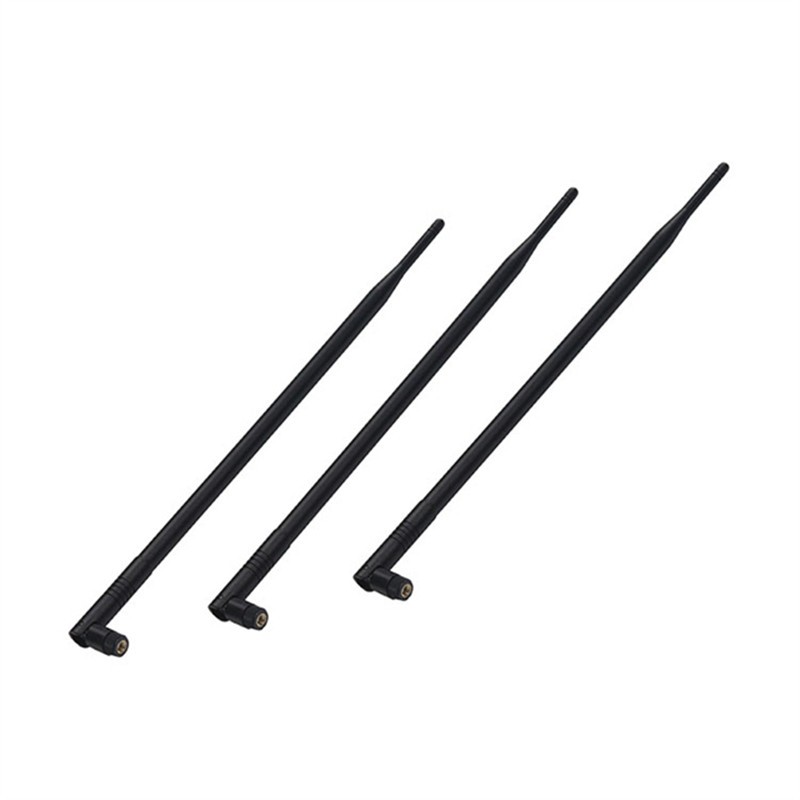

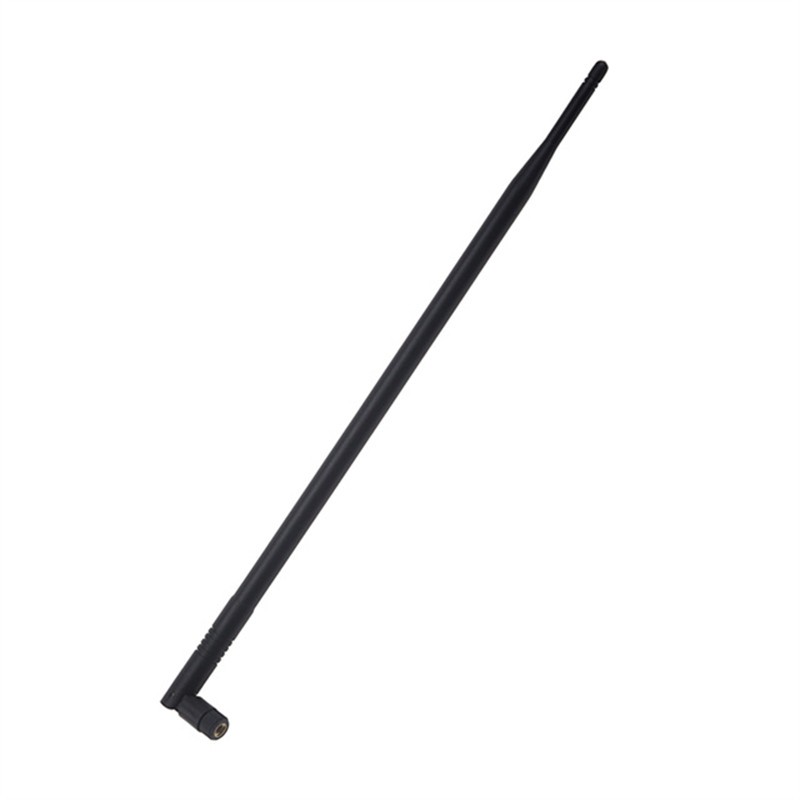

Right-angle connector structure shown in the product images
Long rubber antenna body for practical device installation
RoHS compliant
Operating temperature range: -40 to +85 degrees C
| Parameter | Specification |
|---|---|
| Model | GLR915 |
| Product Type | 900 MHz Rubber Antenna |
| Frequency Range | 902-928 MHz |
| Gain | 5 dBi |
| VSWR | <= 2.0 |
| Impedance | 50 Ohm |
| Polarization | Linear |
| Connector | RP-TNC Plug (Male) |
| Antenna Dimension | 14 x 395 mm |
| Temperature | -40 to +85 degrees C |
| Humidity | 5% to 95% |
| Compliance | RoHS |
The following data is taken from the attached file 902-928-R915 Testing..xlsx.
| Frequency (MHz) | Gain (dBi) | Efficiency (dB) | Efficiency (%) |
|---|---|---|---|
| 900 | 2.95 | -1.36 | 73.18 |
| 905 | 2.95 | -1.46 | 71.47 |
| 910 | 3.16 | -1.40 | 72.46 |
| 915 | 3.09 | -1.56 | 69.84 |
| 920 | 3.20 | -1.58 | 69.43 |
| 925 | 3.21 | -1.71 | 67.42 |
| 930 | 3.25 | -1.78 | 66.35 |
915 MHz gateways and routers
Industrial wireless devices
IoT and ISM band equipment
Devices requiring side-exit antenna installation
Q1: What frequency band does GLR915 support?
It supports 902-928 MHz.
Q2: What connector does this antenna use?
It uses an RP-TNC plug (male) connector.
Q3: What is the antenna size?
The antenna dimension is 14 x 395 mm.
Q4: What is the rated gain?
The nominal gain in the attached PDF is 5 dBi.
Q5: Can it be used in industrial environments?
The datasheet specifies -40 to +85 degrees C and 5% to 95% humidity.
Data source: GLR915.pdf, 902-928-R915 Testing..xlsx, and the product images in the same folder.
