GLC8102 MCX female to MCX male RG174 cable assembly, 50 meter length for long-run RF extension. Pure copper conductor, 0-6GHz tested, 17KGS tensile strength. Ideal for distributed equipment layouts and long-distance RF routing. RoHS compliant, -40 to +85°C operating range.
Home > Product > Anterna related products > GLC8102
GLC8102 is an MCX female to MCX male RG174 assembly cable with a 50 meter cable length for long-run RF extension applications.
The assembly uses MCX female and MCX male connector ends with RG174 cable construction. The standard cable length is 50 m and the cable material is identified as pure copper. The environmental specification is -40 to +85 degrees C with 5% to 95% humidity and RoHS compliance.
Available test references include VSWR and S21 data from 0 to 6 GHz, and the listed RG174 tensile strength is 17 KGS. GLC8102 is suited to projects that require an extra-long MCX jumper or extension cable with a defined measured reference.
| MCX Female to MCX Male LayoutThe cable provides a direct MCX female to MCX male extension structure. | RG174 Cable, 50 m LengthThe assembly uses RG174 coaxial cable with a standard 50 meter length. |
| Long-Run RF ExtensionThe 50 meter structure supports installations that need extended routing distance. | 0-6 GHz Test ReferenceAvailable VSWR and S21 data provide a performance reference for the cable sample. |
| Pure Copper Cable MaterialThe product note identifies pure copper as the cable material. | Industrial Temperature RangeThe specified range is -40 to +85 degrees C with 5% to 95% humidity. |
| System | Parameter | Specification |
|---|---|---|
| Electrical / Assembly | Model | GLC8102 |
| Product Type | Assembly cable | |
| Connector End A | MCX female | |
| Connector End B | MCX male | |
| Cable Type | RG174 | |
| Cable Length | 50 m | |
| Compliance | RoHS compliant | |
| Material | Cable Material | Pure copper |
| Cable Construction | RG174 coaxial cable assembly | |
| Environmental | Operating Temperature | -40 to +85 degrees C |
| Humidity | 5% to 95% | |
| Test Data | VSWR / S21 Test Range | 0-6 GHz |
| Tensile Strength | RG174 tensile strength: 17 KGS |
| Application | Why GLC8102 Fits |
|---|---|
| Long-Distance RF Extension | The 50 meter length supports installations that need extended routing between MCX-connected devices. |
| Distributed Equipment Layout | The long cable helps when antennas or modules are separated from the main enclosure. |
| RF System Verification | The test reference provides engineering data for long-cable evaluation. |
| Custom Harness Integration | The cable can be used where an extra-long MCX jumper is needed in a defined assembly form. |
The following images show the 50 meter cable assembly and a reference test screen for the available sample.

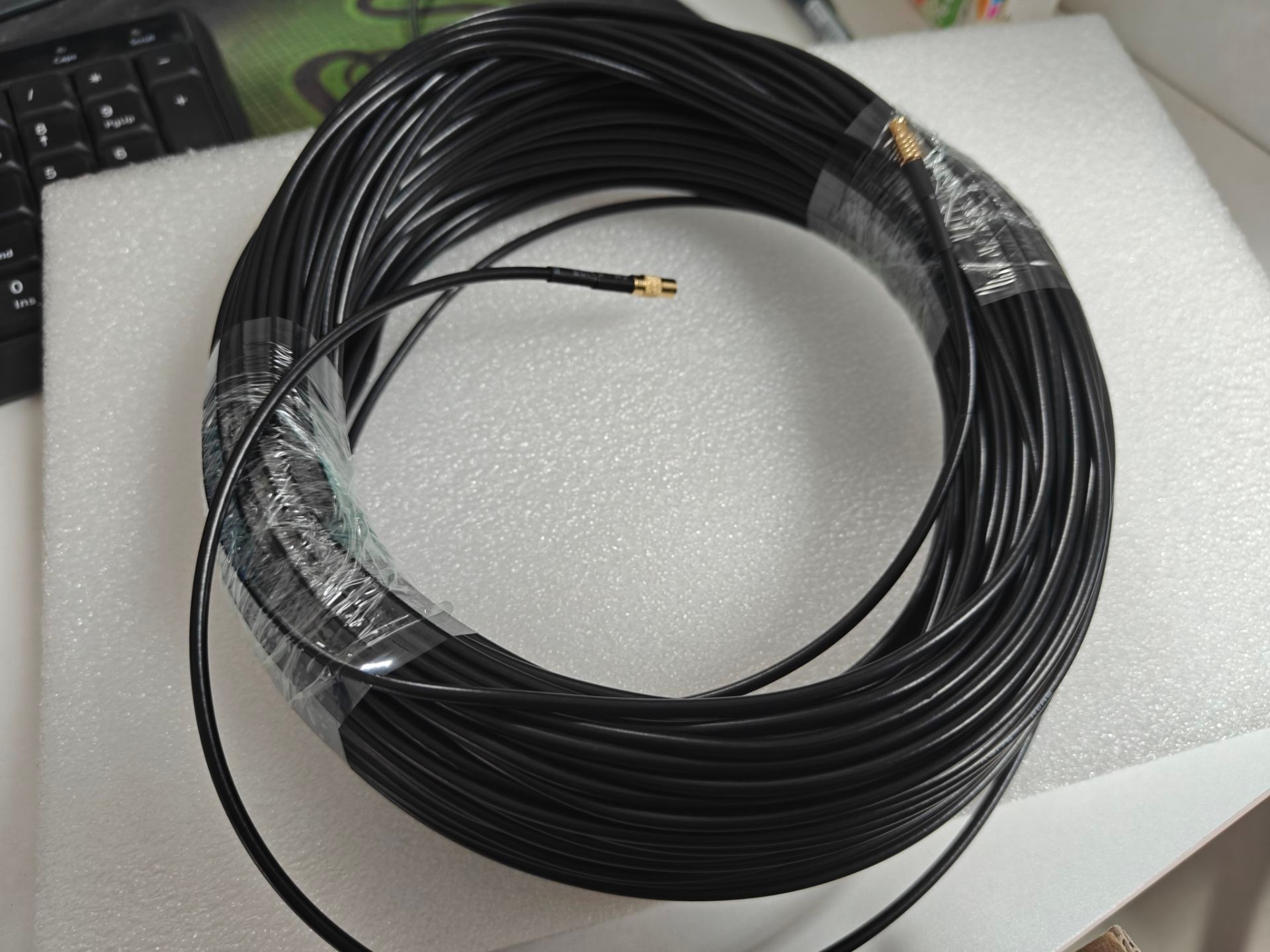

Product photo of the GLC8102 50 meter MCX female to MCX male RG174 cable assembly. |

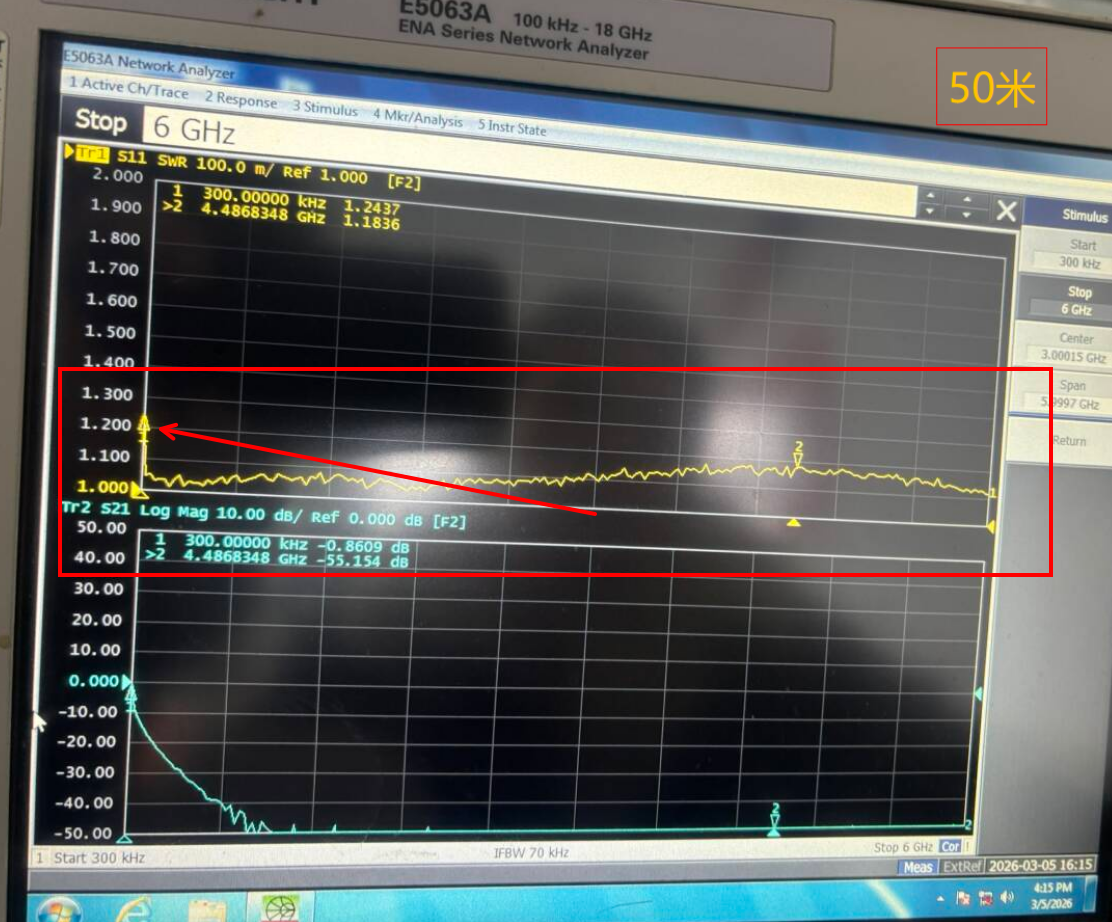

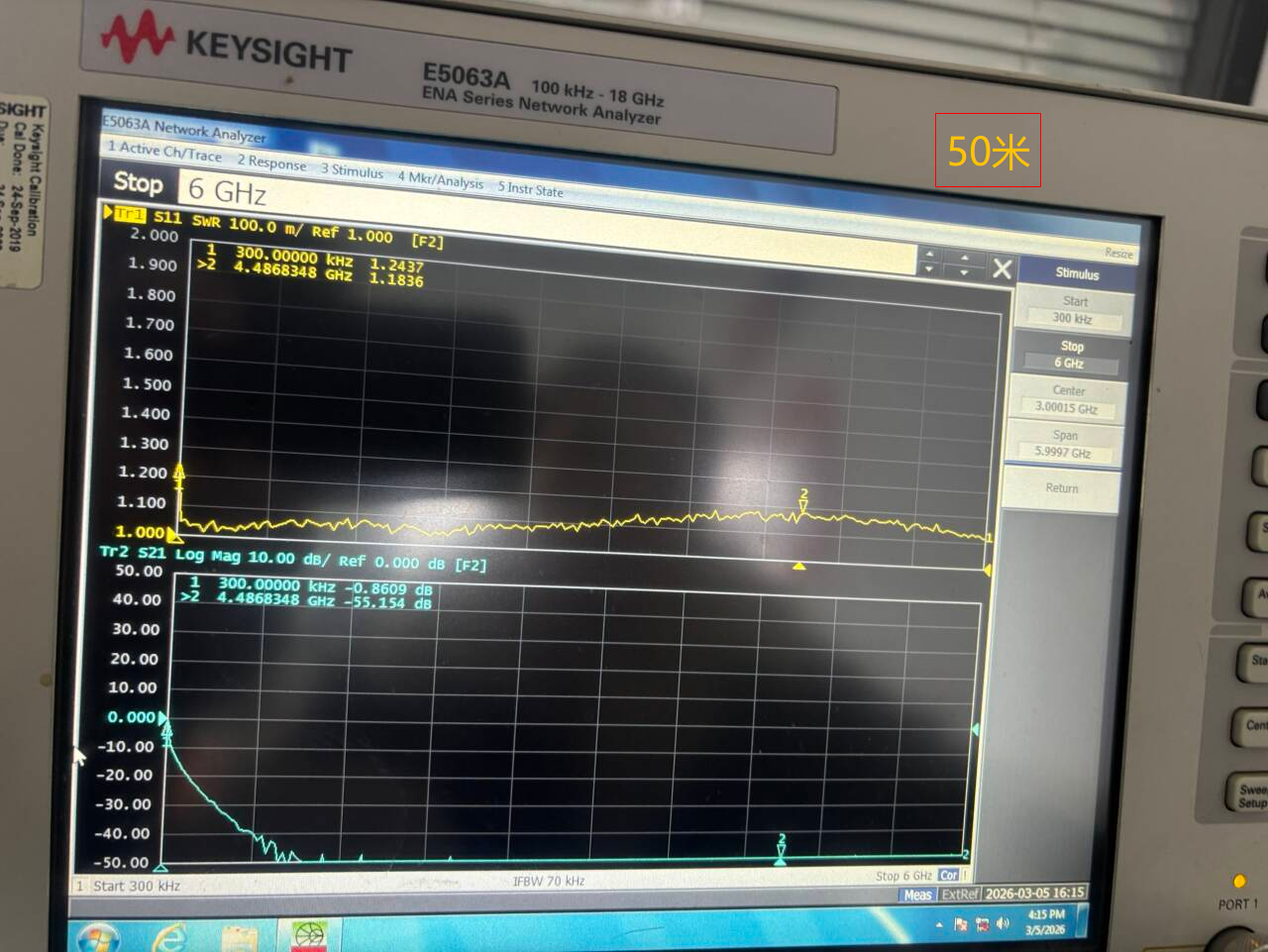

Reference network analyzer screen for the 50 meter GLC8102 sample. |
GLC8102 is supplied as an MCX female to MCX male RG174 cable assembly with a standard 50 meter length. Please confirm cable routing, connector gender, and any custom length requirements before ordering.
Request Quote Request Sample Download PDF
| Q1: What are the two connector ends of GLC8102? | One end is MCX female and the other end is MCX male. |
| Q2: What cable type and length does it use? | It uses RG174 cable with a standard 50 meter length. |
| Q3: Is there test data available? | Yes. VSWR and S21 reference data are available from 0 to 6 GHz. |
| Q4: What environmental range is specified? | The specified range is -40 to +85 degrees C and 5% to 95% humidity. |
| Q5: What material is identified for the cable? | The cable material is identified as pure copper. |
