GLC8101 MCX female to MCX male RG174 cable assembly, 1 meter length. Pure copper conductor, 0-6GHz tested, 17KGS tensile strength. Ideal for RF module interconnection, prototype work, and MCX interface extension. RoHS compliant, -40 to +85°C operating range.
Home > Product > Anterna related products > GLC8101
GLC8101 is an MCX female to MCX male RG174 assembly cable with a 1 meter cable length, designed for RF extension and jumper applications.
The assembly uses an MCX female connector on one end and an MCX male connector on the other end. The cable type is RG174 and the standard cable length is 1 m. The cable is RoHS compliant and the specified environmental range is -40 to +85 degrees C with 5% to 95% humidity.
Available test references include VSWR and S21 data between 0 and 6 GHz, and the RG174 tensile strength is listed as 17 KGS. This makes GLC8101 practical as a compact RF jumper or extension cable for devices that use MCX interfaces on both ends.
| MCX Female to MCX Male LayoutOne end uses MCX female and the other uses MCX male for direct RF extension. | RG174 Cable, 1 m LengthThe assembly uses RG174 coaxial cable with a standard 1 meter length. |
| RoHS CompliantThe cable assembly is RoHS compliant for environmentally conscious production requirements. | 0-6 GHz Test ReferenceAvailable VSWR and S21 data cover the 0 to 6 GHz range. |
| Pure Copper Cable MaterialThe product note identifies pure copper as the cable material. | Industrial Temperature RangeThe specified range is -40 to +85 degrees C with 5% to 95% humidity. |
| System | Parameter | Specification |
|---|---|---|
| Electrical / Assembly | Model | GLC8101 |
| Product Type | Assembly cable | |
| Connector End A | MCX female | |
| Connector End B | MCX male | |
| Cable Type | RG174 | |
| Cable Length | 1 m | |
| Compliance | RoHS compliant | |
| Material | Cable Material | Pure copper |
| Cable Construction | RG174 coaxial cable assembly | |
| Environmental | Operating Temperature | -40 to +85 degrees C |
| Humidity | 5% to 95% | |
| Test Data | VSWR / S21 Test Range | 0-6 GHz |
| Tensile Strength | RG174 tensile strength: 17 KGS |
| Application | Why GLC8101 Fits |
|---|---|
| MCX Interface Extension | The female-to-male structure is suitable for extending MCX-connected modules and test setups. |
| RF Module Interconnection | The 1 meter RG174 cable provides flexible internal or bench-top routing. |
| Prototype and Lab Work | The available 0-6 GHz test reference supports validation and engineering use. |
| General RF Jumper Use | The assembly fits devices that need a ready-made MCX jumper cable. |
The following images show the 1 meter cable assembly and a reference test screen for the available sample.

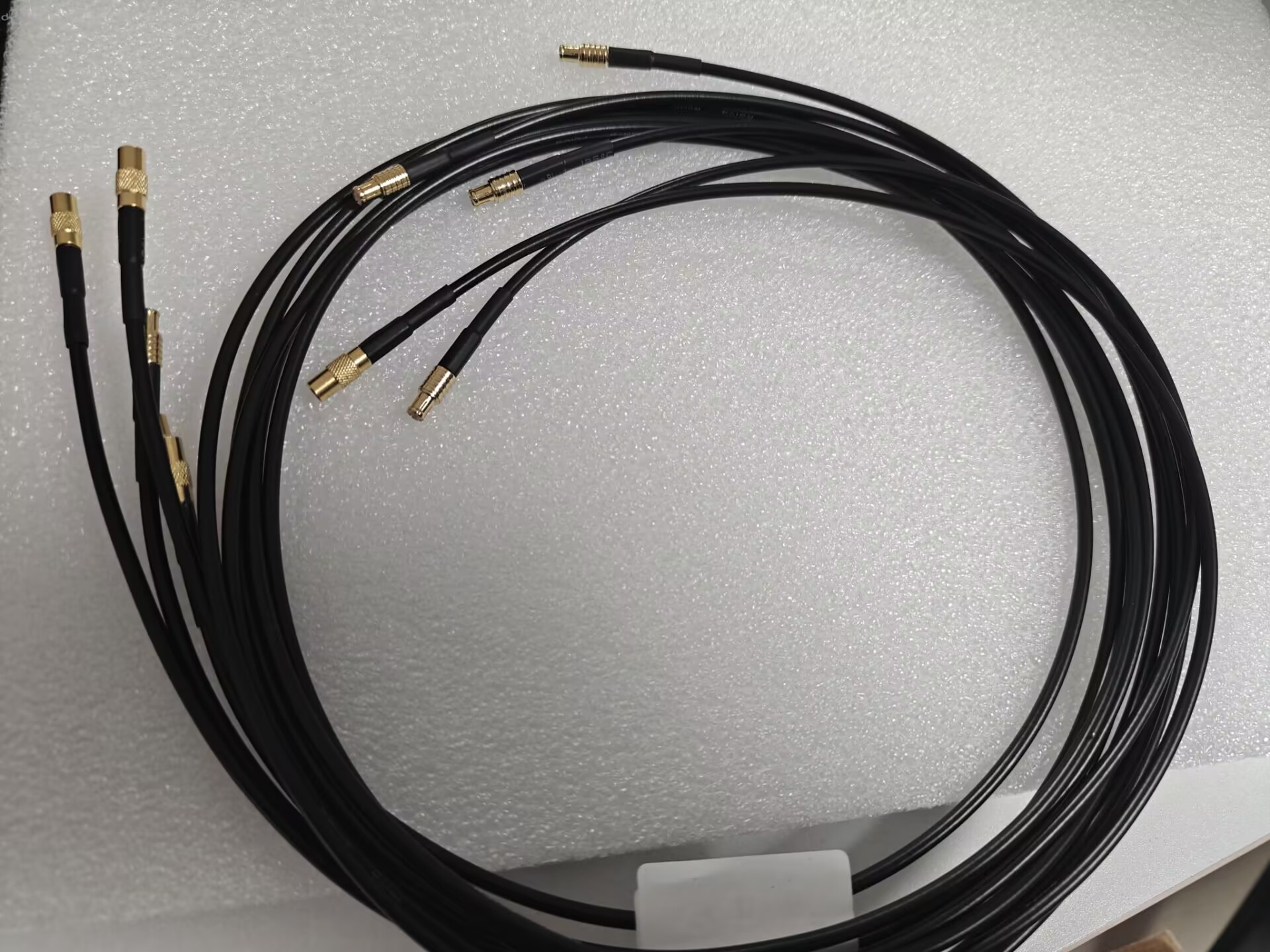

Product photo of the GLC8101 MCX female to MCX male RG174 cable assembly. |
Reference network analyzer screen for the 1 meter GLC8101 sample. |
GLC8101 is supplied as an MCX female to MCX male RG174 cable assembly with a standard 1 meter length. Please confirm cable length, connector gender, and any custom routing needs before ordering.
Request Quote Request Sample Download PDF
| Q1: What are the two connector ends of GLC8101? | One end is MCX female and the other end is MCX male. |
| Q2: What cable type and length does it use? | It uses RG174 cable with a standard 1 meter length. |
| Q3: Is there test data available? | Yes. VSWR and S21 reference data are available from 0 to 6 GHz. |
| Q4: What environmental range is specified? | The specified range is -40 to +85 degrees C and 5% to 95% humidity. |
| Q5: What tensile strength is listed? | The RG174 tensile strength is listed as 17 KGS. |
