GLC8103 is an MCX male to stripped wire RG174 cable assembly with a 15 cm cable length, designed for compact RF interconnection and pigtail termination applications.
This assembly uses an MCX male connector on one end and a prepared stripped wire termination on the other end. The cable type is RG174 and the standard cable length is 15 cm (0.15 m). The stripped end follows a 2:2:5 preparation ratio and the cable uses pure copper conductor material.
VSWR and S21 verification are available across 0 to 6 GHz, and the RG174 tensile strength is 17 KGS. This makes GLC8103 a practical short RF jumper or transition cable for devices that require one MCX male interface and one side prepared for direct wire connection.
| MCX Male to Stripped Wire Structure One end uses an MCX male connector and the other end is prepared as a stripped wire termination for direct connection or solder-ready integration. | RG174 Cable, 15 cm Length RG174 cable with a 15 cm assembly length is suitable for short internal routing and pigtail use. |
| Wire Stripping Ratio 2:2:5 A 2:2:5 stripping ratio defines the prepared open-end structure for direct connection work. | Pure Copper Cable Material Pure copper conductor material supports stable signal transmission and cable reliability. |
| RoHS Compliant The assembly is RoHS compliant for projects that require environmentally conscious material selection. | 0-6 GHz Test Data VSWR and S21 verification are available from 0 to 6 GHz, and RG174 tensile strength is listed as 17 KGS. |
| System | Parameter | Specification |
|---|---|---|
| Electrical / Assembly | Model | GLC8103 |
| Product Type | Assembly cable / RF pigtail | |
| Connector End A | MCX male | |
| Connector End B | Stripped wire termination | |
| Cable Type | RG174 | |
| Cable Length | 15 cm / 0.15 m | |
| Wire Stripping Ratio | 2:2:5 | |
| Compliance | RoHS compliant | |
| Material | Conductor Material | Pure copper |
| Cable Construction | RG174 coaxial cable assembly | |
| Environmental | Operating Temperature | -40 to +85 degrees C |
| Humidity | 5% to 95% | |
| Test Data | VSWR / S21 Test Range | 0-6 GHz |
| Tensile Strength | RG174 tensile strength: 17 KGS | |
| Open-End Preparation | Stripped wire end prepared with a 2:2:5 stripping structure |
| Application | Why GLC8103 Fits |
|---|---|
| RF Module Interconnection | The MCX male end allows quick mating to compact RF interfaces, while the stripped wire side supports direct internal wiring or solder connection. |
| Prototype and Lab Harnessing | The short 15 cm RG174 structure is practical for temporary signal routing, test fixtures, or engineering verification setups. |
| Embedded Device Integration | The stripped wire side is useful when the cable must be prepared for custom board-level or terminal-based assembly inside compact devices. |
| Custom RF Pigtail Preparation | The documented stripping ratio and pure copper material make the assembly suitable as a prepared lead for further custom integration. |
The following images show the cable assembly sample and a 15 cm test reference sample.

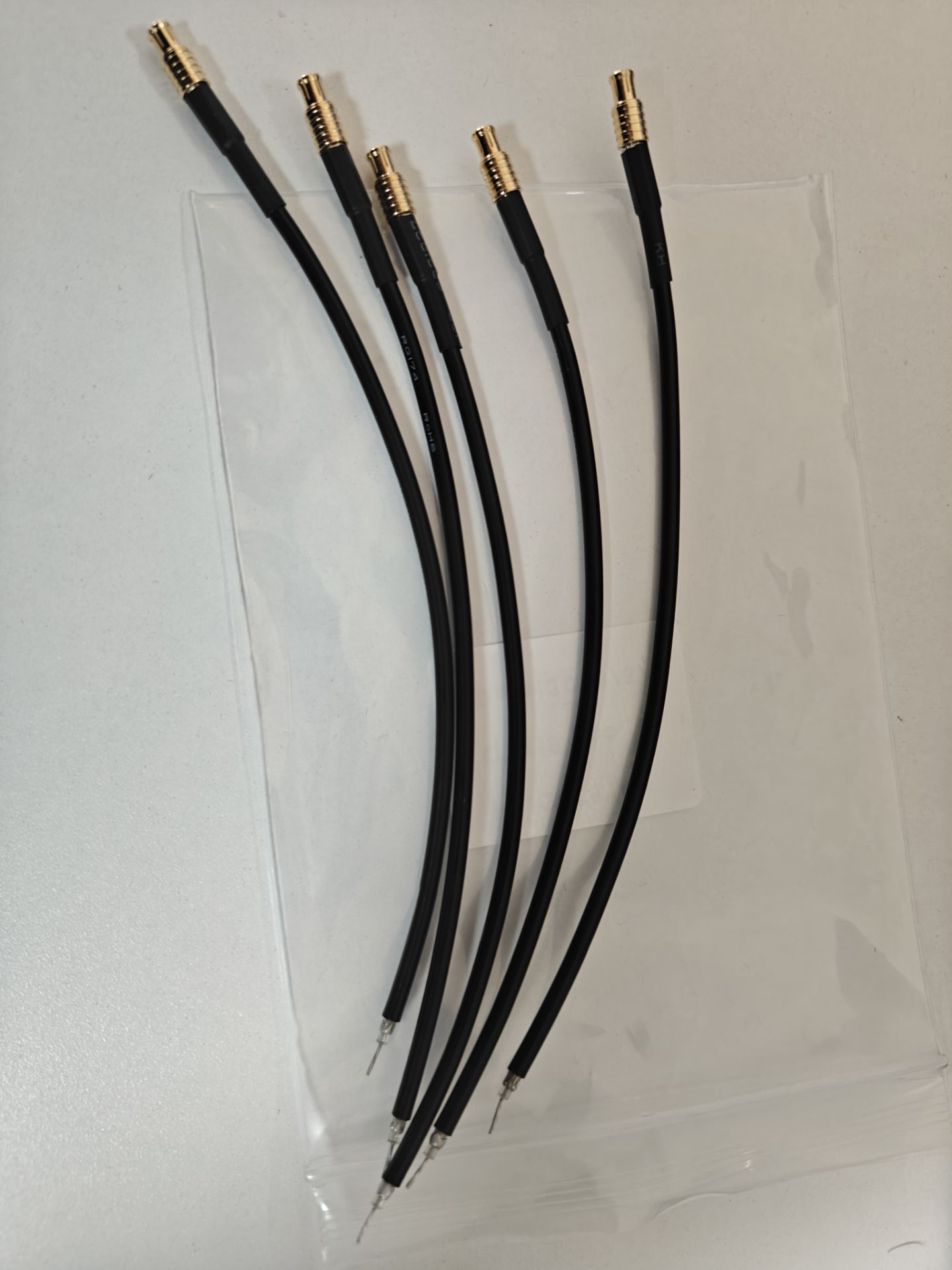

Product photo of the GLC8103 short RG174 cable assembly with MCX male connector and stripped wire end. |

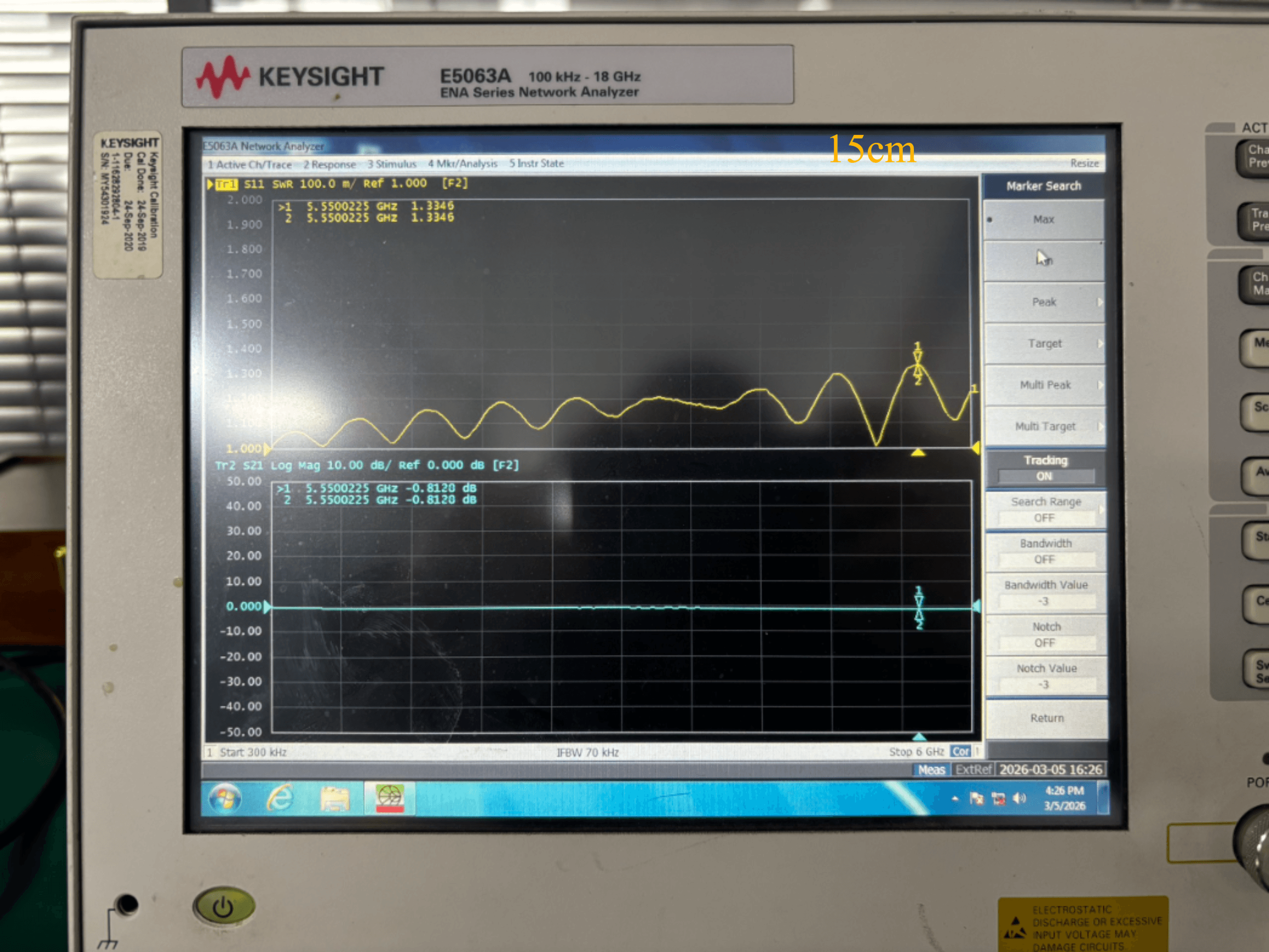

Network analyzer screen showing a 15 cm sample during test verification. |
GLC8103 is supplied as an MCX male to stripped wire RG174 cable assembly with a standard 15 cm length. If you need different cable lengths, stripping preparation, or connector end changes, please confirm with sales before order placement.
Request Quote Request Sample Download PDF
| Q1: What are the two ends of GLC8103? | One end is MCX male and the other end is a stripped wire termination. |
| Q2: What cable type and length does it use? | It uses RG174 cable with a 15 cm overall length. |
| Q3: What does the 2:2:5 stripping ratio refer to? | It defines the stripped wire preparation structure on the open-end side of the cable. |
| Q4: What environmental range is specified? | The operating temperature range is -40 to +85 degrees C and the humidity range is 5% to 95%. |
| Q5: Is there any performance test information available? | Yes. VSWR and S21 test data are available between 0 and 6 GHz, and RG174 tensile strength is 17 KGS. |
