GLC228 is an RF cable assembly that combines an SMA female bulkhead connector with 1.13 coaxial cable and a u.fl holder side for compact internal-to-panel transition work.
The available electrical specification covers 0 to 3000 MHz with 50 Ohm impedance, VSWR below 2.0, and insertion loss below 2.0 dB. This makes the assembly suitable for compact RF signal routing where a panel-mounted SMA interface is needed.
The physical structure uses 1.13 coaxial cable with an SMA female bulkhead side and a u.fl holder side. The operating temperature range is -20 to +65 degrees C and the storage temperature range is -30 to +75 degrees C.
| 0-3000 MHz Working RangeSupports RF cable routing from low frequency up to 3 GHz. | SMA Female Bulkhead InterfaceThe panel side uses an SMA female connector for threaded installation. |
| 1.13 Coaxial CableThe compact 1.13 cable structure is suitable for internal device routing. | u.fl Holder SideThe small-end structure is designed for compact board-level or internal RF connection. |
| Low VSWR and Insertion LossThe available specification lists VSWR below 2.0 and insertion loss below 2.0 dB. | Wide Temperature ReadinessThe assembly supports -20 to +65 degrees C operation and -30 to +75 degrees C storage. |
| System | Parameter | Specification |
|---|---|---|
| Electrical | Model | GLC228 |
| Product Type | RF cable assembly | |
| Frequency Range | 0-3000 MHz | |
| Impedance | 50 Ohm | |
| VSWR | < 2.0 | |
| Insertion Loss | < 2.0 dB | |
| Assembly | Connector Side A | SMA female bulkhead |
| Cable Type | 1.13 coaxial cable | |
| Connector Side B | u.fl holder | |
| Environmental | Storage Temperature | -30 to +75 degrees C |
| Operating Temperature | -20 to +65 degrees C |
| Application | Why GLC228 Fits |
|---|---|
| Panel-to-Board RF Transition | The SMA bulkhead side and compact cable help route RF signals from the enclosure wall to an internal board. |
| Compact Wireless Devices | The thin 1.13 cable is suited to products with limited internal routing space. |
| Prototype Cable Harnessing | The ready-made assembly simplifies development and validation work. |
| General RF Interconnect | The 3 GHz coverage supports many low- and mid-band RF product designs. |

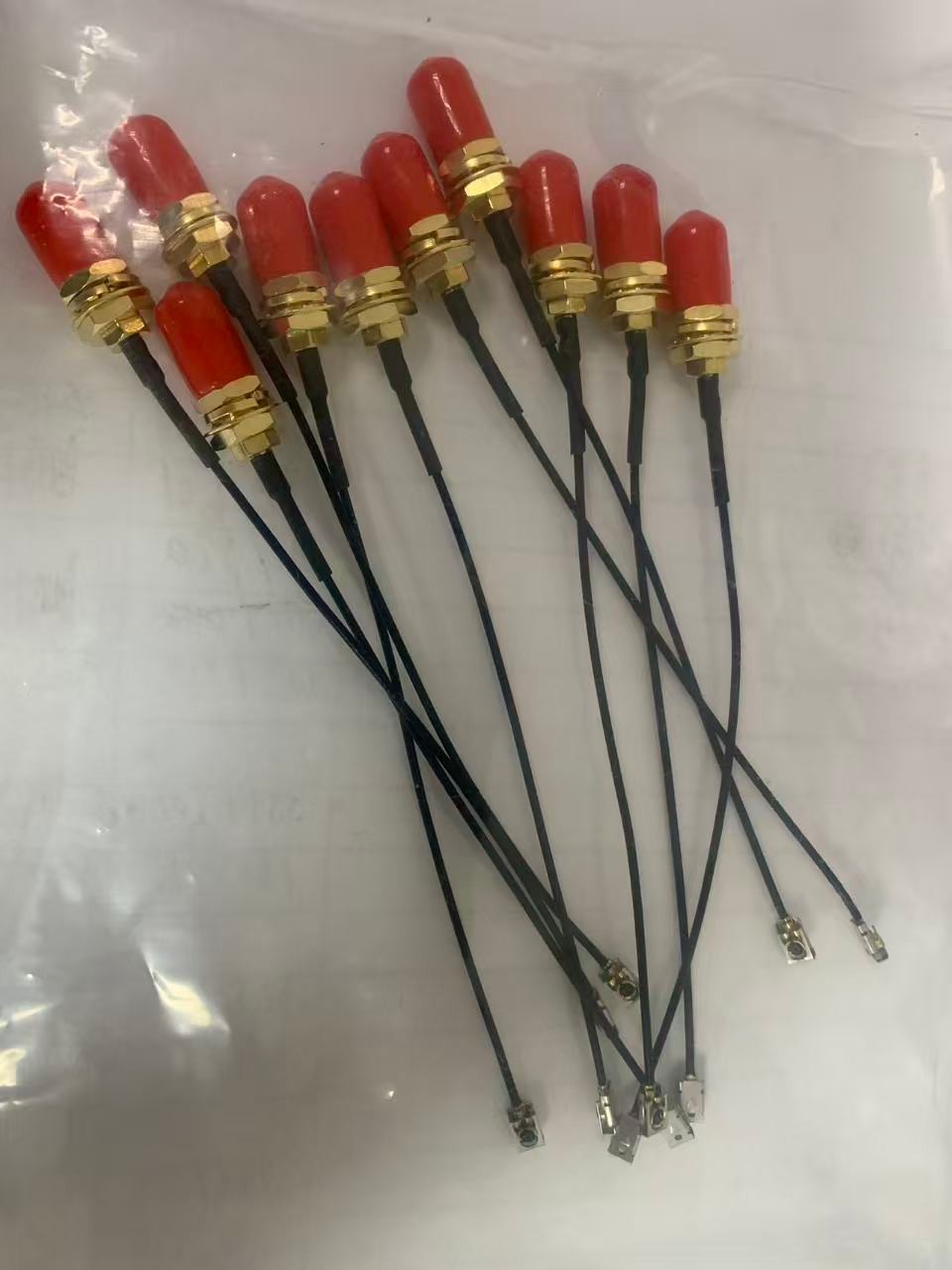

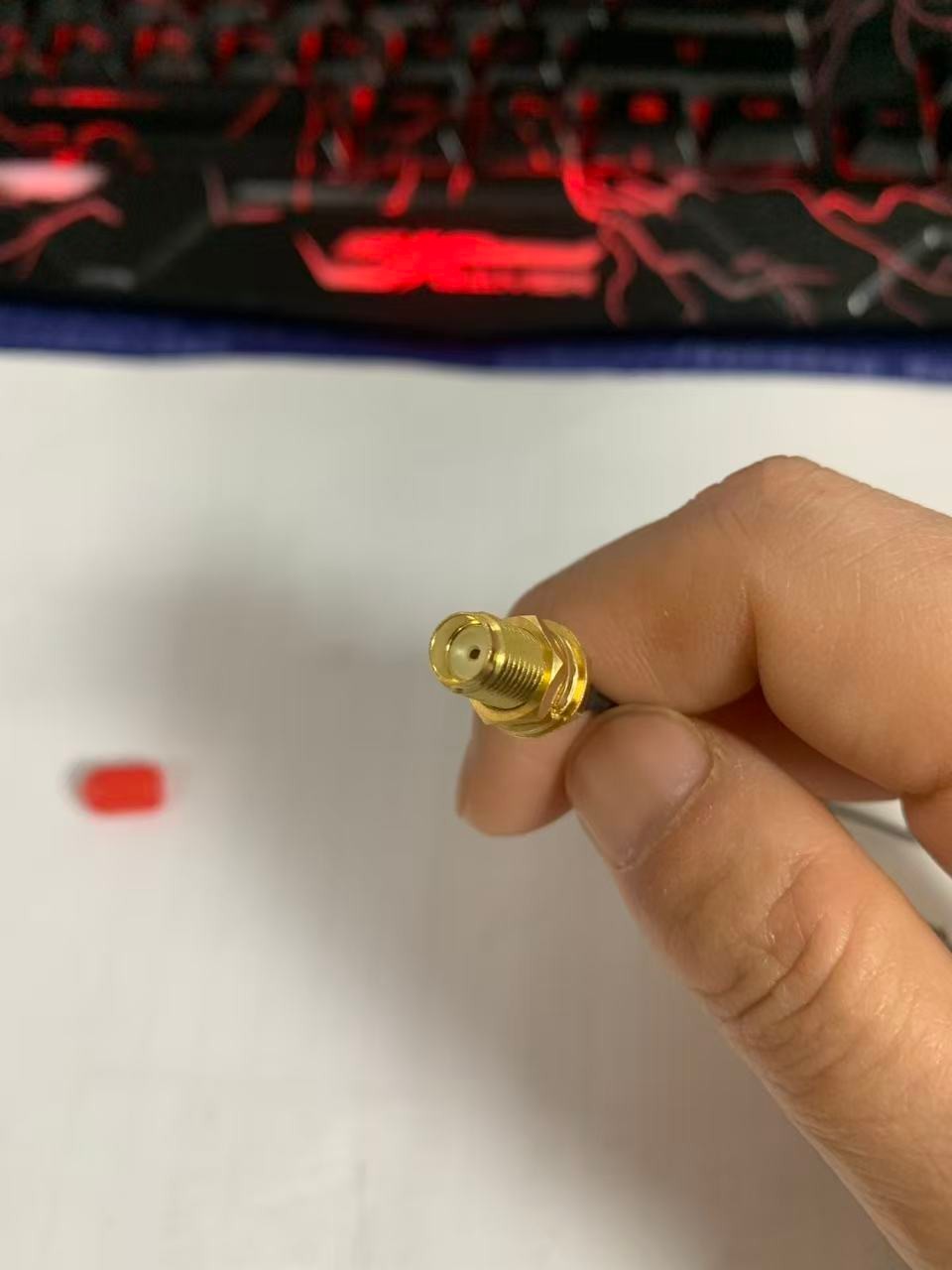

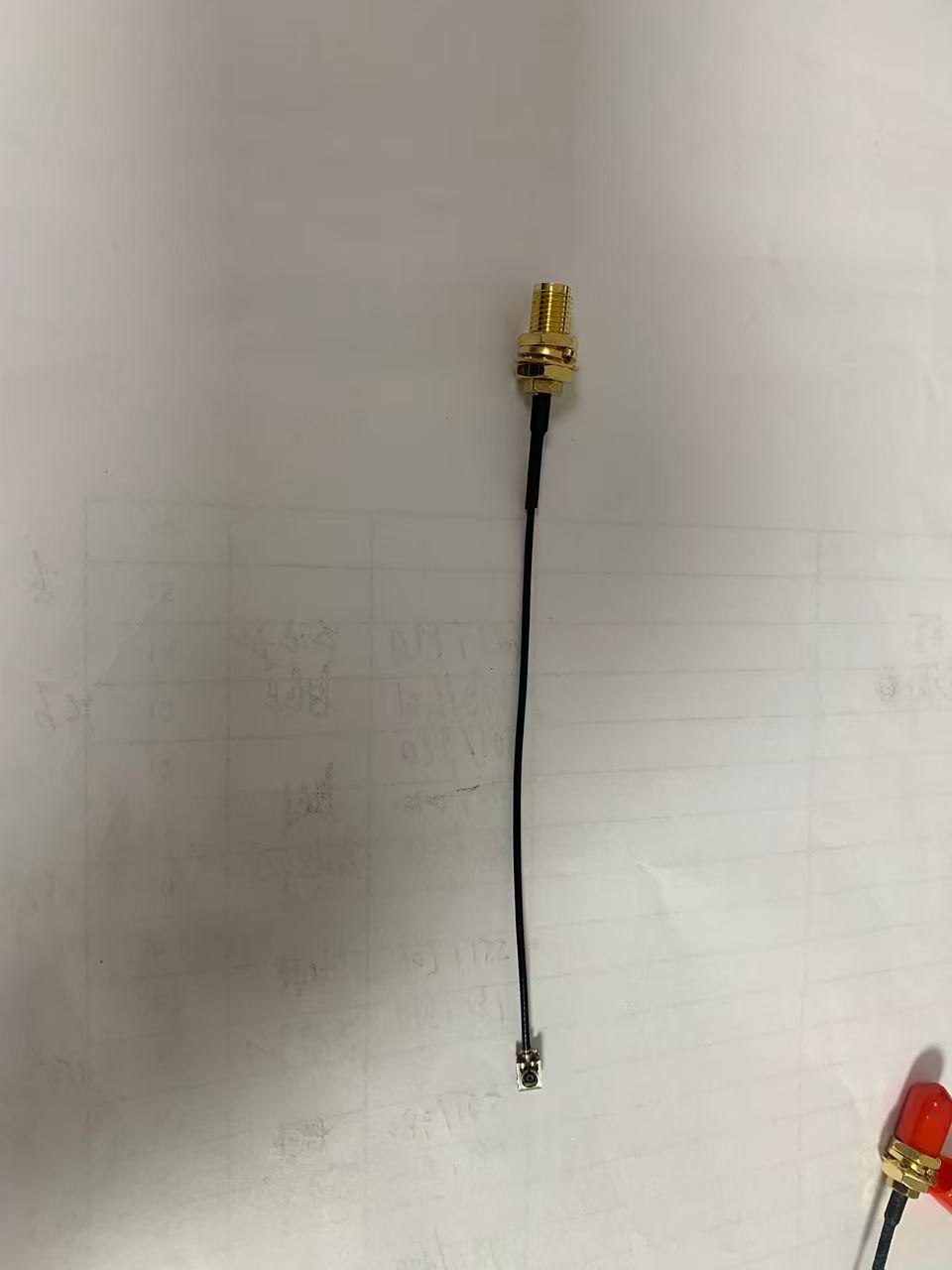

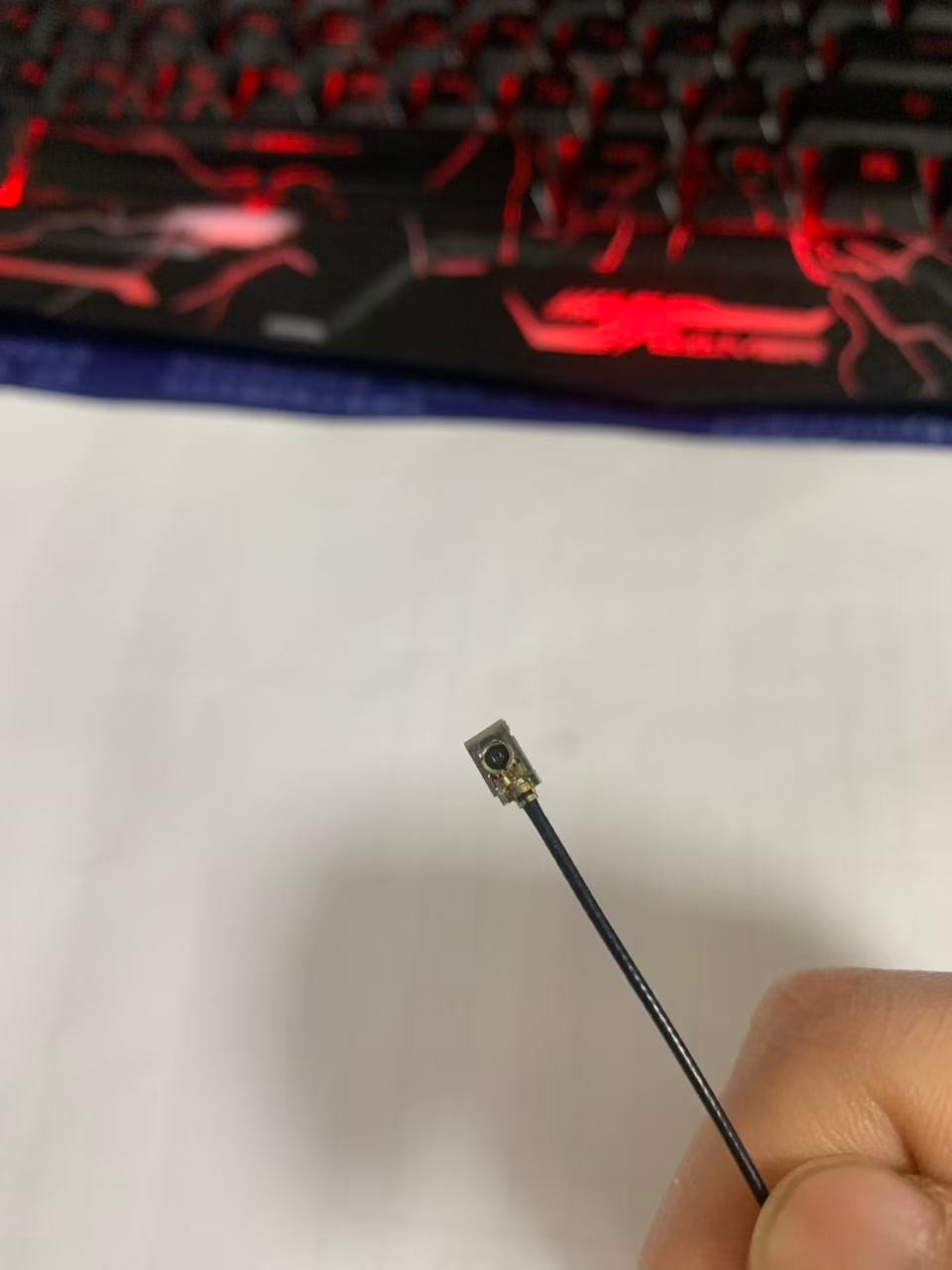

The following images show the GLC228 cable structure and a reference test print for the cable assembly.

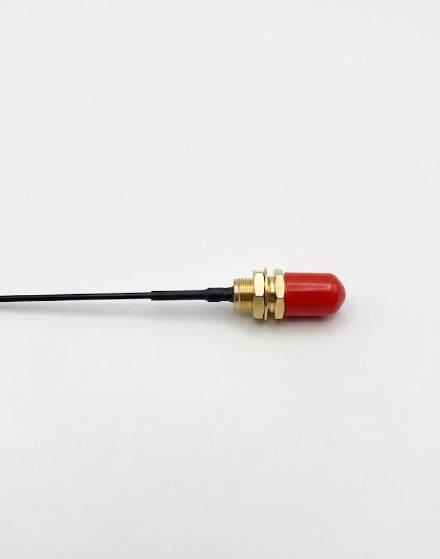

Product photo of the GLC228 SMA female bulkhead to compact cable assembly. |
Reference test print showing the available VSWR and transmission screen for the GLC228 sample. |
GLC228 is supplied as an SMA female bulkhead to 1.13 cable assembly with compact board-side termination. Please confirm cable length, thread requirements, and mating-side details before ordering.
