GL1200V14 is a high-gain flat panel antenna for 1200-1400 MHz directional links, combining a 14 dBi nominal gain with a compact square radome structure.
The antenna uses vertical polarization, a VSWR of 1.5 or better, 30 degree horizontal and vertical beamwidths, and a front-to-back ratio of 25 dB or higher. It also supports 50 W maximum input power and DC-ground lightning protection for outdoor deployment.
Its mechanical structure uses an N female connector, aluminum radiator, ABS radome, and pole-mount installation. The body size is 390 x 390 x 60 mm with a weight of 1.5 kg, making it suitable for outdoor point-to-point or point-to-multipoint systems in the 1.2-1.4 GHz range.
| 1200-1400 MHz Directional CoverageDesigned for the 1200-1400 MHz band with stable directional performance across the full working range. | 14 dBi Nominal GainA 14 dBi gain target supports focused link budget improvement for medium- and long-distance outdoor links. |
| 30 Degree BeamwidthBoth horizontal and vertical beamwidths are specified at 30 degrees for controlled directional coverage. | High Front-to-Back IsolationA front-to-back ratio of 25 dB or higher helps suppress unwanted rear radiation. |
| Outdoor Mechanical DesignThe antenna uses an aluminum radiator, ABS radome, N female connector, and pole-mount structure. | Measured Band Reference AvailableAvailable chamber data show measured gain from 12.68 to 13.79 dBi and efficiency from 86.81% to 99.28% across 1200-1400 MHz. |
| System | Parameter | Specification |
|---|---|---|
| Electrical | Model | GL1200V14 |
| Product Type | Flat panel antenna | |
| Frequency Range | 1200-1400 MHz | |
| Gain | 14 dBi | |
| VSWR | <= 1.5 | |
| Horizontal Beamwidth | 30 degrees | |
| Vertical Beamwidth | 30 degrees | |
| Front-to-Back Ratio | >= 25 dB | |
| Polarization | Vertical | |
| Input Impedance | 50 Ohm | |
| Max Power | 50 W | |
| Lightning Protection | DC ground | |
| Mechanical | Connector | N female |
| Installation | Pole mount | |
| Dimensions | 390 x 390 x 60 mm | |
| Weight | 1.5 kg | |
| Radiator Material | Aluminum | |
| Radome Material | ABS | |
| Radome Color | White | |
| Environmental | Operating Temperature | -40 to +65 degrees C |
| Test Reference | Measured Gain | 12.68 to 13.79 dBi across 1200-1400 MHz |
| Measured Efficiency | 86.81% to 99.28% across 1200-1400 MHz |
| Application | Why GL1200V14 Fits |
|---|---|
| Point-to-Point Wireless Links | The directional pattern and 14 dBi gain suit focused outdoor links that need improved forward coverage. |
| Point-to-Multipoint Systems | The 1200-1400 MHz range and panel structure fit sector-style deployments in fixed wireless systems. |
| Telemetry and Video Transmission | The antenna supports applications that need stable directional transmission in the lower microwave range. |
| Outdoor Test and Measurement | Its documented chamber data and controlled beam pattern make it useful for engineering verification work. |
The following images show the antenna appearance and a reference VSWR screen for the 1200-1700 MHz test range.

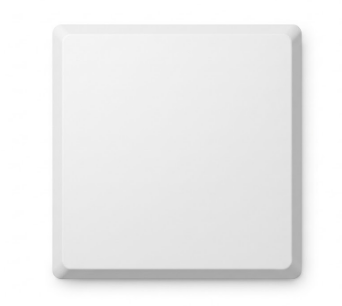

Product photo of the GL1200V14 flat panel antenna with square radome structure. |
Reference network analyzer screen for the GL1200V14 test sample. |
GL1200V14 is supplied as a 1200-1400 MHz panel antenna with N female connector and pole-mount structure. Please confirm bracket style, cable requirements, and any band customization needs before ordering.
Request Quote Request Sample Download PDF
| Q1: What frequency range does GL1200V14 cover? | It covers 1200 to 1400 MHz. |
| Q2: What gain does this panel antenna provide? | The nominal gain is 14 dBi. |
| Q3: What connector does the antenna use? | It uses an N female connector. |
| Q4: Is it suitable for outdoor installation? | Yes. It includes a pole-mount structure, DC-ground lightning protection, and outdoor-ready materials. |
| Q5: What size is the antenna body? | The antenna dimensions are 390 x 390 x 60 mm. |
