GL1200V8 is an omni fiberglass antenna for 1200-1700 MHz systems, combining 8 dBi gain with a slim outdoor radome for point-to-multipoint coverage.
This antenna provides full 360 degree horizontal coverage, 35 degree vertical beamwidth, vertical polarization, and a VSWR of 1.5 or better across the working band. The electrical design also supports 50 W maximum input power and DC-ground lightning protection.
The mechanical structure uses an N male connector, fiberglass radome, gray finish, and a 32 x 1800 mm body size. With a weight of 0.65 kg, rated wind velocity of 60 m/s, and mounting support for 35 to 50 mm hardware, it is suited to outdoor 1200 MHz system deployment.
| 1200-1700 MHz CoverageSupports broadband use from 1200 to 1700 MHz for 1200 MHz system deployment. | 8 dBi Omni GainThe antenna combines omni coverage with an 8 dBi nominal gain target. |
| 360 Degree Horizontal PatternA full horizontal beam supports point-to-multipoint and wide-area outdoor coverage. | Fiberglass Outdoor RadomeThe radome is fiberglass with a slim gray outdoor structure for all-weather installation. |
| High Wind and Lightning ReadinessThe antenna is rated for 60 m/s wind velocity and uses DC-ground lightning protection. | Simple Pole InstallationThe mounting hardware supports 35 to 50 mm structures and uses an N male input connector. |
| System | Parameter | Specification |
|---|---|---|
| Electrical | Model | GL1200V8 |
| Product Type | 1200 MHz omni fiberglass antenna | |
| Frequency Range | 1200-1700 MHz | |
| Gain | 8 dBi | |
| VSWR | <= 1.5 | |
| Horizontal Beamwidth | 360 degrees | |
| Vertical Beamwidth | 35 degrees | |
| Polarization | Vertical | |
| Input Impedance | 50 Ohm | |
| Maximum Input Power | 50 W | |
| Lightning Protection | DC ground | |
| Mechanical | Connector | N male |
| Dimensions | 32 x 1800 mm | |
| Weight | 0.65 kg | |
| Radome Material | Fiberglass | |
| Radome Color | Gray | |
| Mounting Hardware | 35 to 50 mm | |
| Environmental | Operating Temperature | -40 to +60 degrees C |
| Rated Wind Velocity | 60 m/s |
| Application | Why GL1200V8 Fits |
|---|---|
| 1200 MHz Point-to-Multipoint Systems | The omni pattern fits stations that need all-around coverage in the 1200 MHz range. |
| Outdoor Base Installations | The fiberglass radome and wind rating support exposed outdoor deployment. |
| Wireless Backhaul Support | Its 8 dBi gain helps strengthen link performance where omni coverage is required. |
| Industrial RF Networks | The robust mechanical structure suits industrial and fixed wireless environments. |
The following images show the datasheet preview and product reference for the GL1200V8 outdoor fiberglass antenna.

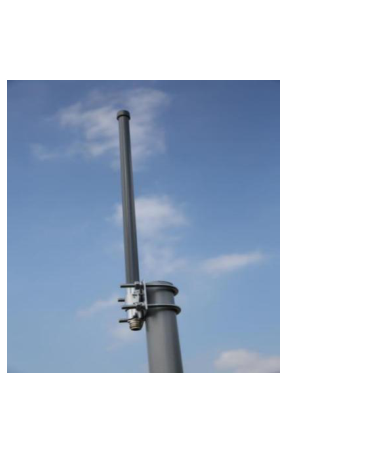

Product reference image of the GL1200V8 fiberglass omni antenna mounted on a pole. |
Datasheet preview showing key electrical and mechanical specifications for GL1200V8. |
GL1200V8 is supplied as a 1200-1700 MHz fiberglass omni antenna with N male connector. Please confirm mount size, cable routing requirements, and any band customization details before ordering.
Request Quote Request Sample Download PDF
| Q1: What frequency range does GL1200V8 support? | It supports 1200 to 1700 MHz. |
| Q2: Is GL1200V8 directional or omni? | It is an omni antenna with 360 degree horizontal coverage. |
| Q3: What connector does it use? | It uses an N male connector. |
| Q4: What is the antenna size? | The body size is 32 x 1800 mm. |
| Q5: Can it be used outdoors? | Yes. The antenna uses a fiberglass radome, DC-ground protection, and a 60 m/s wind rating. |
