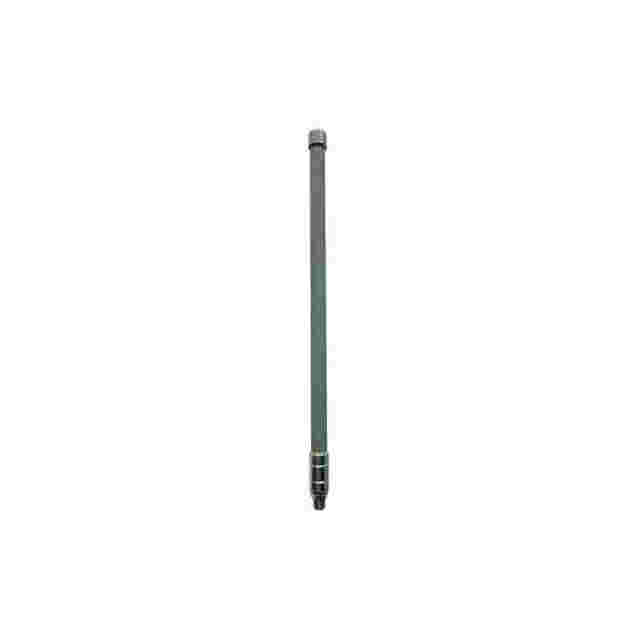

GL490G2

Frequency-MHz 470-510
Bandwidth-MHz 40
Gain-dBi 2.5
Vertical Beamwidth-o 75
VSWR ≤1.8
Nominal Impedance-Ω 50
Polarization Vertical
Maximum Power-W 55
Length-m 0.5
Weight-kg 0.3
Rated Wind Velocity-m/s 60
Connector N Female
Remarks Fiberglass

EMAIL

Frequency-MHz 470-510 Bandwidth-MHz 40 Gain-dBi 2.5 Vertical Beamwidth-o 75 VSWR ≤1.8 Nominal Impedance-Ω 50 Polarization Vertical Maximum Power-W 55 Length-m 0.5 Weight-kg 0.3 Rated Wind Velocity-m/s 60 Connector N Female Remarks Fiberglass
