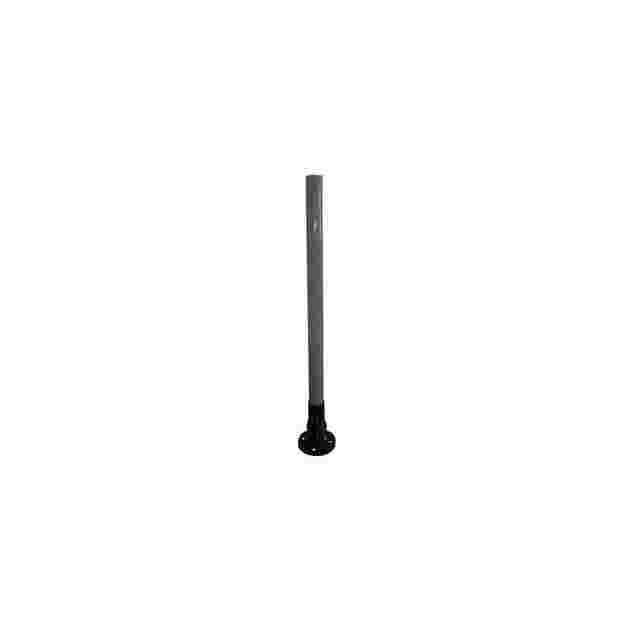

GL400TF2

Frequency-MHz 380-450
Bandwidth-MHz 70
Gain-dBi 2.5
Vertical Beamwidth-o 55
VSWR ≤1.5
Nominal Impedance-Ω 50
Polarization Vertical
Maximum Power-W 50
Length-m 1.0
Weight-kg 1.7
Rated Wind Velocity-m/s 60
Connector N Female
Remarks Fiberglass Flange mount

EMAIL

Frequency-MHz 380-450 Bandwidth-MHz 70 Gain-dBi 2.5 Vertical Beamwidth-o 55 VSWR ≤1.5 Nominal Impedance-Ω 50 Polarization Vertical Maximum Power-W 50 Length-m 1.0 Weight-kg 1.7 Rated Wind Velocity-m/s 60 Connector N Female Remarks Fiberglass Flange mount
