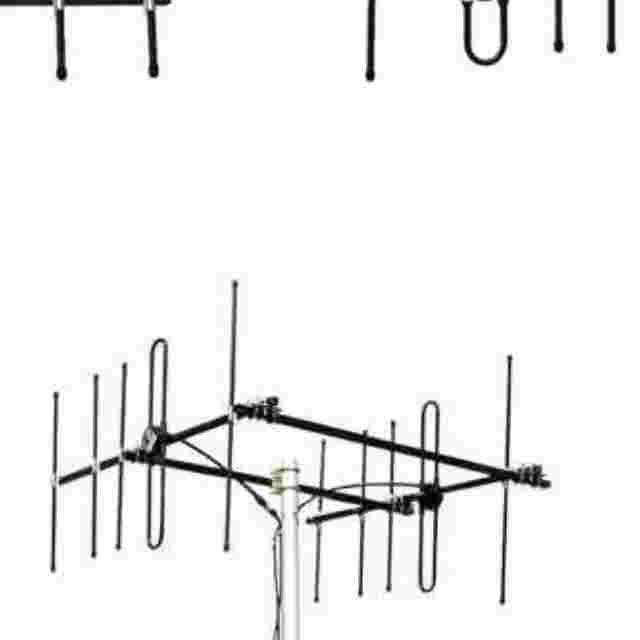

GL400A

Frequency-MHz 400-480
Bandwidth-MHz 28
Gain-dBi 11.2
Vertical Beamwidth-o 40
Horizontal Beamwidth-o 44
F/B Ratio-dB ≥16
VSWR ≤1.5
Nominal Impedance-Ω 50
Polarization Vertical or Horizontal
Maximum Power-W 100
Length-m 1.2
Weight-kg 0.8
Rated Wind Velocity-m/s 60
Connector N Female or Customization

EMAIL

Frequency-MHz 400-480 Bandwidth-MHz 28 Gain-dBi 11.2 Vertical Beamwidth-o 40 Horizontal Beamwidth-o 44 F/B Ratio-dB ≥16 VSWR ≤1.5 Nominal Impedance-Ω 50 Polarization Vertical or Horizontal Maximum Power-W 100 Length-m 1.2 Weight-kg 0.8 Rated Wind Velocity-m/s 60 Connector N Female or Customization
