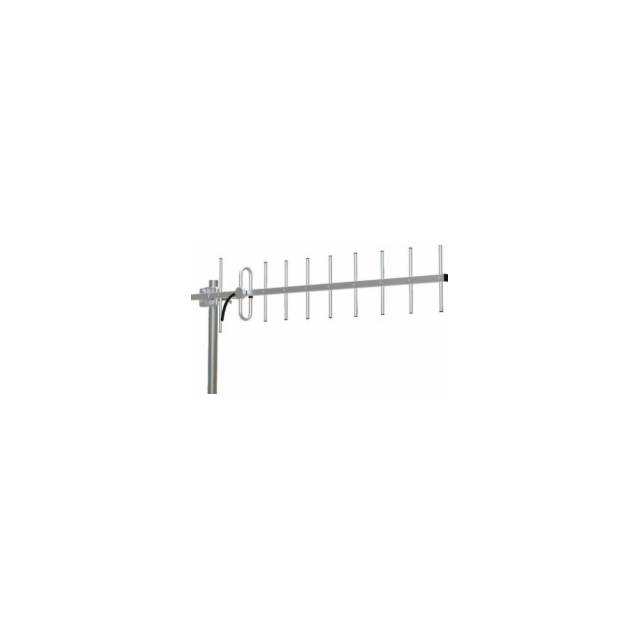

GL-BV1407

Frequency Range 700-890MHz
Element 10
VSWR ≤2
Impedance 50 Ω
Gain 14 ±1dBi
Polarization Vertical or Horizontal
Beam Width H(half-power) 35±5 °
Beam Width V(half-power) 30±5 °
Front to Back Ratio ≥15
Max.Power 100w
Connector N-Female
Dimension 1000x252x350mm
Weight 1Kg
Rated Wind Speed 100km/h
Radome Material Aluminium

EMAIL

Frequency Range 700-890MHz Element 10 VSWR ≤2 Impedance 50 Ω Gain 14 ±1dBi Polarization Vertical or Horizontal Beam Width H(half-power) 35±5 ° Beam Width V(half-power) 30±5 ° Front to Back Ratio ≥15 Max.Power 100w Connector N-Female Dimension 1000x252x350mm Weight 1Kg Rated Wind Speed 100km/h Radome Material Aluminium
