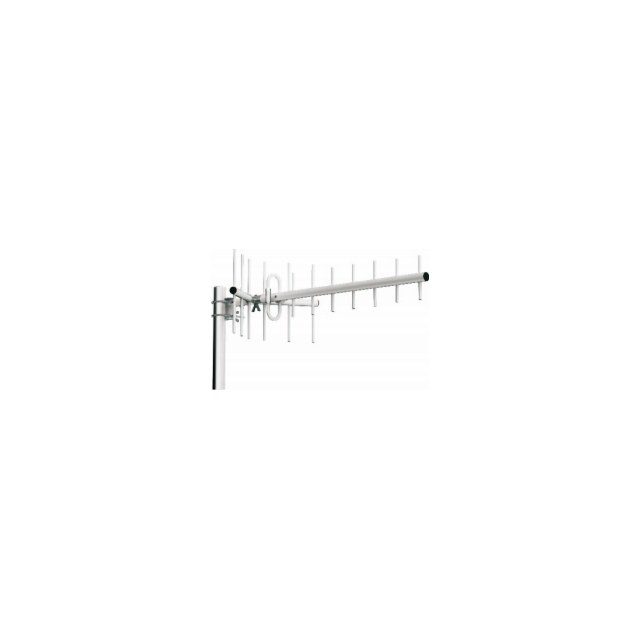

GL-BV1404-1

Frequency Range 806-960MHz No.of Elements 9 VSWR ≤1.7 Impedance 50 Ω Gain 15±1dBi Polarization Vertical or Horizontal Beam Width H(half-power) 38±5 ° Beam Width V(half-power) 30±2 ° Electrical Downtilt 0 Front to Back Ratio ≥20 Max.Power 100w Connector N-Female Dimension 845x250x382mm Weight 1.2Kg Rated Wind Speed 150km/h Radome Material Aluminium Diameter of installation pole Φ30-Φ53mm
