Frequency Range: 698–960 MHz, 1710–2700 MHz, 3400–3800 MHz, 4900–6000 MHz
Polarization: Horizontal
Dimensions: Ø220 × 18 mm
Home > Product > Omni Ceiling Antennas > GL-DY7060H3

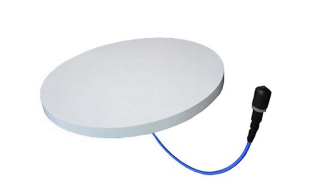

GL-DY7060H3 - A lightweight wideband omnidirectional ceiling-mount antenna for indoor DAS applications.
This antenna offers 360° coverage across multiple cellular bands (698-960 MHz, 1710-2700 MHz, 3400-3800 MHz, 4900-6000 MHz). Designed with anti-UV ABS radome and PCB radiating element, it is ideal for indoor distributed antenna systems in various environments.
Key Features | |
Multi-Band Coverage Supports 698–960 MHz, 1710–2700 MHz, 3400–3800 MHz, and 4900–6000 MHz bands. | Lightweight & Compact Weight only 0.3 kg, dimensions Ø220 × 18 mm, easy to install and integrate. |
Durable Radome Anti-UV ABS radome, white color, suitable for indoor environments. | Stable Performance VSWR ≤ 1.8 across all frequency bands for reliable signal transmission. |
Low Intermodulation IM3 ≤ −150 dBc @ 2×33 dBm to minimize interference in multi-carrier systems. | Wide Temperature Range Operating temperature: −40°C to +65°C. |
| Parameter | 698-960 MHz | 1710-2700 MHz | 3400-3800 MHz | 4900-6000 MHz | General |
|---|---|---|---|---|---|
| Gain (dBi) | 2.5 | - | 4 | 5 | - |
| VSWR (Max.) | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | - |
| Horizontal Beamwidth | 360° | 360° | 360° | 360° | - |
| Vertical Beamwidth | 65° | 55° | 50° | 45° | - |
| Polarization | Horizontal | ||||
| Input Impedance | 50 Ω | ||||
| Max. Input Power | 50 W | ||||
| IM3 (2x33dBm) | ≤ -150 dBc | ||||
| Connector Type | N-K | ||||

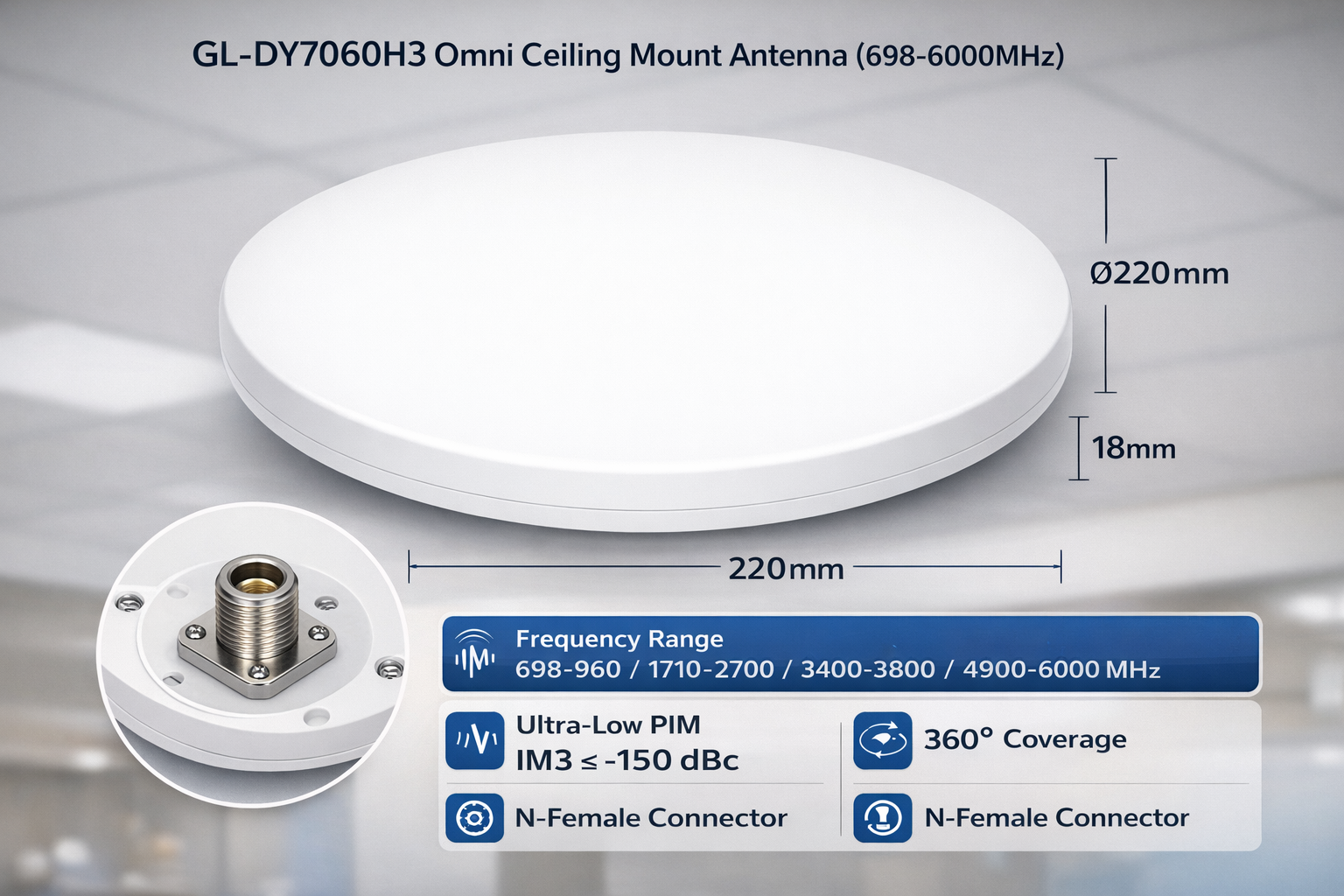

| Dimensions | Ø220 × 18 mm | ||||
| Weight | 0.3 kg | ||||
| Radiating Element Material | PCB | ||||
| Radome Material | ABS / White | ||||
| Operating Temperature | -40°C to +65°C | ||||
| Lightning Protection | DC Ground | ||||
Indoor distributed antenna systems (DAS)
Office buildings and corporate campuses
Shopping malls and retail stores
Hotels and conference centers
Educational institutions
Healthcare facilities
Request Quote Request Sample Download PDF
With a thickness of only 18 mm, the GL-DY7060H3 is one of the lowest-profile ceiling antennas available. It is ideal for high-end commercial spaces where maintaining interior aesthetics is critical while providing 360° horizontal coverage.
Yes. It features an ultra-wide bandwidth from 698 MHz to 6000 MHz. This covers:
Sub-6GHz 5G NR (3.4-3.8 GHz and higher)
LTE/CBRS
Wi-Fi 6 (up to 6 GHz)
Low Passive Intermodulation (PIM) is crucial for modern high-speed data networks. The ≤ -150 dBc rating ensures minimal self-interference, maximizing the data throughput and reliability of the indoor network.
Absolutely. The antenna uses an anti-ultraviolet ABS radome. This prevents yellowing and material degradation over time, ensuring the antenna maintains its appearance and structural integrity even in areas with significant light exposure.
