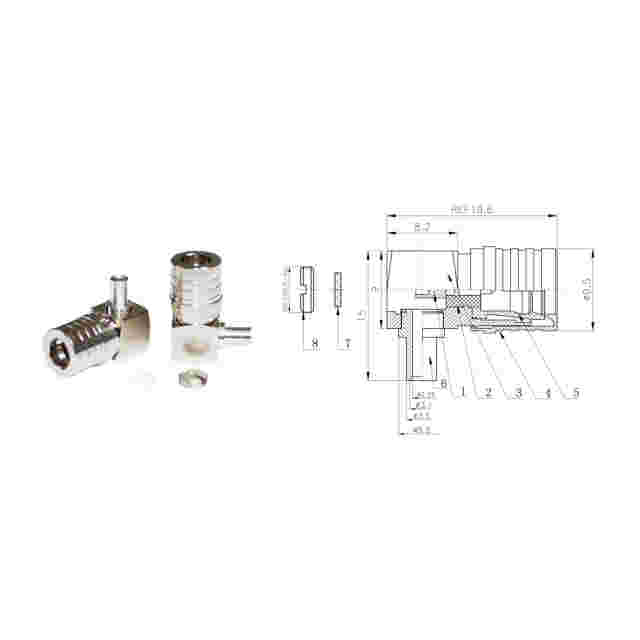

GL-QMAW4

The GL-QMAW4 QMA Connector supports 10GHz frequency and 50Ω impedance with VSWR 1.15 and ≤-160dBc PIM. Crafted with Ag-plated brass contacts it offers ≥500 mating cycles -55℃~+155℃ tolerance and 2500V max voltage for reliable precision transmission.

EMAIL

Frequency Range(GHz) 10 Impedance(ohm) 50 VSWR 1.15 Test voltage(max) 2500 V PIM(3rd order) ≤-160 dBc @ 2 x 20 W Mating Cycles ≥ 500 Coupling Torque Max 1.7 Nm Recommended Coupling Torque 0.7-1.1?Nm Temperature Range -55℃-+155℃ Outer?Contact Brass CuSnZn Plating Center Contact Brass Ag Plating Cable Group N/A Plating CuSnZn Length(mm) Ф15*19.6*9.5
