GLDKZB4

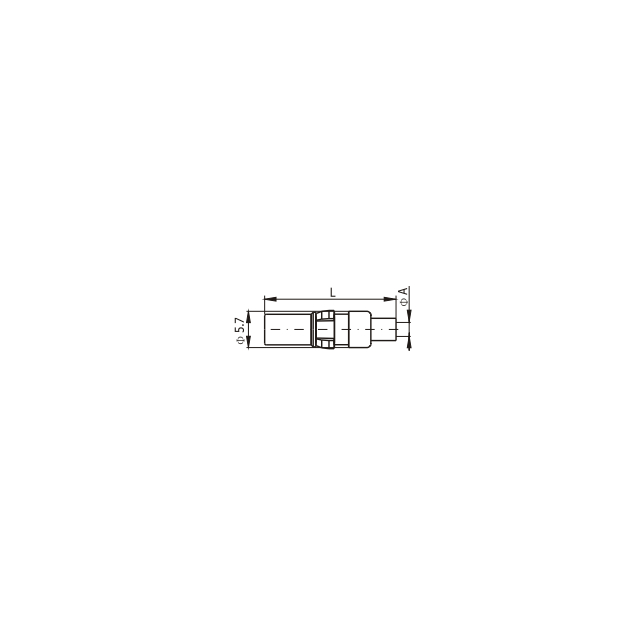

Frequency Range(GHz) 0-2 Characteristic impedance(ohm) 50 VSWR ≤1.30 Insulation resistance ≥1000MΩ Dielectric Withstanding voltage 750V(rms) Voltage rating 250V(rms) Contact resistance Center conductor ≤10mΩ Outer conductor ≤5mΩ Connector DKZ Apply Cable 047/086 Length(mm) Ф9*22.2*2.2(ФA=2.2) Durability 500 Cycles MATERIAL AND PLATING Body Brass,gold plated Male center contacts Brass,gold plated Female center contacts Beryllium copper,gold plated Insulators PTFE Crimp ferrules copper alloy,nickel or gold plated Spring contacts Beryllium copper,gold plated Temperature range -55~+125℃
