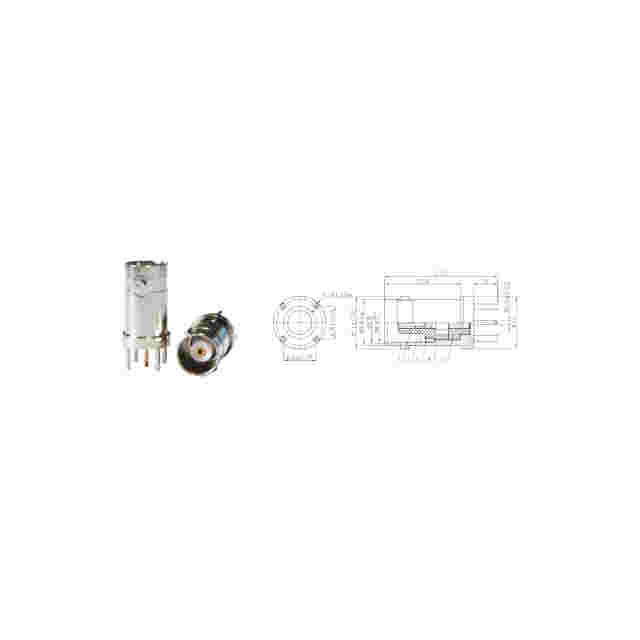

GL-BNCKE

The GL-BNCKE BNC Connector is optimized for 10GHz frequency and 50Ω impedance, featuring VSWR 1.10 and ≤-160dBc PIM. It adopts Ag-plated brass contacts, offers ≥500 mating cycles, -55℃~+155℃ temperature adaptability and 2500V rating, ensuring ultra-clear steady signal transmission in industrial settings.

EMAIL

Frequency Range(GHz) 10 Impedance(ohm) 50 VSWR 1.10 Test voltage(max) 2500 V PIM(3rd order) ≤-160 dBc @ 2 x 20 W Mating Cycles ≥ 500 Coupling Torque Max 1.7 Nm Recommended Coupling Torque 0.7-1.1?Nm Temperature Range -55℃-+155℃ Outer?Contact Brass CuSnZn Plating Center Contact Brass Ag Plating Cable Group N/A Plt CuSnZn Length(mm) Ф11*23.5*11
