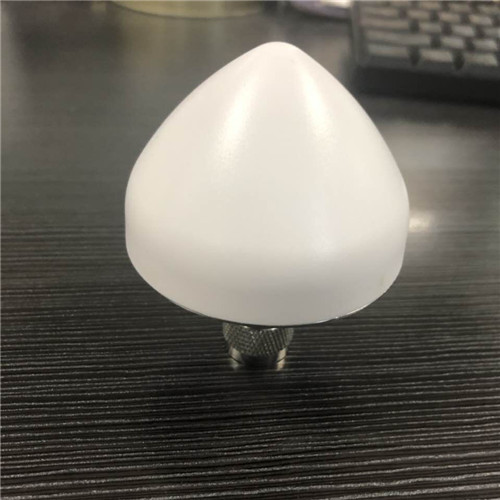

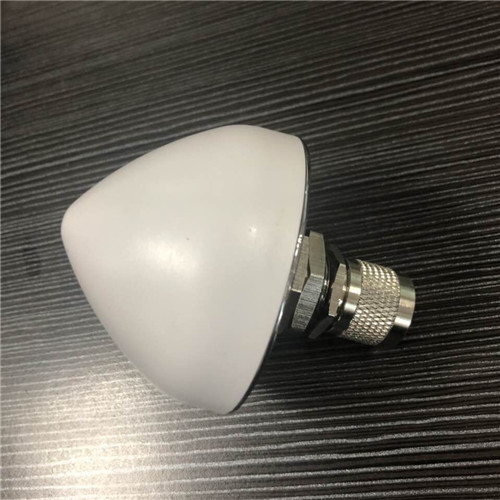

GL-DY225 GPSGlonass Antenna - 副本 - 副本

  • P/N: GL-DY225
  • Gain:40dBi
  • Connector: N or TNC
  • Freq: 1575.42/1602MHz
  • Product description: GL-DY225 GPSGlonass Antenna
  • INQUIRY


FOB Port: Shanghai or shenzhen

MOQ: 500PCS


Payment: TT,Paypal,Westen Union



Download Info: here

Item

Specifications

Antenna

Center Frequency

1575.42±3MHz/1602-1610

Band Width

CF±5MHz

Polarization

RHCP

Gain

5dBic@100mm Ground PlaneZenith

V.S.W.R

1.5

Impedance

50Ω

Axial Ratio

4dB@90°,6dB@20°

Dimension

25*25*6mm

LNA

Gain

40dB typ.

Noise Figure

2.5dB

Ex-band Attenuation

50dB@CF±50MHz

Supply Voltage

2.7~10V DC

Current Consumption

25mA

V.S.W.R

1.5

Mechanical

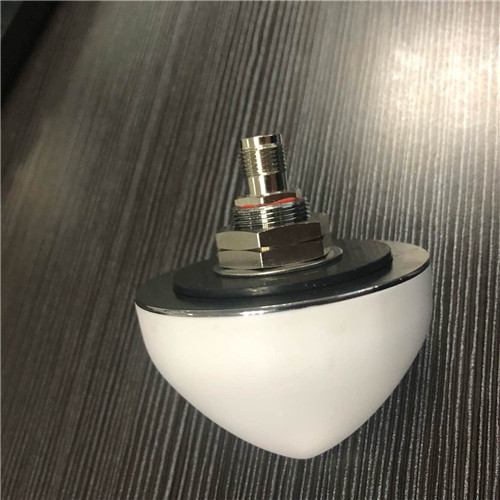

Connector

TNC

Radome Material

ABS

Mounting Method

Screw

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 95%

Ingress Protection

IP67

Vibration

3 axis,10 to 200Hz,sweep 15min,3G

Shock

Vertical axis:50G,other axes:30G

Environmentally Friendly

ROHS Compliant

ESD Protection

15KV air discharge


FAQ

Q: Can I get one sample?

A: Yes, sample is available.


Q: Have GNSS antenna 100% assembles well in stock?

A: No, all GNSS antenna will be newly assembled according to your orders including the samples.


Q: What's the delivery time?

A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.


Q: Could i use my own LOGO or design on goods?

A: Yes, customized logo and design on mass production are available.


Q: What's the payment term?

A:T/T, Paypal, western union etc.


Q:May I visit your company?

A: Sure, welcome any time.


Q: How long of the warranty?

A: one year for antennas and half a year for assembly cables and Connectors
