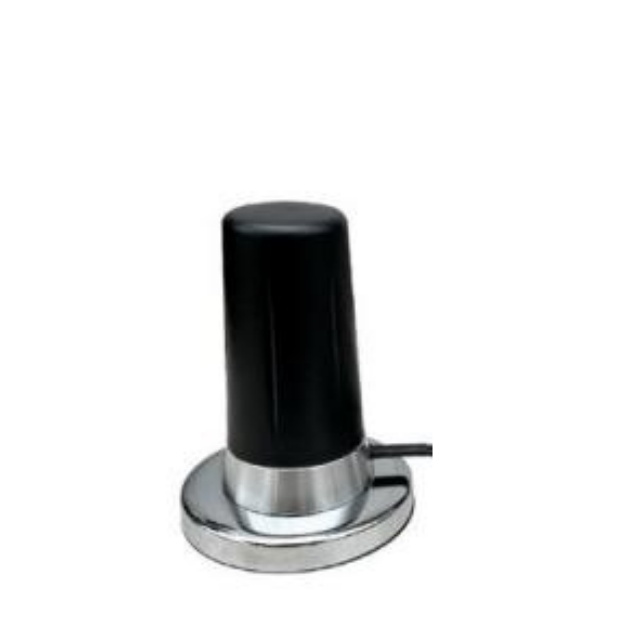

600-6000MHz 5G magnet antenna for outdoor using

Product Introduction

1. Ultra-Wide Frequency Coverage: Supports multiple frequency bands, including 600-960MHz, 1710-2700MHz, 3300-3800MHz, and 4000-6000MHz, fully adapting to 5G networks and previous-generation communication standards, meeting frequency band requirements in different regions around the world.

2. Low Standing Wave Ratio, Efficient Transmission: VSWR <1.5, minimizing signal reflection loss, and coupled with 3dBi stable gain, ensures efficient and stable signal transmission, reducing data latency.

3. Convenient Magnetic Installation: Utilizing a magnetic mounting system, it quickly attaches to surfaces such as vehicles and metal brackets. Tool-free installation allows for flexible positioning.

4. High Power and Durability: Supports a maximum input power of 50W, withstands 10-55Hz vibration testing, and operates stably in a wide temperature range of -40°C to +85°C and a humidity range of 5% to 95%, making it suitable for demanding environments.

5. Compliance and Compatibility: Compliant with ROHS environmental standards, it comes with a 2m RG174 cable and SMA male connector, making it easily compatible with a variety of devices, including 5G routers and in-vehicle terminals.

Application Scenarios

Smart Factory IoT: Supports private 5G networks in the 4000-6000MHz band

Mobile Emergency Communications: 50W high power compatible with in-vehicle base station equipment

Rural Broadband Coverage:600MHz low-band frequency enhances wall penetration

Drone Communication Relay:Compact design reduces flight load

FAQ

Q: Does it support millimeter wave ?

A: It only covers the Sub-6GHz (FR1 band) up to 6000MHz. It does not support mmWave above 24GHz.

Q: Is the gain consistent across the 4000-6000MHz band?

A: Gain is ≥3dBi across all bands. LNA is recommended for use in the high-band (5000-6000MHz) band.

Q: Can it directly replace a router antenna?

A: The SMA male connector is compatible with most CPE devices, but please ensure that the device's interface power is ≤50W.

Q: Does the size of the magnetic base affect the suction force?

A: The large Ø87mm magnet provides >25kg of suction force, 40% stronger than conventional Ø60mm products.

Q: Does the RG174 cable affect high-frequency performance?

A: A 2-meter length has a loss of approximately 3.2dB at 6000MHz. For longer distances, we recommend the LMR400 (customization required).

Q: What applications does the 600MHz low-band frequency band cover?

A: Supports Band 71 (T-Mobile 5G) and Band 28 (European 700MHz), enhancing rural coverage.
