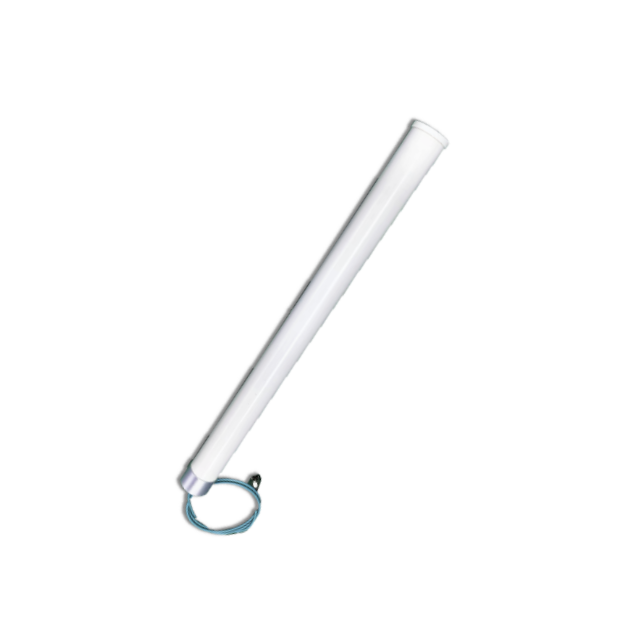

4dBi 360° Omni Directional 5G Fiberglass Antenna GL6940V5

Product Introduction

1. Wide-band 5G Compatibility
   Supports 698-960/1710-2700/3400-4000MHz frequency ranges, covering sub-6GHz 5G bands, 4G/LTE, and wireless systems for versatile connectivity 。

2. Omni-directional Signal Coverage
   With 4dBi gain and 360° horizontal beamwidth, it delivers uniform signal distribution, ideal for wide-area networks and public wireless hotspots 。

3. Durable All-Weather Design
   Constructed with high-quality PVC radome, it withstands -40℃ to 60℃ temperatures and 60m/s wind velocity, ensuring reliable performance in harsh environments 。

4. Easy Installation Options
   Compatible with suction cups and various mounting seats, enabling flexible deployment on rooftops, vehicles, or equipment 。

5. High Power Handling
   Supports up to 50W input power, suitable for base stations, repeaters, and high-output wireless systems 。

Application scenarios

• Public Wireless Hotspots: Deploying reliable outdoor WiFi coverage in parks, plazas, or campuses.

• 5G Small Cell / Base Stations: Enhancing coverage and capacity for 5G NR networks in dense urban or rural areas.

• Fixed Wireless Access (FWA): Providing last-mile broadband connectivity in point-to-multipoint setups.

• IoT/M2M Gateways: Connecting dispersed sensors and devices in smart city or industrial applications.

• Telecom Cabinet Top-Mount: Extending coverage from street cabinets or enclosures.

• Temporary Network Solutions: Rapid deployment on vehicles or portable poles using suction cup mounts.

FAQ

Q: What frequency bands does the GL6940V5 antenna support?
A: It supports three key ranges: 698-960 MHz, 1710-2700 MHz, and 3400-4000 MHz, covering essential 5G NR, LTE, and 3G bands globally.

Q: Is this antenna suitable for permanent outdoor installation?
A: Absolutely. Its PVC radome, IP-rated construction, and operating temperature range (-40°C to +60°C) ensure reliable, all-weather operation.

Q: How is the antenna protected against lightning?
A: It features DC grounding for lightning protection. Ensure it's properly grounded via the mounting hardware during installation.

Q: What type of connector does it use?
A: It uses a standard N-type female connector located at the bottom of the antenna.

Q: How much wind can this antenna withstand?
A: It is rated for wind speeds up to 60 meters per second (m/s) when correctly installed.

Q: What mounting options are available?
A: It's designed for use with suction cups or other standard mounting seats (like poles or masts) via its bottom mounting point.

Q: What is the gain and coverage pattern?
A: It offers 4 dBi gain with a true 360° horizontal beamwidth and a 55° vertical beamwidth for wide, uniform coverage.

Q: What is the maximum power input?
A: The antenna can handle a maximum continuous input power of 50 Watts.
